SawStop 1-3/4HP 1PH 110-120V Contractor Saw with 52" Pro T-Glide Fence System
SawStop 1-3/4HP 1PH 110-120V Contractor Saw with 52" Pro T-Glide Fence System
Contact us for price
Location:Dundee, NY
Available quantity:1
Description
The SawStop Contractor Saw offers versatility and safety in the shop and stability and mobility on the jobsite. It delivers the performance you need with the peace of mind only SawStop’s patented safety system can provide. The SawStop table saw’s unique brake design detects hand or finger contact with the saw blade within milliseconds, instantly stopping and retracting the blade, helping to avoid serious injury. In addition to the groundbreaking safety features, SawStop manufactures one of the most precise saws on the market. The fit, finish and tolerance levels are second to none. Measure once, cut once! The Professional T-Glide Fence System gives added strength and increased precision to the Contractor Saw. Smooth gliding and minimum deflection are just some of the attributes of the T-Glide Fence System. This fence system is resilient enough to handle day to day use in any shop. Includes: 1-3/4 HP Saw with stand, 52" Professional T-Glide Fence System, table extension, two adjustable legs, 10" 40-tooth combination blade, two stamped wings, blade guard assembly, miter gauge, riving knife, blade wrenches and owner’s manual.

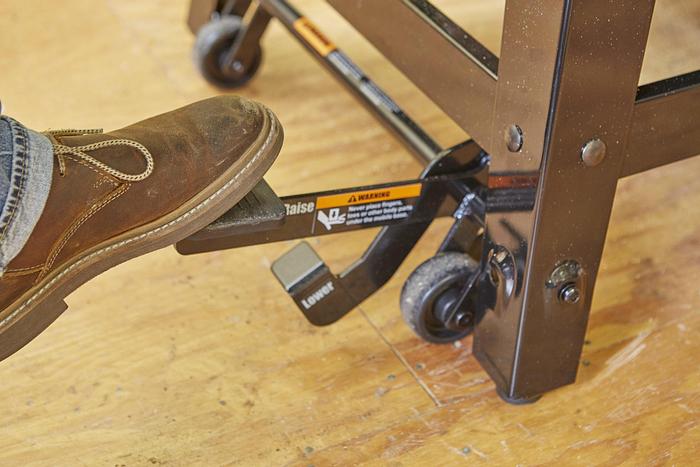

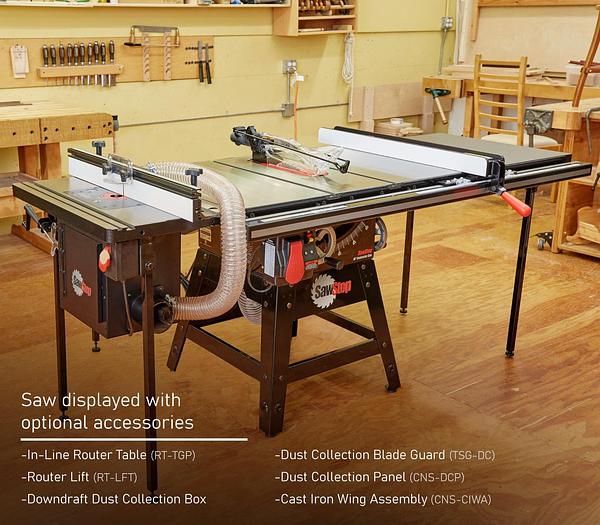

Optional accessories for the SawStop table saw include cast iron wings, 30" outfeed table, replacement brake cartridge for 10" blades, brake cartridge for 8" dado sets, zero-clearance inserts for 10" blades and 8" dado sets, mobile base, and numerous dust-collection accessories, as well as a jobsite cart with 10" wheels that makes the SawStop contractor table saw truly portable.
Specifications
Manufacturer | SawStop |
Model | CNS175-TGP252 |
Condition | New |
Stock Number | CNS175-TGP252 |
52" RIP CAPACITY | 52” T-Glide Fence Assembly |
MOTOR OPTION(S) | (60Hz TEFC) |
OVERALL SAW DIMENSIONS 52in. | 85 1/4" W x 45" D x 34 3/4" H |
MOTOR CONFIGURATION (S) | CNS175: 1.75 HP, 120v, 14 A (user config. to 220v w/optional kit available for purchase). |
SAW BODY FOOTPRINT | 25 3/4" W x 27" D (w/stand installed) |
CAST IRON TABLE | 20″ W x 27″ D |
CAST IRON TABLE | (w/ extension wings):44″ W x 27″ D |
EXTENSION WINGS | 12″ W x 27″ D Stamped Steel (optional cast iron for purchase) |
EXTENSION TABLE | 52 in:40 1/8″ W x 27″ D |
SHIPPING WEIGHT | w/ 52 in fence systems:373 lbs (4 boxes) |
SHIPPING DIMENSIONS (SAW BODY ONLY) | 35" W x 30" D x 20" H |
SHIPPING WEIGHT | 240 lbs (table saw only) |
ASSEMBLED WEIGHTS - W/ 52 in FENCE SYSTEM | 335 lbs |
Blade | 40-tooth, prof. grade, 5/8″ arbor |
BLADE DIAMETER | 10" |
BLADE TILT | Left |
BLABE KERF | 0.118″ (3mm) |
BLADE PLATE THICKNESS | 0.078″ (2mm) |
Max. depth of cut, blade at 0º | 3 1/8″ |
Max. depth of cut, blade at 45º | 2 1/4″ |
Max. rip, left of blade (w/36” or 52” T-Glide Fence) | 12 1/2" |
Max. rip, right of blade (w/52” Fence) | 52 1/2" (w/optional 52" rails) |
Dado Diameter | 8" (requires dado brake cartridge & insert) |
Dado max. width | 13/16" |
Arbor diameter at blade | 5/8" |
Main bearing size | 62mm OD x 30mm ID |
Second bearing size | 52mm OD x 25mm ID |
Table in front of blade (max. elevation) | 10 5/8" |
Table behind blade (max. elevation) | 7 1/8 |
Arbor Runout | 0.001″ Maximum allowable runout |
Table flatness measured diagonally | 0.016″ Maximum gap |
Blade alignment with miter slot | 0.010″ Maximum displacement |
Deviation of miter gauge indexing stops from actual | ±0.25º |
Alignment between splitter and blade | 0.010″ Maximum difference |
Miter slots T-shaped | 3/4″ at top, 1″ at bottom, 3/8″ deep |
Miter slots center | 11 1/8″ center-to-center |
Miter slots info | 5 1/2″ (arbor flange to center of right slot) |
Dust collection port diameter | 4" |
Riving knife / splitter thickness | 0.090" (2.3 mm) |
Blade guard | Standard polycarbonate, extends 1″ right of blade (opt dust guard for purchase) |
Insert | Zero clearance, phenolic core, melamine surfaces |
Hand wheels | 6″ diameter, cast alum. w/ ABS handle |
Belts | V-ribbed belt – static dissipative |
