2017 SCMI SI300 Nova 5.5 Foot Sliding Panel Saw
No longer available
2017 SCMI SI300 Nova 5.5 Foot Sliding Panel Saw
$10,500 (USD)
Location:Dundee, NY
Available quantity:1
Description

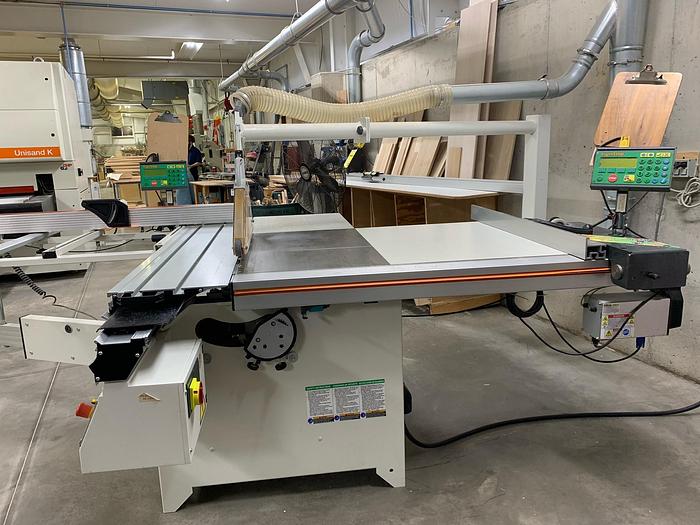

2017 SCMI SI300 Nova 5.5 Foot Sliding Panel Saw

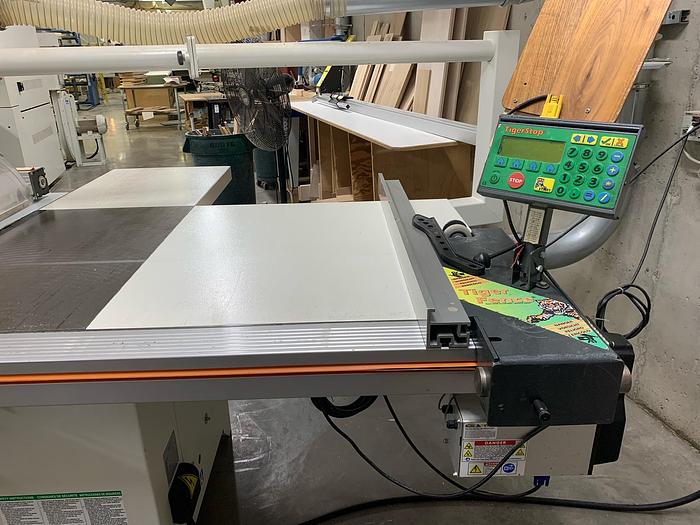

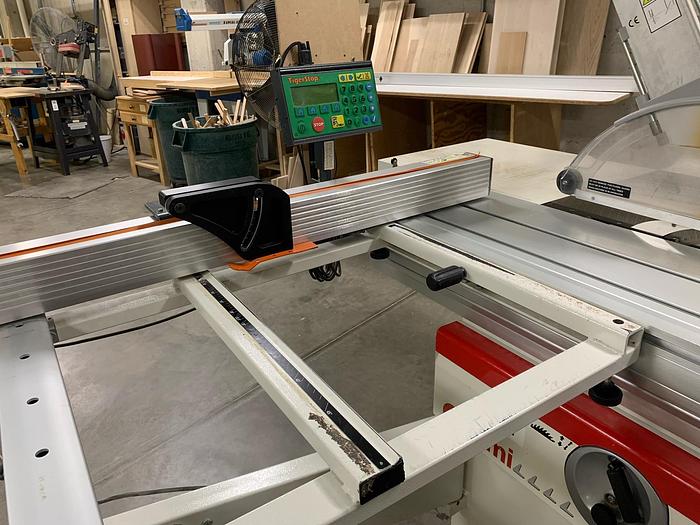

This saw has both the TigerStop, TigerFence as well as the TigerStop system for the crosscut side.
The machine is located in Belleville, PA, and is ready to go anytime.
Everything is in working condition except for the motor brake on the main arbor, the saw works fine without but will coast to a stop
instead of braking.
Specifications
| Manufacturer | SCMI |
| Model | SI300 Nova |
| Year | 2017 |
| Condition | Used |

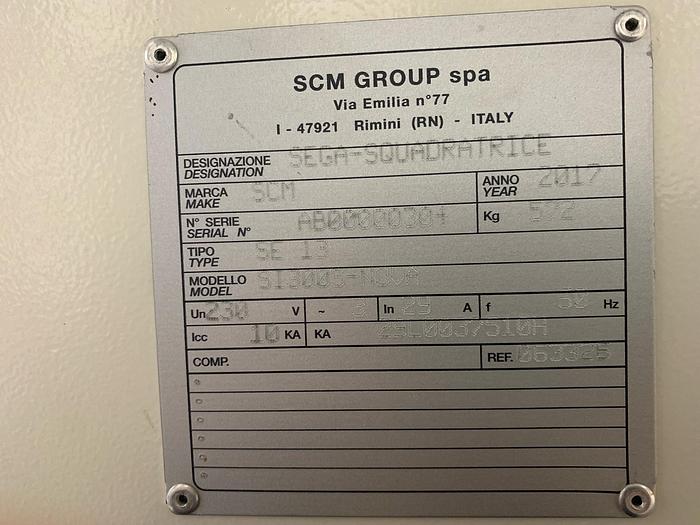

| Serial Number | AB00000304 |
| Motor horsepower (Main/Scoring) | 9 HP / 1 HP |
| Max. length of crosscut with scoring | 1600mm (62.9”) |
| Dust outlets – main/overarm guard | 120mm/65mm (4”/2.5”) |
| Overall dimensions (full stroke w/over guard) | 148” x 135” x 61” |
| Scoring Motor Horsepower | 1 HP |
| Fixed table size | 31” x 36.4” |
| Sliding table size | 12” x 61” |
| Height of worktable | 33.5” |
| Main blade diameter/arbor | 315mm/1” |
| Shipping weight | 813kg (1,800 lbs) |
| Net weight | 760kg (1,675 lbs) |
| Dust extraction | 850CFM |
| Scoring blade diameter/arbor | 120mm/3/4"” |
| Arbor speed – main/scoring | 4,800/9,600RPM |
| Rip capacity | 1270mm (50”) |
