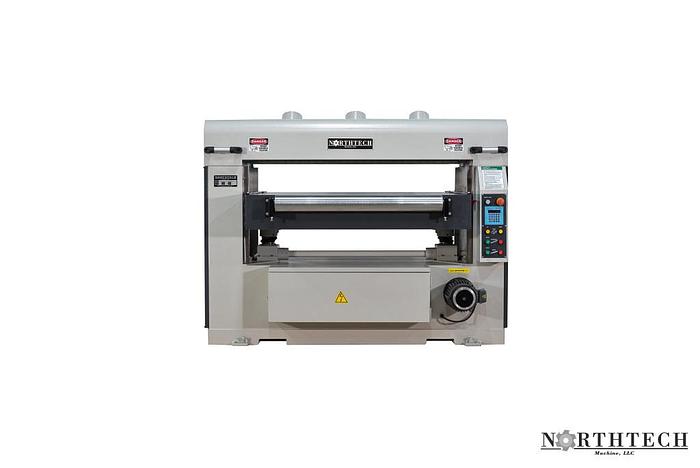

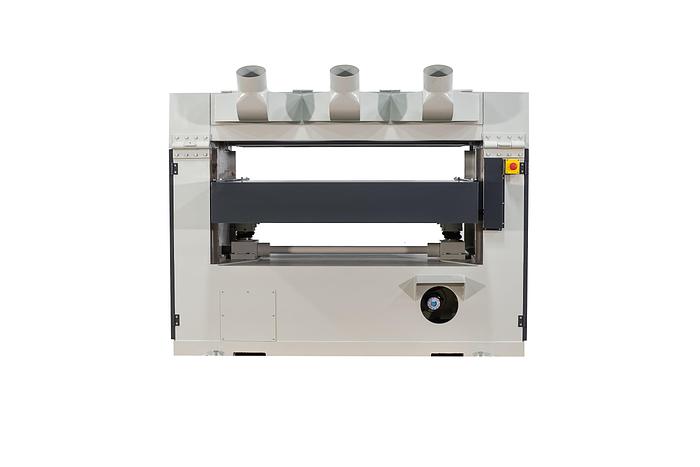

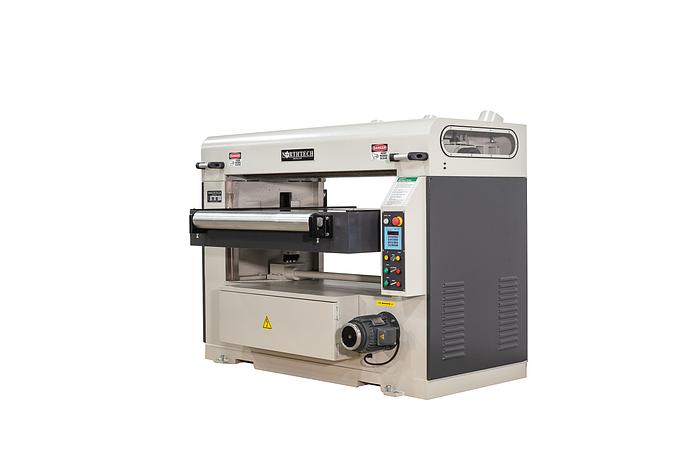

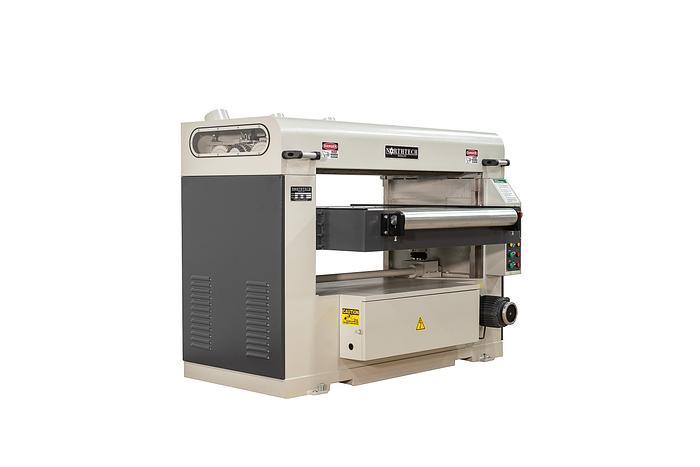

Northtech NT-1320HCVS 52'' Single Surface Planer
Northtech NT-1320HCVS 52'' Single Surface Planer
Contact us for price
Location:Dundee, NY
Description
The NT 1320-50 is our 50HP Single Surface Planer with 52″ working width. This planer is our biggest single surface planer that we stock. It has a heavy duty cast iron base, oversized column bed supports and spring loaded chip breakers. The 1320 comes standard with powered digital thickness control, independent feed start/stop, independent cutterhead start/stop and inverter speed control. It also comes standard with limit switches to restirct head access while on, front and rear emergency stop buttons, and anti kick back fingers for added safety. The corrugated sectional infeed rollers with smooth non marking outfeed rollers coupled with integrated bed rollers provide smooth part feeding during heavy stock removal operations. Unlike many competitive models of single surface planers, all Northtech feed rollers are synchronized to turn at the same speed.
Specifications
Manufacturer | Northtech |
Model | NT-1320HCVS |
Condition | New |
Stock Number | NT-1320HCVS |
TOP HEAD HP | 50 Hp. |
VOLTAGE, FREQUENCY | 230/460 Volt 60HZ |
PHASE | 3 Phase |
AMP REQUIREMENT | 67/134 Amps |
FEED HP | 3 HP |
FEED SYSTEM | (4) Top Powered Rollers (4) Bottom Powered Rollers |
FEED SPEED RANGE | 10-30 FPM |
VARIABLE FEED SPEED | Manual Clutch Adjustment |
ELEVATION HP | 2 HP |

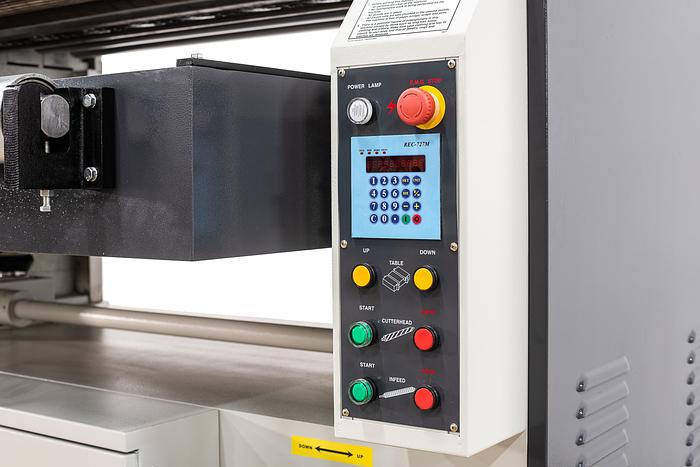

ELEVATION STYLE | REC 727M Digital Readout |
ELEVATION SYSTEM | (2) Post Jack Screws |
TOTAL MACHINE HP | 55 HP |
APPROVED ELECTRICAL PARTS | CE Approved Components |
DUAL VOLTAGE MOTORS | 230/460 Volt |
CONTROL VOLTAGE | 110 Volt |
PROGRAMABLE | Elevation |
PASS-LINE | Down Position 37-13/16'' Up Position 45-1/4'' |
MIN. WORKING LENGTH | 14-3/4'' |
MAX. WORKING WIDTH | 51-3/4'' |
MIN. WORKING THICKNESS | .36'' |
MAX. WORKING THICKNESS | 7.82'' |
CUTTER HEAD RPM | 3672 RPM |

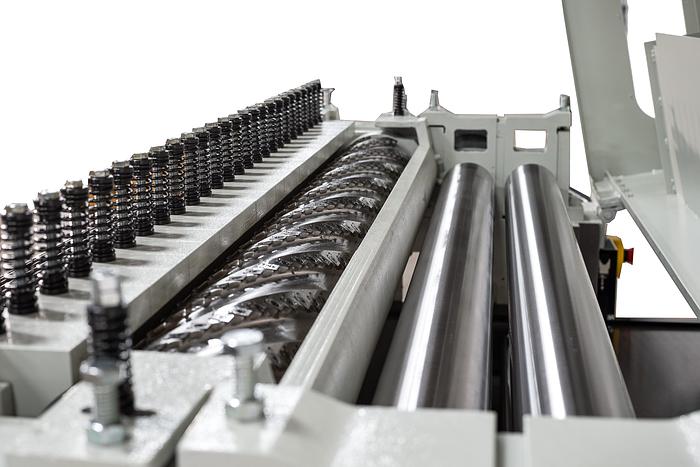

HEAD TYPE | Spiral Helical Cutter Head |
CUTTER HEAD DIMENSIONS | 5-1/2'' x 52'' |
CUTTER HEAD MATERIAL | Alloy Steel |
ROWS OF CUTTERS | 8 Rows With 52 Inserts Each |
NO. OF INSERTS | 416 Inserts |
INSERT SIZE | 15 x 15 x 2.5 MM |

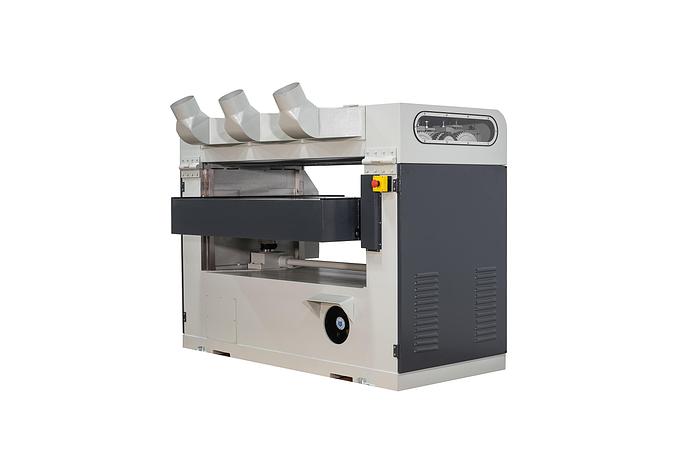

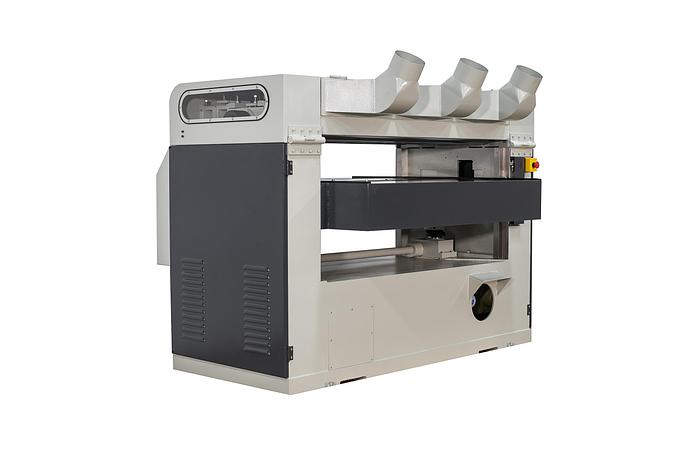

DUST PORT SIZE OUTLET | (3) 6'' Ports |
DIGITAL DISPLAY | Elevation Controller |
POWERED ROLLERS | (4) Top (4) Bottom |

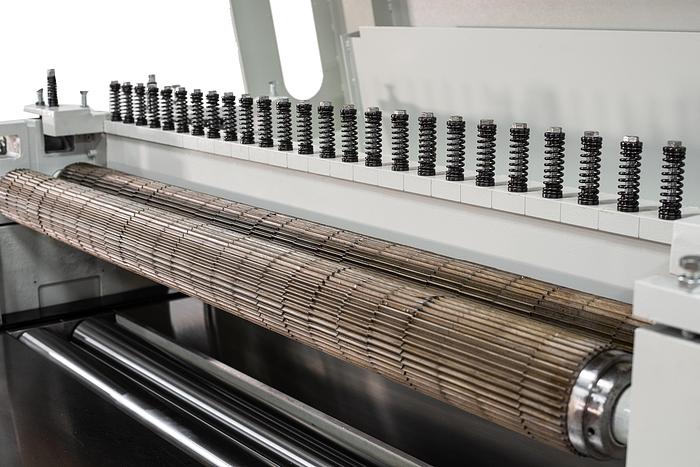

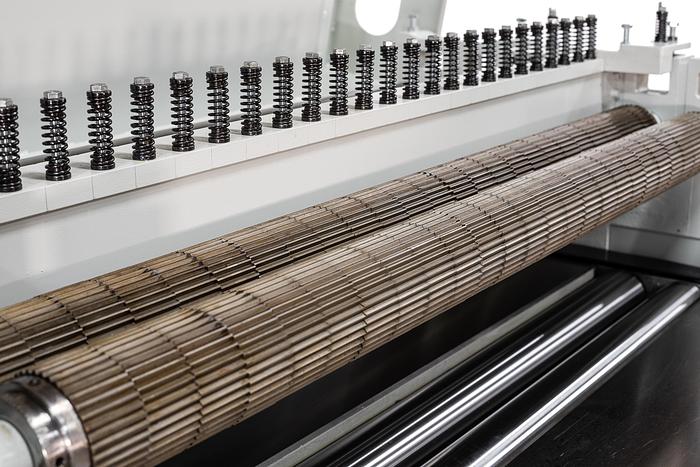

HOLD DOWN STYLE | (26) 2'' Chip Breakers 1 Pressure Plate |
REAR E STOP | Push Button |
GUARDING | Full Enclosure |
FRAME CONSTRUCTION | Cast Construction |
DECIBEL RATING | 68 dB |
NET WEIGHT | 6510 Lbs. |
GROSS WEIGHT | 6917 Lbs. |
MACHINE DIMENSIONS | 76-1/2'' x 59-1/2'' x 61-1/2'' |
PACKAGING DIMENSIONS | 82'' x 66'' x 67'' |
