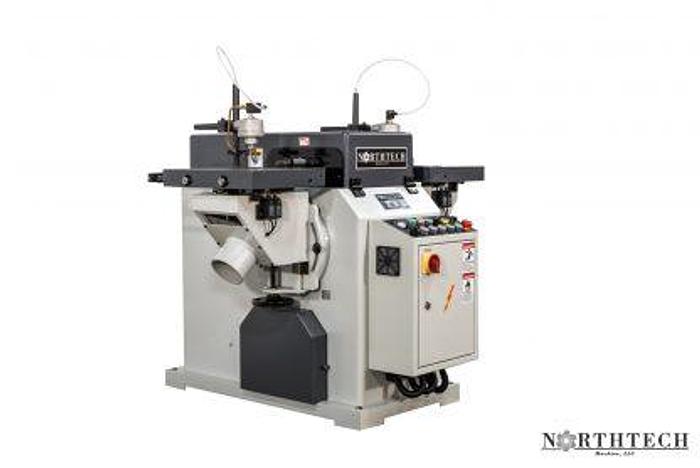

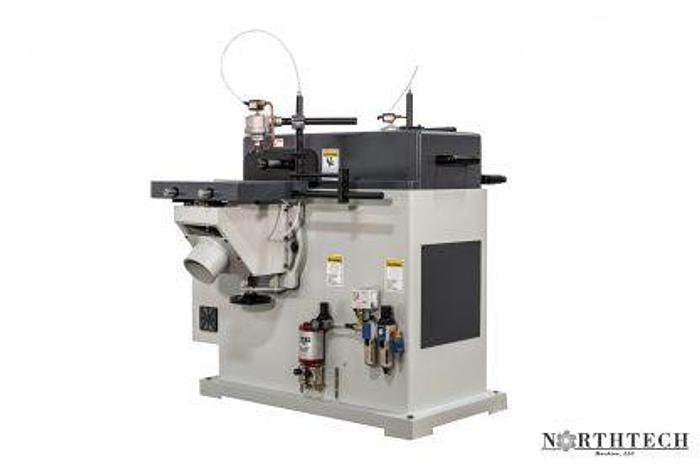

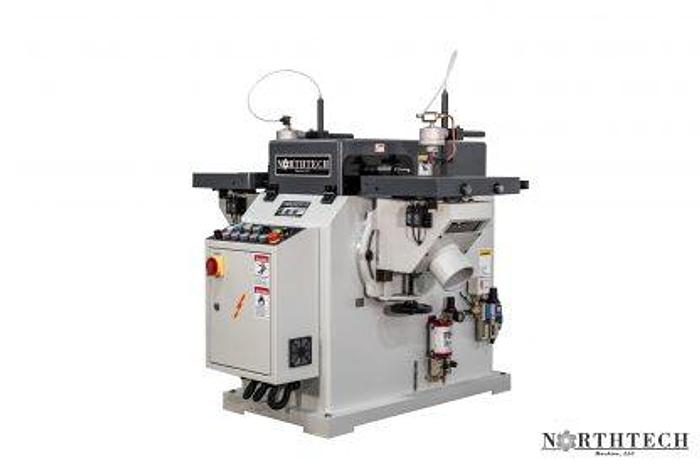

Northtech NT-RSM120 Round Slot Mortiser
orCall +1 (607) 678-4374
Description

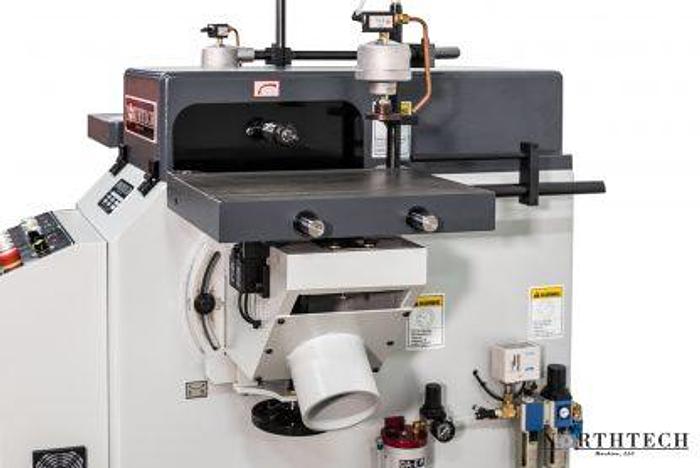

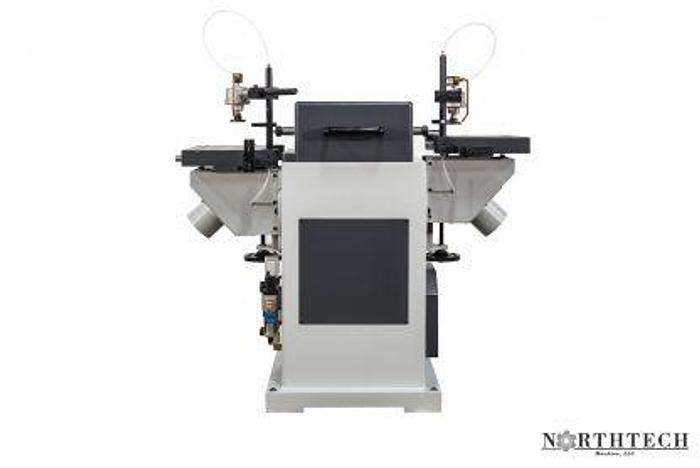

Northtech Round Slot Mortisers use an oscillating round cutter to cut an adjustable length slot with rounded ends. The NT-RSM120 is designed with (2) stations, each with its own pneumatic clamp and auto indexing table for higher production rates. Slot depth is individually adjustable on both tables and can be equipped with optional reference lasers for quicker size changes.
Specifications
| Manufacturer | Northtech |
| Model | NT-RSM120 |
| Condition | New |
| Stock Number | NT-RSM120 |
| MACHINE HP | 3.5 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60 Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 11.8/5.9 Amps |
| 1ST STATION | 16MM Collet 10MM Bit |
| 2ND STATION | 16MM Collet 10MM Bit |
| SPINDLE RPM | 11445 RPM |
| ELEVATION STYLE | Manual Hand Wheel |
| ELEVATION SYSTEM | Jack Screw |
| TOTAL MACHINE HP | 3.5 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 220 Volt |
| PASS-LINE | 36'' Center of Bit |
| MAX. WORKING THICKNESS | 4'' Max Clamp Thickness |
| MAX DEPTH MORTISE | 2'' |
| MAX WIDTH MORTISE | 4-1/4'' |
| ARBOR RPM | 11445 RPM |
| TOOLING | 16mm x 10MM x 100MM Mortising Bit |
| OSCILLATION STYLE | Coupling Rod |
| OSCILLATION RATE | 6.6/400 Stroke Per Minute |
| CLEANING SYSTEM | Jet Blow Off |
| VERTICAL TRAVEL | 4'' Table Adjustment |
| DUST COLLECTION REQUIREMENT | 1362 CFM Total |
| DUST PORT SIZE OUTLET | (2) 5'' |
| HOLD DOWN STYLE | Pneumatic Clamp |
| CFM AIR SUPPLY REQUIREMENT | 3/8'' Line @ 90 PSI |

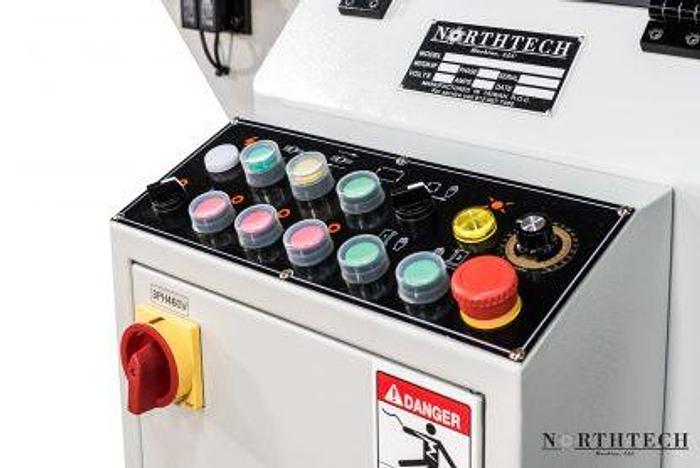

| EMERGENCY STOP | Push Button |
| OPERATION STYLE | Auto/Manual |
| FENCE TYPE | Fixed |
| FENCE DIMENSIONS | 3/16'' x 17-1/2'' |

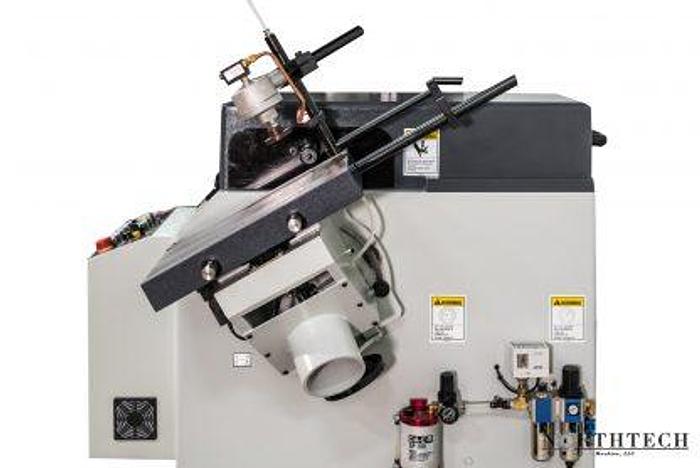

| TILT-ABLE | 20 Degrees on Table |
| WORKTABLE DIMENSIONS | (2) 11-3/4'' x 17-1/2'' |
| DECIBEL RATING | 74 dB |
| NET WEIGHT | 1193 Lbs. |
| GROSS WEIGHT | 1360 Lbs. |
| MACHINE DIMENSIONS | 52-1/2'' x 50'' x 45'' |
| PACKAGING DIMENSIONS | 54'' x 53'' x 56'' |
