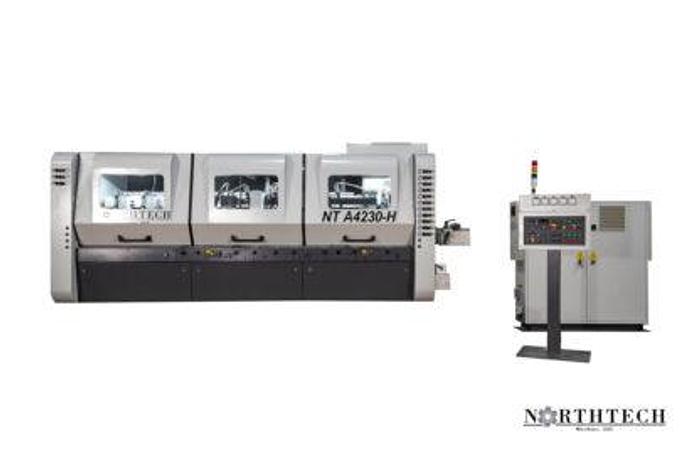

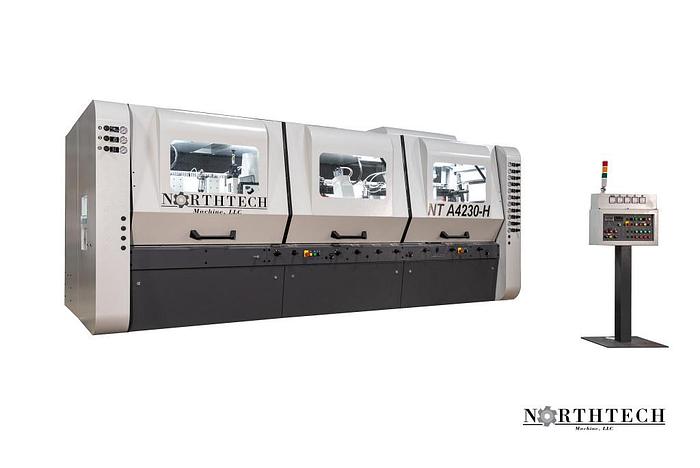

Northtech NT-A4230-H320 MOULDER 4 HEAD
orCall +1 (607) 678-4374
Description
The NT A4230-H is a 4 head 320fpm high speed moulder. The single head per side configuration can be equipped with heads and high HP making it a better option to outdated 4 sided planers. The 6″ x 9″ capacity moulder with a 4 head single side configuration provides a small footprint and high dimensional stock capacity. Features such as chrome table, Siko mechanical readouts, extra bed rollers, oversized infeed, automatic bed oiler and independent spindle motors powering 50mm(2″) 6000RPM Spindles are standard. With optional larger capacities, oil cooled infeeds and speeds up to 300M/MIN (960FPM), the A series is a premium industrial grade moulder able to accommodate any customers moulding needs.
Specifications
| Manufacturer | Northtech |
| Model | NT-A4230-H320 |
| Condition | New |
| MACHINE HP | 171 HP |
| REVERSIBLE MOTOR | Feed |
| VOLTAGE, FREQUENCY | 230/460 Volt 60 Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 370/185 Amps |
| CONFIGURATION | B - L - R - T |
| 1ST SPINDLE | 40 HP Bottom Horizontal |
| 2nd SPINDLE | 25 HP Right Vertical |
| 3rd SPINDLE | 25 HP Left Vertical |
| 4th SPINDLE | 50 Hp. Top Horizontal |
| SPINDLE DIAMETER | 1-13/16'' |
| SPINDLE RPM | 6000 RPM |
| UNDER THE NUT CAPACITY | Horizontal 10'' Vertical 7'' |
| FEED HP | 50 HP |

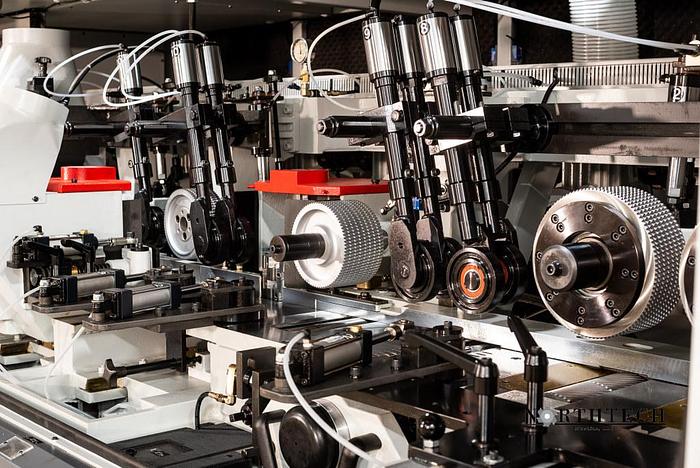

| FEED SYSTEM | Knurled Feed Rollers / Polyurethane Rollers |
| DRIVE SYSTEM | Gear Box / Carden Shaft |
| FEED SPEED RANGE | 32-330 FPM |
| VARIABLE FEED SPEED | Inverter Controlled |
| REVERSIBLE FEED | Yes |
| ELEVATION HP | 1 HP |
| ELEVATION STYLE | Raise Lower Switch |
| ELEVATION SYSTEM | (3) Jack Screws / Guides |
| TOTAL MACHINE HP | 171 HP |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 110 Volt |
| ASSISTED START | Wye Delta Heads 1-4 |
| PASS-LINE | 36-1/4'' |
| CUTTING ENVELOPE | 6-1/4'' x 9'' |
| MIN. WORKING LENGTH | 32'' Single Feed |
| MIN. WORKING WIDTH | 7/16'' |
| MAX. WORKING WIDTH | 9'' |
| MIN. WORKING THICKNESS | 1/4'' |
| MAX. WORKING THICKNESS | 6-1/4'' |

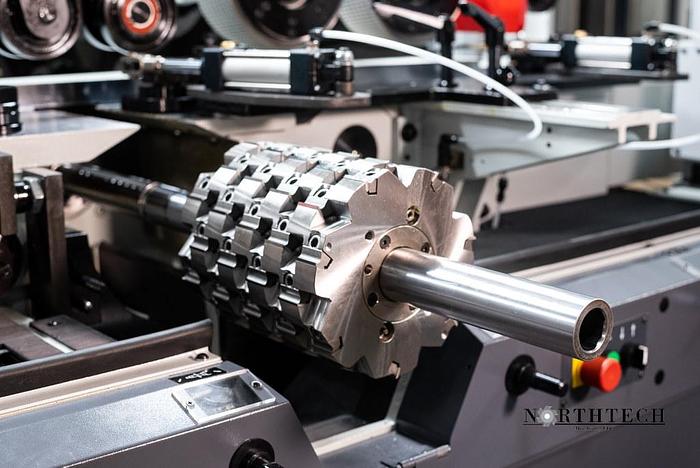

| TOOLING | Helical Insert Heads |
| ROWS OF CUTTERS | 14 Rows |
| NO. OF INSERTS | 9 '' Head (7) Rows of (4) Inserts (7) Rows of (5) Inserts 4'' Head (14) Rows of (2) Inserts |
| INSERT SIZE | 30 x 12 x 2.5 MM |
| DIGITAL DISPLAY | Feed Speed |
| POWERED ROLLERS | (15) Powered Rollers |
| PRESSURE SHOES | (2) 4th Head |
| HOLD DOWN STYLE | Pneumatic |
| FLR INCLUDED | Filter, Lubricator, Regulator Filter, Lubricator, Regulator |
| CFM AIR SUPPLY REQUIREMENT | 3/8'' Line @ 90 PSI |
| EMERGENCY STOP | (3) |

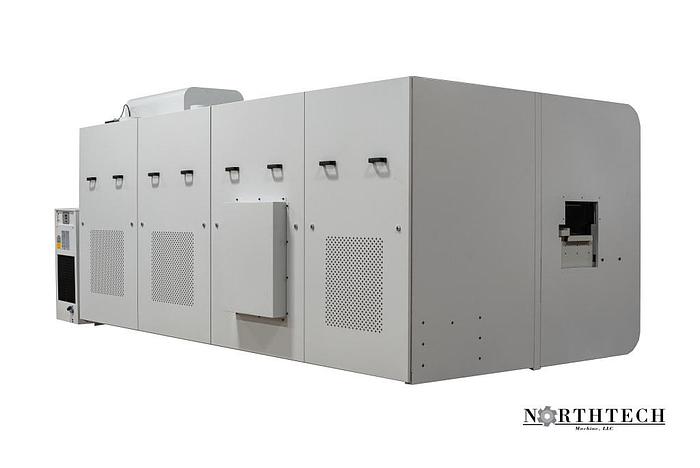

| GUARDING | Full Enclosure |
| OPERATION STYLE | Auto / Manual |
| GREASE MANIFOLD | (3) Grease Manifolds |
| OILER | (1) Auto Bed Lube |
| FENCE TYPE | Adjustable Liquid Cooled |
| FENCE DIMENSIONS | 83-1/2'' x 1-1/2'' |
| MICRO FENCE | Dial Indicator |
| FRAME CONSTRUCTION | Cast / Steel Construction |
| WORKTABLE DIMENSIONS | 10-3/4'' x 189'' |
| TABLE CONSTRUCTION MATERIAL | Cast with Chromed Finish |
| INFEED TABLE LENGTH | 27-3/4'' |
| NOISE REDUCTION BED PLATE FINGERS | 1st Head |
| MEASURING METHOD | Siko Counters |
| DECIBEL RATING | 81 |
| NET WEIGHT | 20000 |
| GROSS WEIGHT | 21000 |
| MACHINE DIMENSIONS | 191'' x 91'' x 82'' |
| PACKAGING DIMENSIONS | 228'' x 90'' x 77'' |
