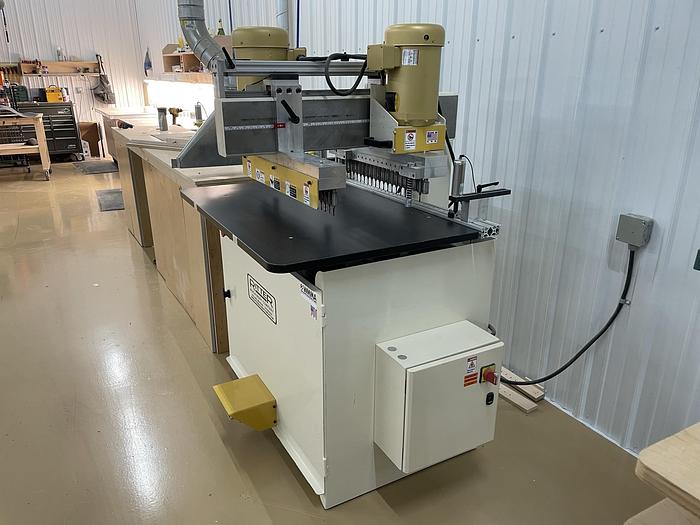

Ritter R46 – 46 Spindle Line Boring Machine

This machine was bought new in 2020 but due to outsourcing more products, we are going to a smaller machine.

This was used for about 6 kitchen sets.

(2) 3 HP Spindle Drive Motors, TEFC

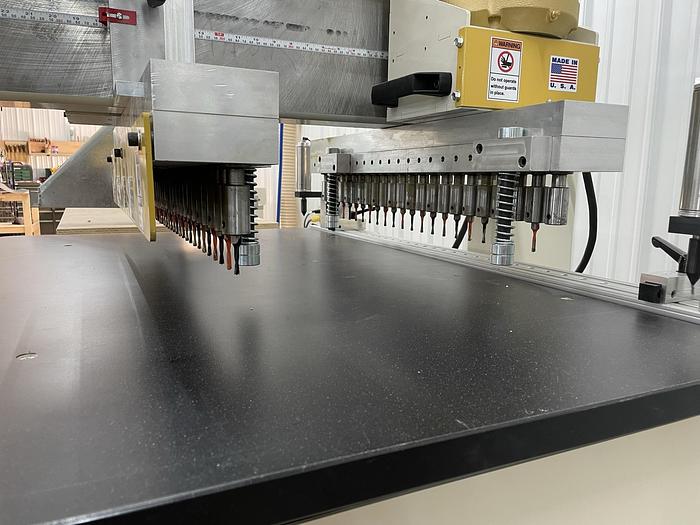

(2) 23-Vertical Gear Driven Spindle Rows

32mm Spindle Centers

10mm Bored Collets

(24) Right Hand, (22) Left Hand

4″-24″ Centers Between Rows

Digital Readout Front Head Position Display

Precision Linear Head Ways

(3) Quick Set Drill Head Position Stops

Rear Drill Row Nesting

48″ Back Fence with (2) Stops

(2) Air Index Pins

(2) Position Drill Depth Stop Turret

30″ X 48″ Work Table Surface

Wired 3-Phase 240/480 Volt, 60 Hz.

Foot Actuated Boring Cycle

Tooling Not Included

Crated Dimensions: 54″ X 54″ X 76″ and 1,341 Lbs

Designed and Manufactured in the USA
