Jet JDP-17 Floor Standing Drill Press
Jet JDP-17 Floor Standing Drill Press
Contact us for price
Location:Dundee, NY
Available quantity:1
orCall +1 (607) 678-4374
Description

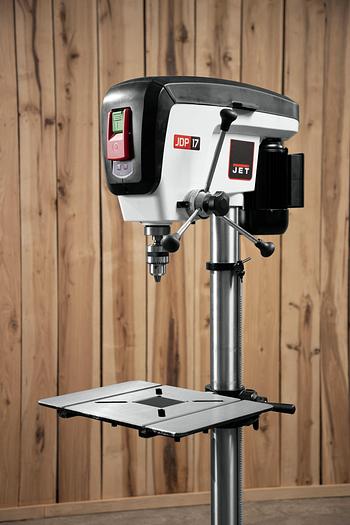

Introducing the new JET JDP-17, 17” Drill Press. From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping. CSA Certified.
Features

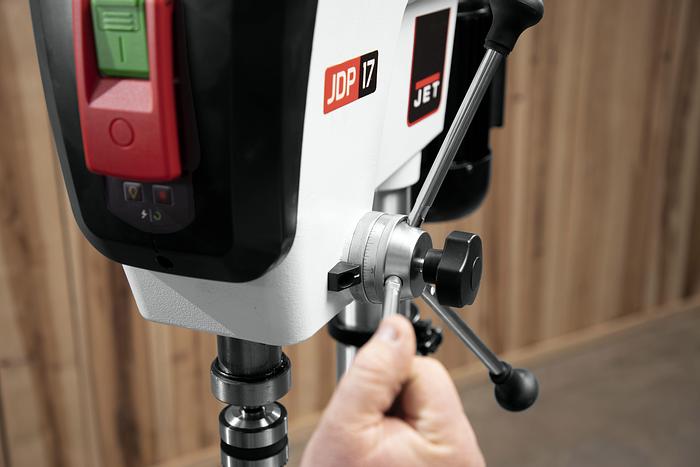

- Integrated depth stop makes repetitive drilling quick and easy
- Large cast iron base provides stability

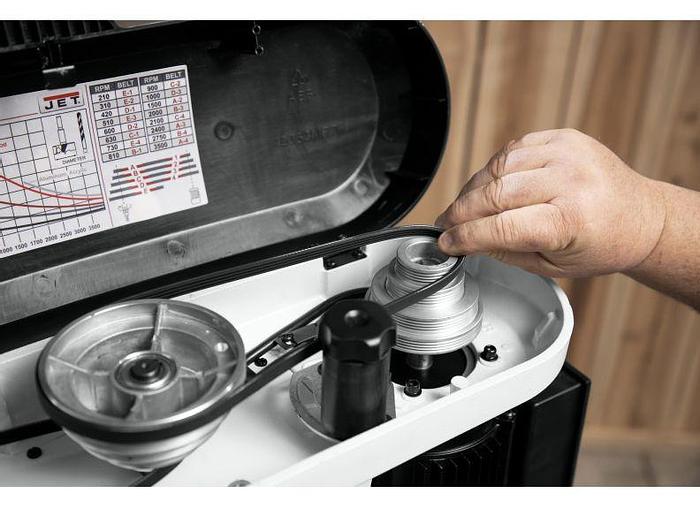

- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button
- Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
- Replaceable MDF table insert

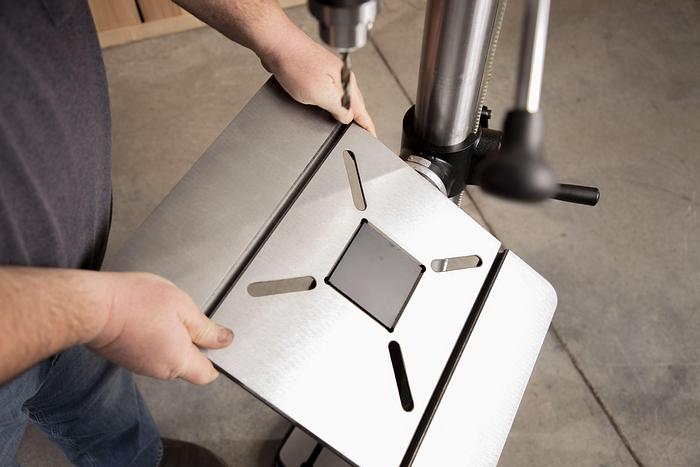

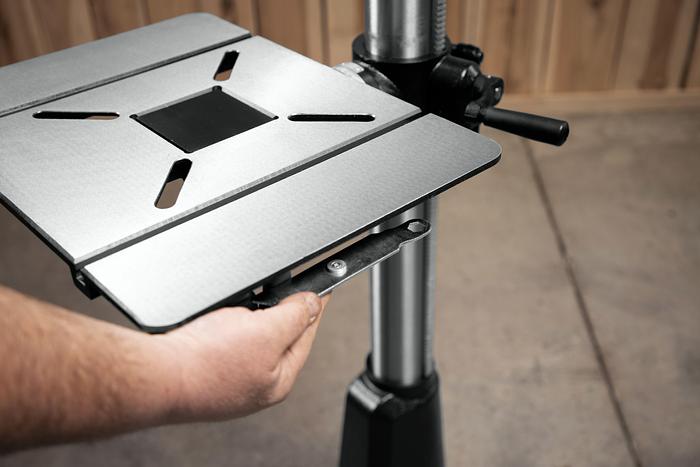

- Table edge lip designed to make clamping easy

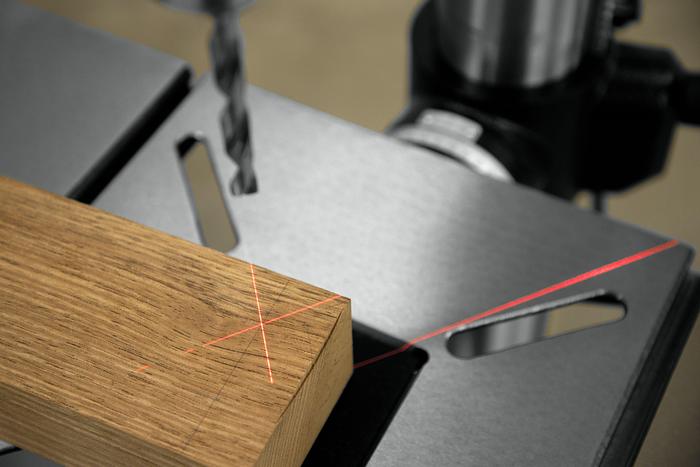

- Xacta-X laser system easily identifies the drill center
Specifications
| Manufacturer | Jet |
| Model | JDP-17 |
| Condition | New |
| Stock Number | 716300 |
| Assembled Machine Dimensions (L x W x H) (In.) | 28-1/2 x 19 x 65 |
| Chuck Distance to Base (In.) | 42-7/8 |
| Chuck Distance to Table (In.) | 25-7/8 |
| Chuck Size (In.) | 5/8 |
| Column Diameter (In.) | 3-5/32 |
| Motor Power (HP) | 3/4 |
| Spindle Distance to Base (In.) | 46-1/2 |
| Spindle Distance to Table (Max.) (In.) | 30 |
| Table Size (L x W) (In.) | 14 x 19 |
| Weight (Lbs.) | 187 |
| Spindle Travel (In.) | 5 |
| Style (Type) | Floor standing Model |
| Swing (In.) | 16-7/8 |
| Number of Spindle Speeds | 16 |
| Recommended Circuit Size (Amps.) | 15 |
