Omga RN 900 RADIAL ARM SAW
Description

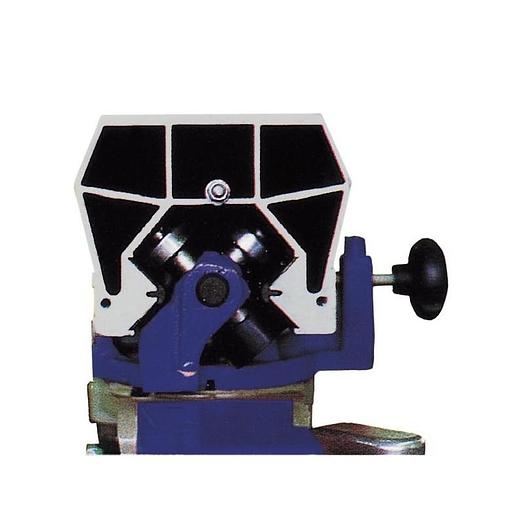

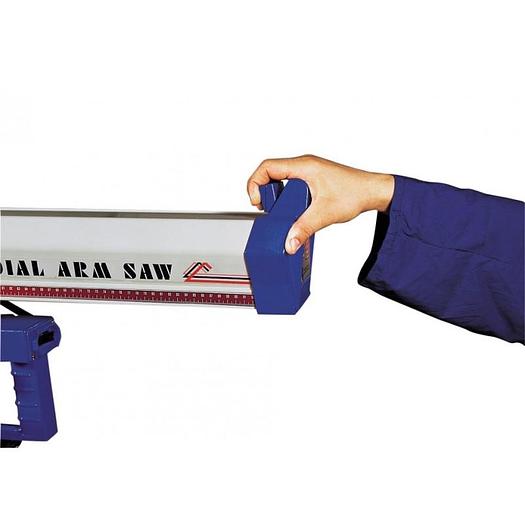

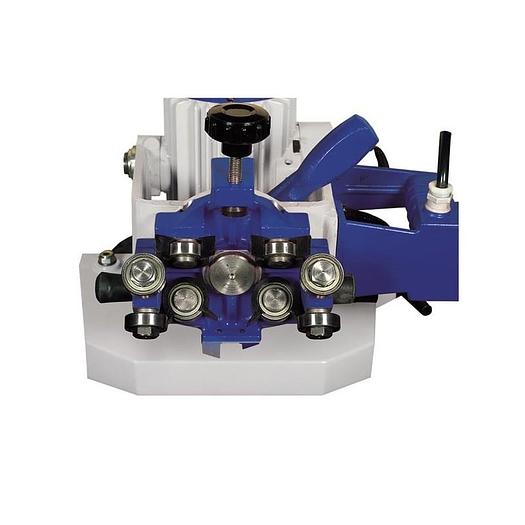

The precision of these radial arm saws is identified by the following characteristics: Saw carriage slides on 8 bearings, having dust scrapers which guarantees complete cleanliness of both the interchangeable steel tracks and the bearing. Self-centering locking in the main angles position of the arm, the motor and the carriage with the possibility of manual locking at all intermediate angles. Easy and extremely practical unlocking of the arm rotation on the front. Swiveling and tilting on the vertical and horizontal axes. These machines are especially suitable for furniture manufacturers, frame makers, sawmills and carpentry shops. Standard overload protection with no-volt coil, automatic head reversal and motor brake.
OPTIONAL ACCESSORIES
Dado Head Guard 12" x 2 3/8"
Roller Table 6' X 24" RH
Roller Table 6' X 24" LH
14" ATB Saw Blade w/Keyway
Specifications
| Manufacturer | Omga |
| Model | RN 900 |
| Condition | New |
| Max. Depth of Cut 45 Deg. | 3 3/16" |
| Max. Depth of Cut -90 | 4 1/2" |
| Motor Power | 5 |
| Saw Bore | 1" |
| Saw Diameter | 14" |
| Arbor Speed RPM | 3200 |
| Bevel Positive Stops | 0-45 |
| Cross Cut Capacity | 35 5/16" |
| Table Size | 32"x46" |
| Miter Positive Stops | 45-0-45 |
| Overall Dimensions | 54"x46" |
| Ripping Capacity | 44 1/2" |
| Shipping Weight Lbs. | 412 |
| Crated Dimensions | 63"x20"x43" |
| Max. Dado Capacity | 1 1/2" |
