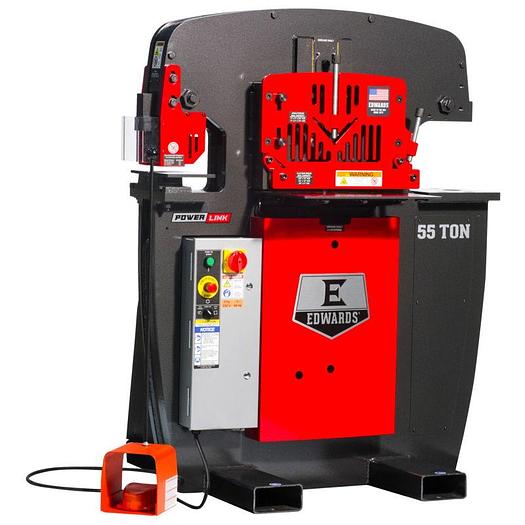

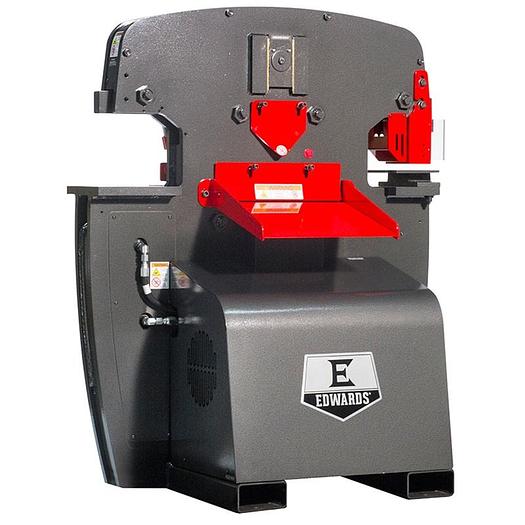

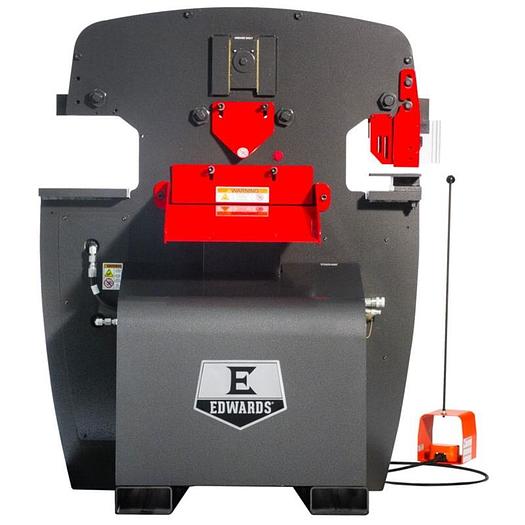

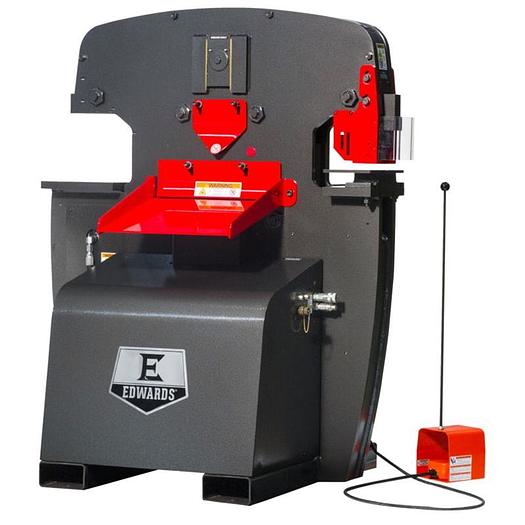

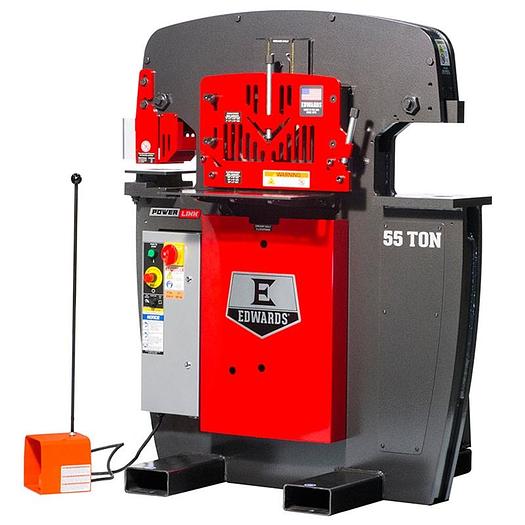

Edwards 55 Ton Ironworker

Our Best Seller

• Four Available Workstations
• Universal Open Tooling Station
• Electric Stroke Control
• ANSI B11.5-1988R(02) Compliant
• ETL/UL Approved Controls

The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional Tooling Accessories.

The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.

PUNCH

Rating 55 Tons

Max. Capacity 1-1/16" Dia. in 5/8" A36

(65,000 PSI Tensile)

Stroke 1-1/4"

Throat Depth 7-1/2"

Open Height 8-1/8"

Shut Height 6-7/8"

Work Height 36-9/16"

FLAT BAR SHEAR

Max. Capacity 3/8" x 14"

1/2" x 12"

3/4" x 4"

Max. Round 7/8"

Max. Square 7/8"

Work Height 34-1/2"

ANGLE SHEAR

Max. Capacity 3" x 3" x 3/8"

4" x 4" x 1/4"

Work Height 39-7/8"

OPTIONAL COPER NOTCHER

Max. Capacity 2-1/2" x 4" x 5/16"

Work Height 39-1/2"

OPEN STATION

Throat Depth 11-3/16"

Open Height 8-1/8"

Shut Height 6-7/8"

Stroke 1-1/4"

Work Height 34-1/2"

GENERAL SPECIFICATIONS

Standard Motor 5 HP 3~ 208 V or 230 V

1725 RPM 14 A

Optional Motors 5 HP 3~ 460 V

1725 RPM 7 A

5 HP 3~ 575 V

1725 RPM 6 A

5 HP 1~ 230 V

1725 RPM 23 A

Hydraulic Pump 3-1/2 GPM - 1 Stage

Valve Pressure 2500 PSI

Reservoir 7 Gallons

Cylinder 2-1/2" Ram

DIMENSIONS

Height 55-1/4"

Width 44-3/8"

Depth 36-1/8"

Shipping Weight 2480 lb
