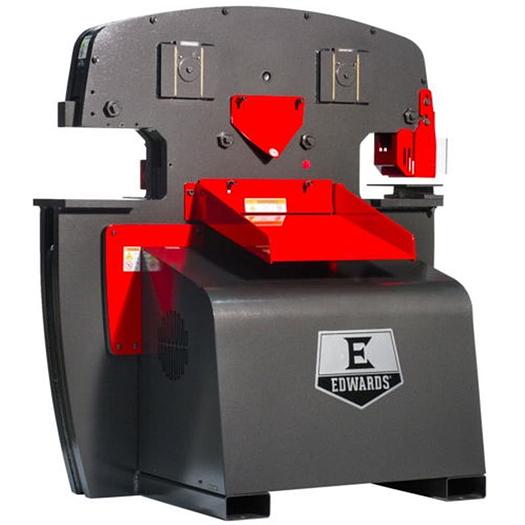

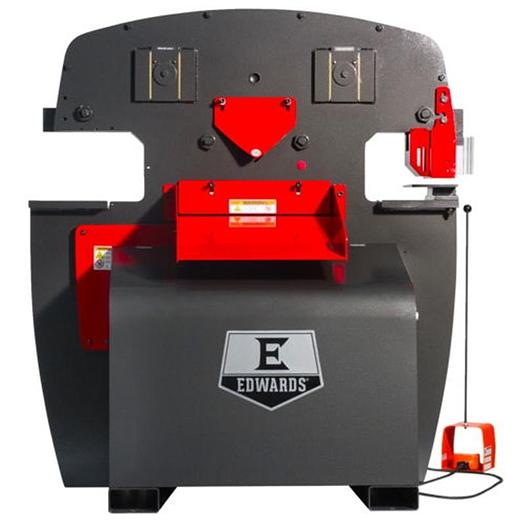

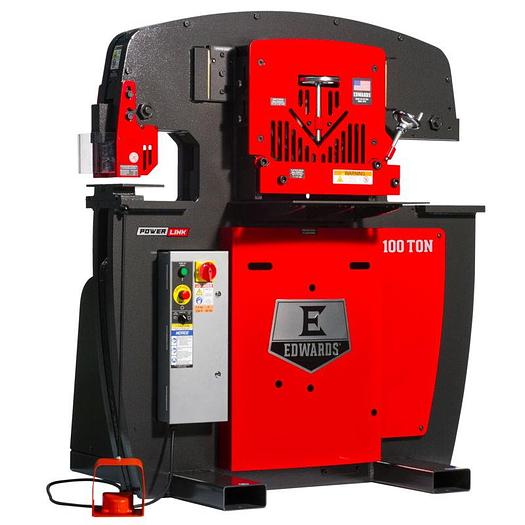

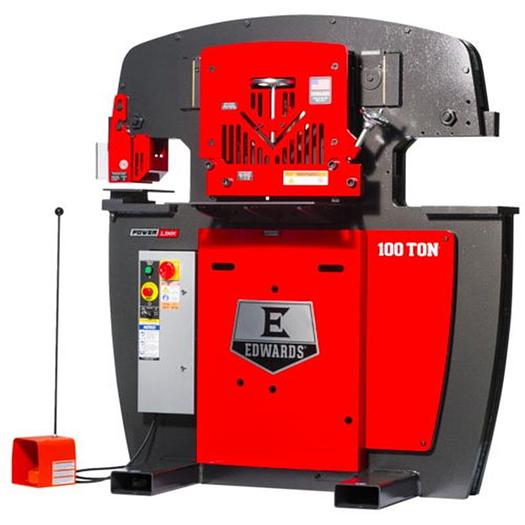

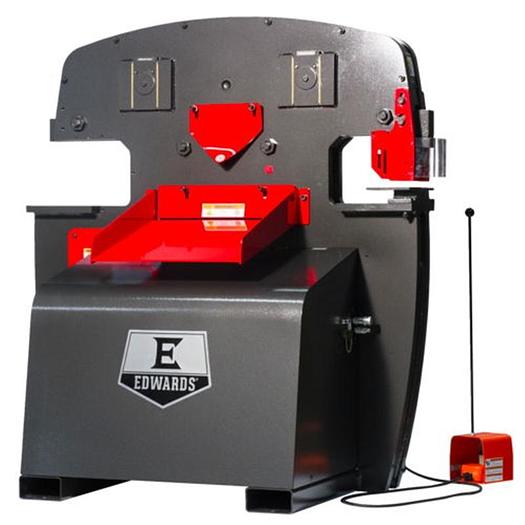

Edwards 100 Ton Ironworker

The Workhorse

• Four Available Workstations
• High Capacity Angle Shear
• Universal Open Tooling Station
• Electric Stroke Control
• ANSI B11.5-1988R(02) Compliant
• ETL/UL Approved Controls

If you're looking for versatility and power, the Edwards 100 Ton Ironworker is perfect for your shop. Standard features include a Punch Assembly, a 14" wide Flat Bar Shear, a high capacity Angle Shear and a universal open tooling station designed for optional Tooling Accessories allowing you to select the perfect tool for your needs.

The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.

PUNCH

Rating 100 Tons

Max. Capacity 1-1/16" Dia. in 1" A36

(65,000 PSI Tensile)

Stroke 1-13/16"

Throat Depth 11"

Open Height 8-3/4"

Shut Height 6-15/16"

Work Height 39-1/16"

FLAT BAR SHEAR

Max. Capacity 3/4" x 14"

1" x 10"

Max. Round 1-1/4"

Max. Square 1-1/4"

Work Height 37"

ANGLE SHEAR

Max. Capacity 6" x 6" x 1/2"

Work Height 43-15/16"

OPTIONAL COPER NOTCHER

Max. Capacity 2-1/2" x 6" x 1/2"

Work Height 42"

OPEN STATION

Throat Depth 14-3/4"

Open Height 8-3/4"

Shut Height 6-15/16"

Stroke 1-13/16"

Work Height 37"

GENERAL SPECIFICATIONS

Standard Motor 7.5 HP 3~ 208 V or 230 V

1765 RPM 22 A

Optional Motors 7.5 HP 3~ 460 V

1765 RPM 11 A

7.5 HP 3~ 575 V

1770 RPM 8 A

5 HP 1~ 208 V or 230 V

1725 RPM 23 A

*7.5 HP 1~ 230 V

1765 RPM 36 A

*Required for 1~

Hydraulic Accessory Pack

Hydraulic Pump 10-1/2 GPM - 2 Stage

Valve Pressure 3500 PSI

Reservoir 17 Gallons

Cylinder 3-1/2" Ram

DIMENSIONS

Height 61-11/16"

Width 56-1/8"

Depth 45"

Shipping Weight 4650 lb
