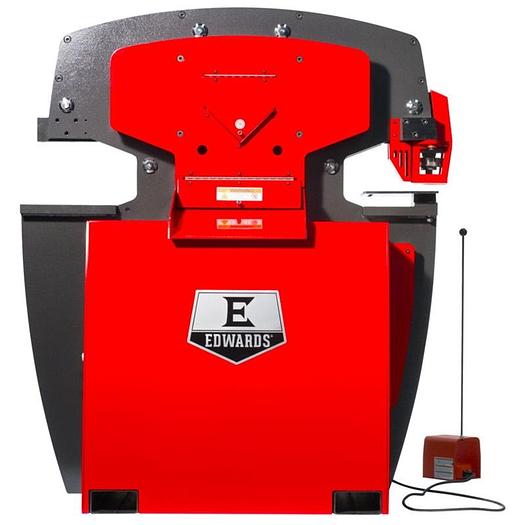

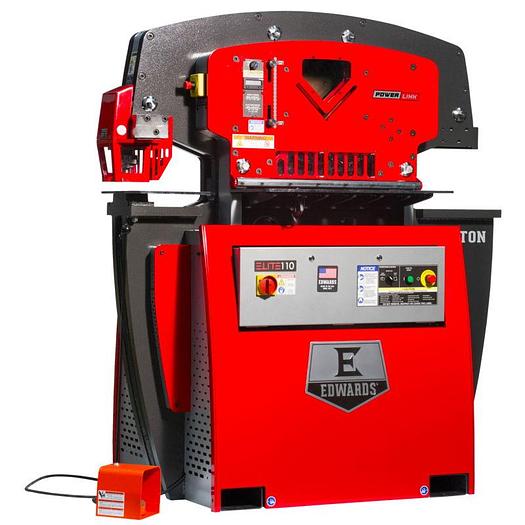

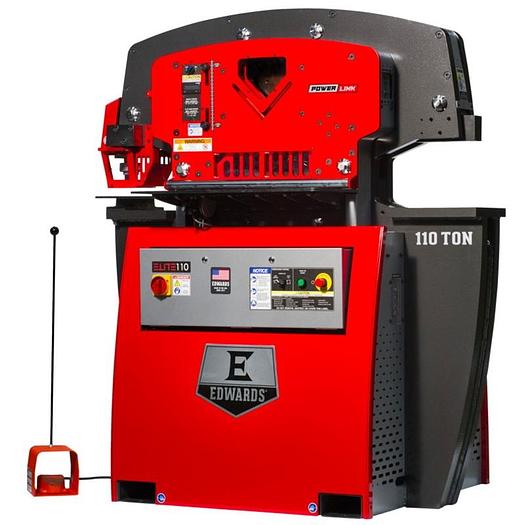

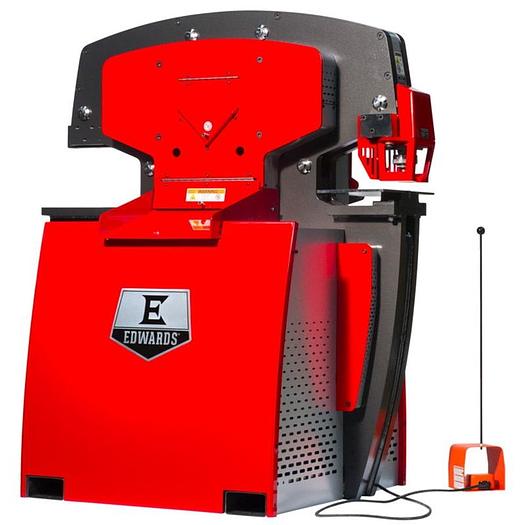

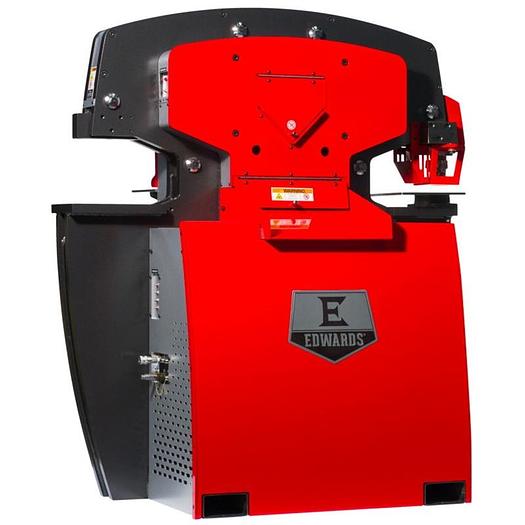

Edwards 110 Ton Elite

The Superior 4 Station Ironworker

• Universal Open Tooling Station
• ANSI B11.5-1988R(02) Compliant
• ETL/UL Approved Controls
• ELITE Integrated Features:
• Hydraulic Hold-Down
• E-Stop / Lockout-Tagout
• Electric Stroke Control
• Hydraulic Accessory Pack
• Central Lubrication System
• Swing-Away Stripper Assembly
• Roller Encoder Measuring System
• Quick Change Punch Assembly
• Premium Gauging Tables
• LED Lighting

The Edwards ELITE 110 Ironworker sets the standard of design excellence and superior performance with integrated value-added features in this robust new series of Ironworkers.

Standard features of the ELITE 110 include a Punch Assembly, Flat Bar Shear, Angle Shear and a universal open tooling station for optional Tooling Accessories. Integrated PowerLink System enable your ELITE 110 to act as a power source for our expanding line of innovative PowerLink Hydraulic Tools.

PUNCH

Rating 110 Tons

Max. Capacity 1-3/8" Dia. in 1" A36

(65,000 PSI Tensile)

Stroke 1-13/16"

Throat Depth 11-3/4"

Open Height 8-5/8"

Shut Height 6-13/16"

Work Height 41"

FLAT BAR SHEAR

Max. Capacity 3/4" x 14"

1" x 12"

Max. Round 1-1/4"

Max. Square 1-1/4"

Work Height 41-1/2"

ANGLE SHEAR

Max. Capacity 6" x 6" x 1/2"

Work Height 50-7/8"

OPTIONAL COPER NOTCHER

Max. Capacity 2-1/2" x 6" x 1/2"

Work Height 44-3/16"

OPEN STATION

Throat Depth 15-1/2"

Open Height 8-5/8"

Shut Height 6-13/16"

Stroke 1-13/16"

Work Height 39-3/16"

GENERAL SPECIFICATIONS

Standard Motor 7.5 HP 3~ 208 V or 230 V

1765 RPM 22 A

Optional Motors 7.5 HP 3~ 460 V

1765 RPM 11 A

7.5 HP 3~ 575 V

1770 RPM 8 A

7.5 HP 1~ 230 V

1765 RPM 36 A

Hydraulic Pump 10-1/2 GPM - 2 Stage

Valve Pressure 3000 PSI

Reservoir 17 Gallons

Cylinder 3-1/2" Ram

DIMENSIONS

Height 66-1/16"

Width 57-1/4"

Depth 42-3/8"

Shipping Weight 5380 lb
