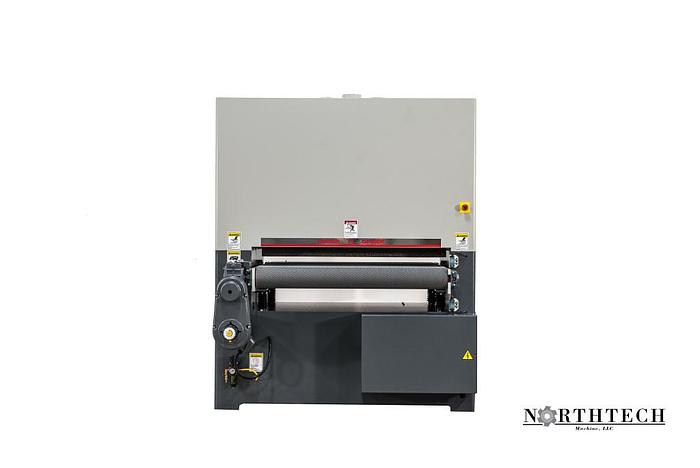

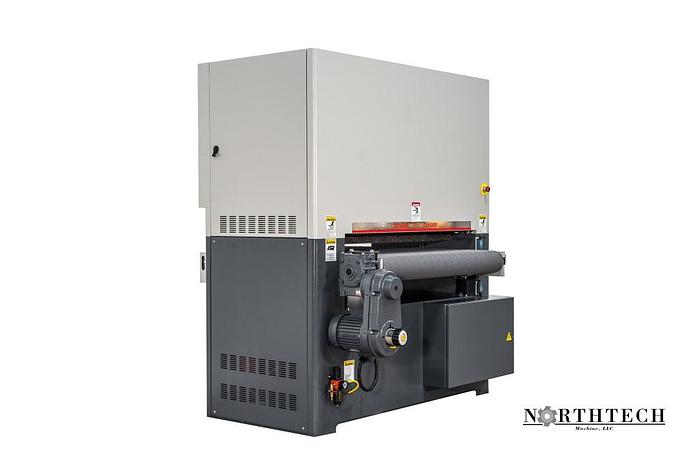

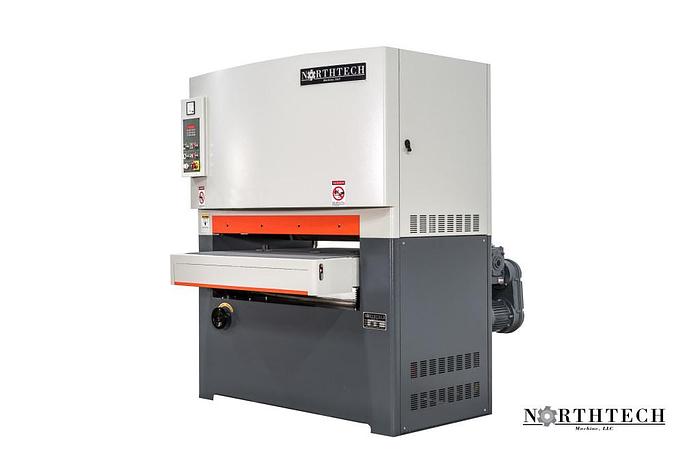

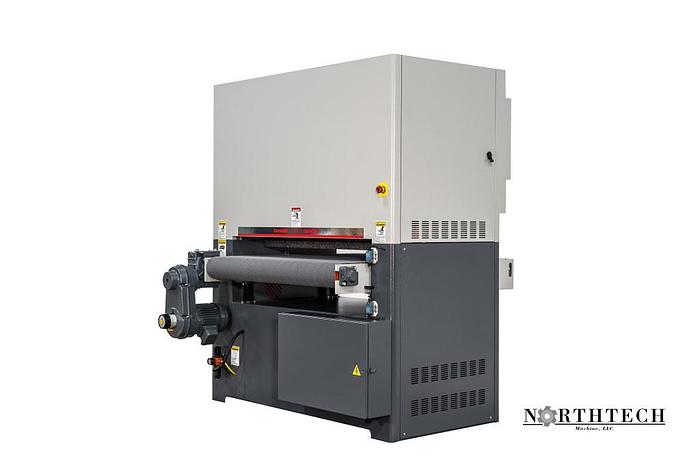

Northtech NT-1100C Single Head 43'' Wide Belt Sander
Northtech NT-1100C Single Head 43'' Wide Belt Sander
Contact us for price
Location:Dundee, NY
orCall +1 (607) 678-4374
Description
The NT-1100C single combination head wide belt sander has a 43″ working width and comes
standard with 44″ x 75″ belt and variable speed invisible seam feed mat. The combination head
provides the benefit of sanding with a roller and platen in side a single head machine footprint.

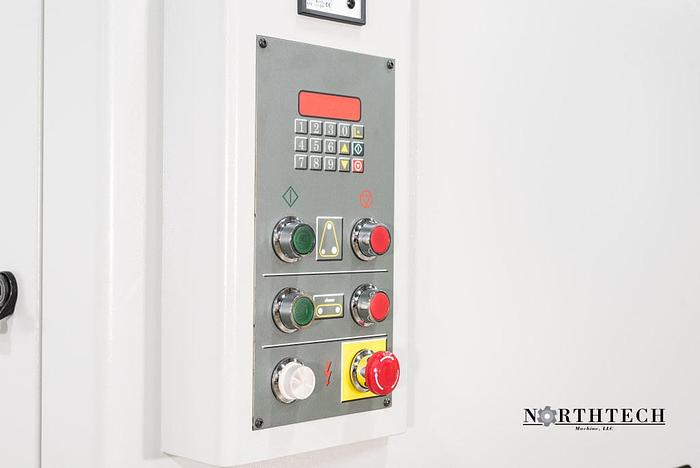

Features heavy steel frame design, digitally positioned elevation control with close to 6″ opening
and independent start/stop controls for the feed and belt.
Specifications
| Manufacturer | Northtech |
| Model | NT-1100C |
| Condition | New |
| MACHINE HP | 27-1/4 HP |
| MAIN MOTOR HP | 25 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 72/36 Amps |
| CONFIGURATION | Combination |
| 1st HEAD | 15 HP 4'' Fluted Drum with Platen |
| FEED HP | 2 HP |
| FEED SYSTEM | 43-1/4'' Feed Mat |
| DRIVE SYSTEM | Gear Box / Variable Speed Pulley |
| FEED SPEED RANGE | 16-48 FPM |
| VARIABLE FEED SPEED | Variable Speed pulley |
| ELEVATION HP | 1/4 HP |
| ELEVATION STYLE | Digital Readout |
| ELEVATION SYSTEM | 4 Post Jack Screw |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 220 Volt |
| PASS-LINE | 30-3/4'' - 36-7/16'' |
| MIN. WORKING LENGTH | 11-1/2'' |
| MAX. WORKING WIDTH | 43'' |
| MIN. WORKING THICKNESS | .155'' |
| MAX. WORKING THICKNESS | 6 |
| SANDPAPER SIZE | 43-1/4'' x 75'' |
| PLATEN SPECIFICATIONS | 1-3/4'' x 44'' |
| DRUM SPECIFICATIONS | 4'' Spiral Fluted 65 Durometer |
| 1st BELT SPEED | 2285 FPM |
| OSCILLATION STYLE | Electric Photo Eye |
| OSCILLATION TRAVEL | 3/4'' |
| CLEANING SYSTEM | Jet Blow Off on Photo Eye |
| TRACKING STYLE | Pneumatic |
| TENSION STYLE | Pneumatic |
| DUST PORT SIZE OUTLET | (4) 5'' Ports |
| DIGITAL DISPLAY | Elevation |
| CONVEYOR | 43-1/4'' Feed Mat |
| IDLE ROLLERS | (2) |
| PRESSURE SHOES | (2) |
| HOLD DOWN STYLE | (2) Rubber Rollers / (2) Pressure Shoes |
| FLR INCLUDED | Filter, Lubricator, Regulator |
| CFM AIR SUPPLY REQUIREMENT | 3/8'' Line @ 90 PSI |
| EMERGENCY STOP | Push Button |
| GUARDING | Full Enclosure |
| BRAKE SYSTEM | Dual Pneumatic Caliper |
| FRAME CONSTRUCTION | 1/4'' Steel |
| TABLE CONSTRUCTION MATERIAL | Steel |
| DECIBEL RATING | 78 dB |
| NET WEIGHT | 2390 Lbs. |
| GROSS WEIGHT | 2687 Lbs. |
