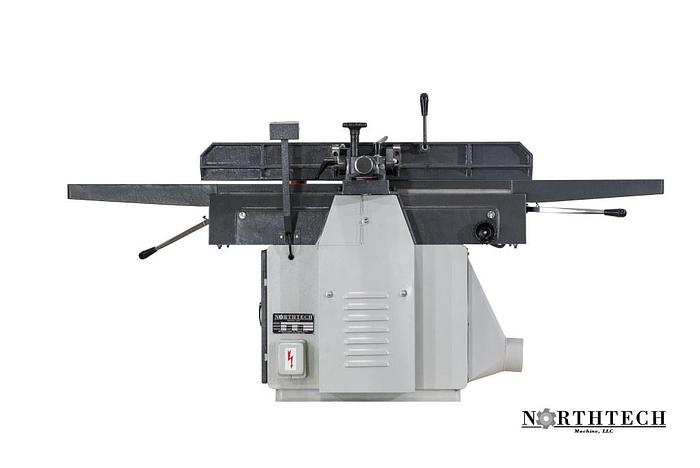

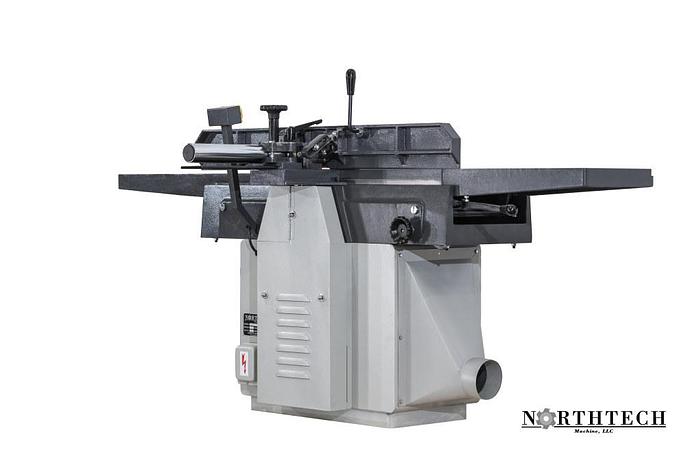

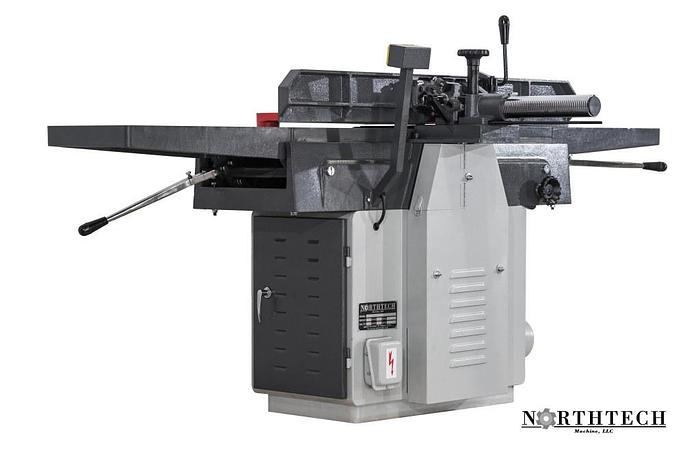

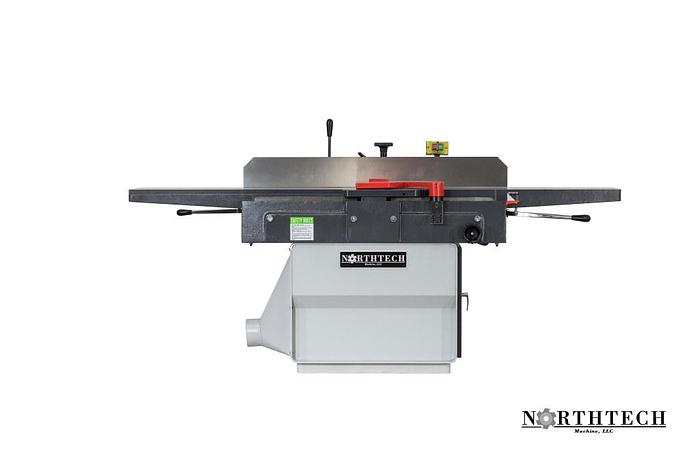

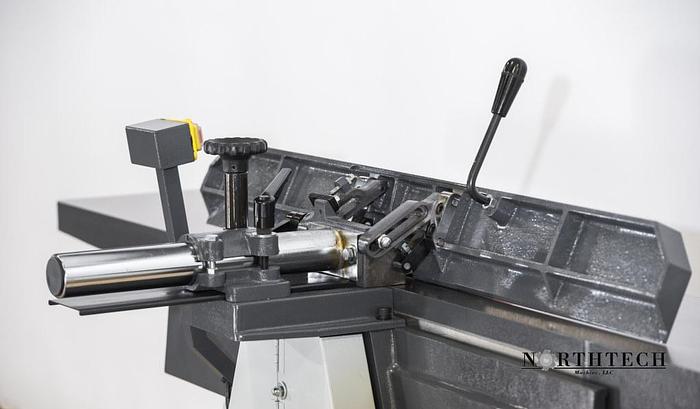

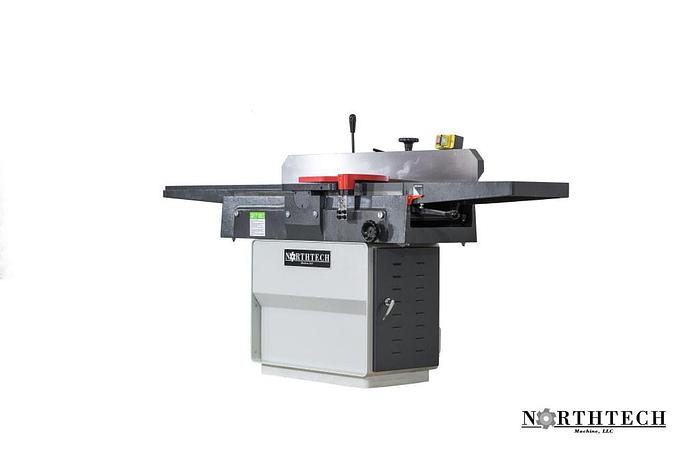

Northtech NT-1284HC 12'' Helical Head Jointer
orCall +1 (607) 678-4374
Description

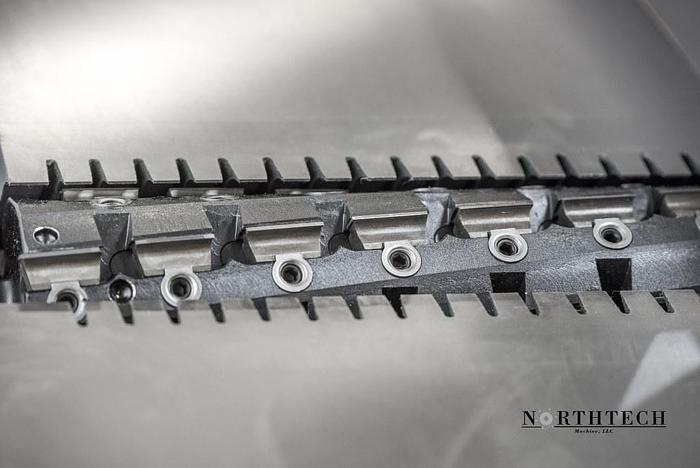

The NT-1284 Jointer has a 12″ working width and 7ft table for a smooth and flat surface making them ideal for gluing surface prep. Cast iron bases and rigid tables are designed for the industrial use and will provide decades of use. Helical cutter heads employ a 30x30x2.5mm insert that can be flipped 1 times for a new cutting surface. The parallelogram design insures smooth movement of the infeed bed for varying stock removals.
Specifications
| Manufacturer | Northtech |
| Model | NT-1284HC |
| Condition | New |
| BOTTOM HEAD HP | 5 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60HZ |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 7.5 / 15 Amps |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 230 Volt |
| PASS-LINE | 30-3/4'' - 31-1/2'' |
| MIN. WORKING LENGTH | 12'' |
| MIN. WORKING WIDTH | 3'' |
| MAX. WORKING WIDTH | 12'' |
| CUTTER HEAD RPM | 5000RPM |
| HEAD TYPE | Spiral Helical Cutter Head |
| CUTTER HEAD DIMENSIONS | 4'' x 12'' |
| CUTTER HEAD MATERIAL | Alloy Steel |
| ROWS OF CUTTERS | 6 Rows |
| NO. OF INSERTS | 42 Inserts |
| INSERT SIZE | 30 x 12 x 2.5 |
| DUST COLLECTION REQUIREMENT | 681 CFM @Extraction Point |
| DUST PORT SIZE OUTLET | (1) 5'' Port |

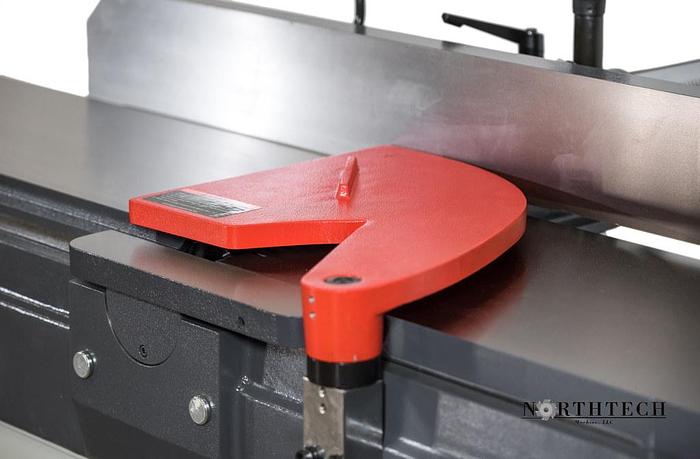

| GUARDING | Swivel Guard |
| FENCE DIMENSIONS | 5-3/8'' x 47'' |
| FRAME CONSTRUCTION | Cast Construction |
| INFEED TABLE LENGTH | 41-1/4'' |
| DECIBEL RATING | 69dB |
| NET WEIGHT | 706 Lbs. |
| GROSS WEIGHT | 888 Lbs. |
| MACHINE DIMENSIONS | 85'' x 38'' x 44'' |
| PACKAGING DIMENSIONS | 90'' x 27'' x 41'' |
