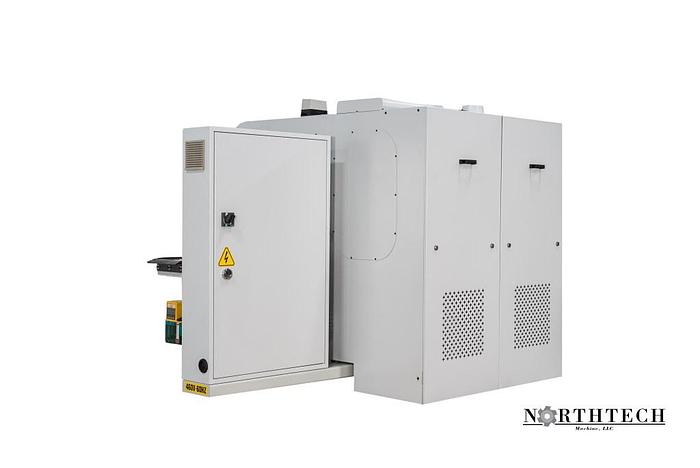

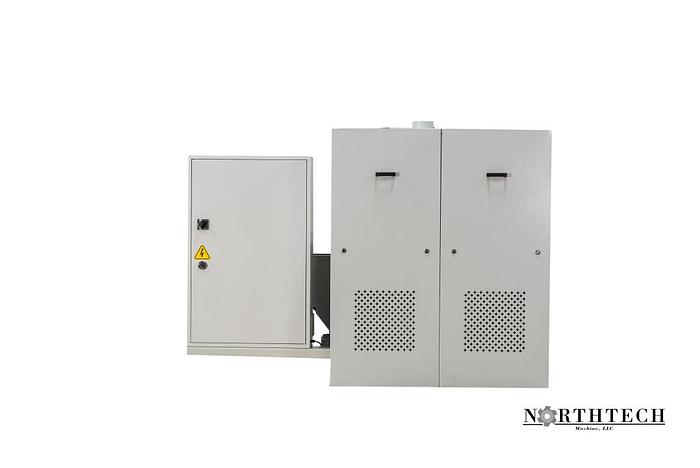

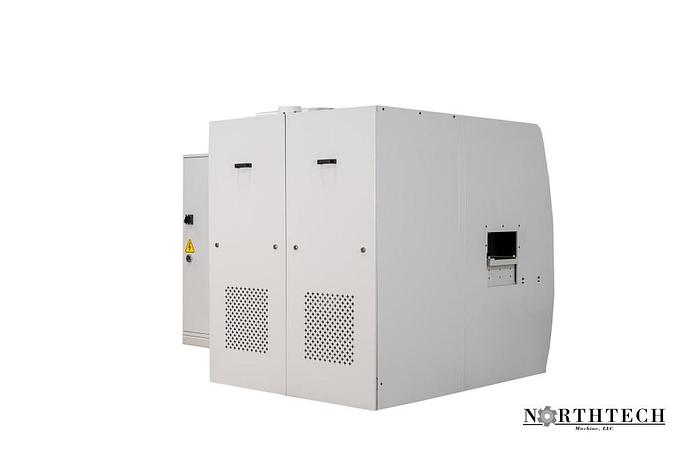

Northtech NT-N2230 MOULDER 2 HEAD
orCall +1 (607) 678-4374
Description

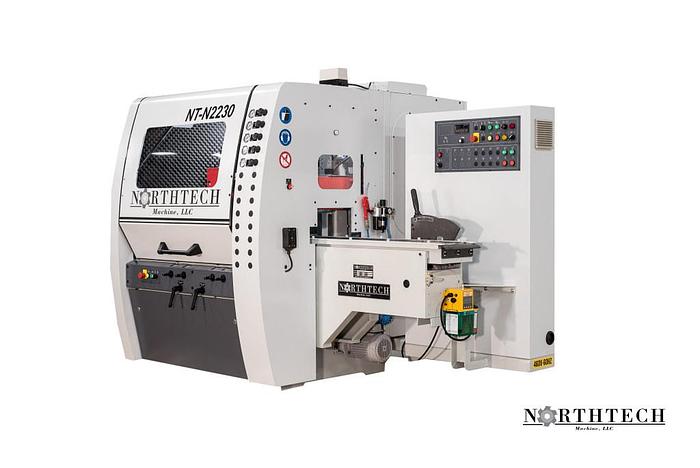

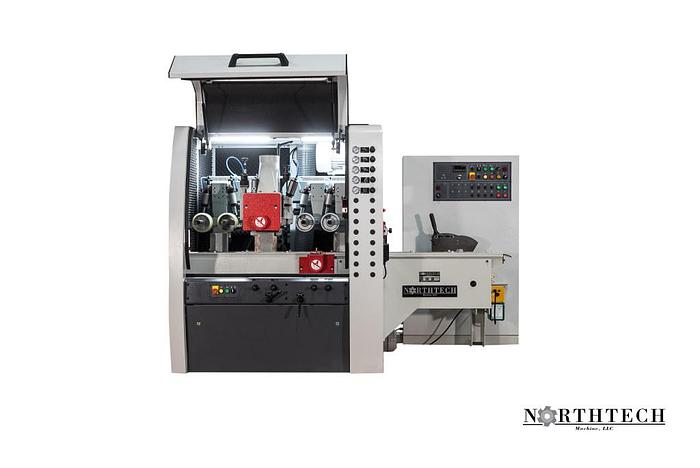

NT-N2230 MOULDER 2 HEAD The NT N2230 is a specially designed 6″ x 9″ moulder. This 2 spindle machine is configured with a single top and bottom horizontal spindle. The elimination of vertical spindles allows for an industrial grade machine with a small footprint. Features such as chrome table, Siko mechanical readouts, automatic bed oiler and independent spindle motors powering 1-13/16″ 6000RPM Spindles are standard. There are a vast amount of optional features available making the N series is an excellent option to higher priced competitive models.
Specifications
Manufacturer | Northtech |
Model | NT-N2230 |
Condition | New |
MACHINE HP | 33 HP |
REVERSIBLE MOTOR | Feed |
VOLTAGE, FREQUENCY | 230/460 Volt 60 Hz |
PHASE | 3 Phase |
AMP REQUIREMENT | 110-55 Amp |
CONFIGURATION | B - T |
1ST SPINDLE | 10 HP Bottom Horizontal |
2nd SPINDLE | 15 HP Top Horizontal |
SPINDLE RPM | 6000 RPM |
UNDER THE NUT CAPACITY | 9-3/4'' |
FEED HP | 7.5 HP |
FEED SYSTEM | Knurled Feed Rollers / Polyurethane Rollers |
DRIVE SYSTEM | Gear Box / Carden Shaft |
FEED SPEED RANGE | 20-120 FPM |
VARIABLE FEED SPEED | Inverter Controlled |
REVERSIBLE FEED | Yes |
ELEVATION HP | 1 HP |
ELEVATION STYLE | Raise Lower Switch |
ELEVATION SYSTEM | (3) Jack Screws / Guides |
APPROVED ELECTRICAL PARTS | CE Approved Components |
DUAL VOLTAGE MOTORS | 230/460 Volt |
CONTROL VOLTAGE | 110 Volt |
ASSISTED START | Wye Delta Head 2 |
PASS-LINE | 34-3/4''6'' x 9'' |
MAX. WORKING LENGTH | 23-1/2'' |
MAX. WORKING WIDTH | 9'' |
MIN. WORKING THICKNESS | 3/16'' |
MAX. WORKING THICKNESS | 6-1/4 |
DUST COLLECTION REQUIREMENT | 981 CFM @ Extraction Points |
DUST PORT SIZE OUTLET | (2) 6'' Ports |
DIGITAL DISPLAY | Feed Speed |
POWERED ROLLERS | (6) Powered Rollers |
PRESSURE SHOES | (2) Head 2 |
HOLD DOWN STYLE | Pneumatic |
FLR INCLUDED | Filter, Lubricator, Regulator |
CFM AIR SUPPLY REQUIREMENT | 3/8'' Line @ 90 PSI |
EMERGENCY STOP | (1) |
REAR E STOP | (1) |
GUARDING | Full Enclosure |
OPERATION STYLE | Auto / Manual |
GREASE MANIFOLD | Yes |
OILER | Auto Bed Oiler |
FENCE TYPE | Fixed |
FRAME CONSTRUCTION | Cast / Steel |
TABLE CONSTRUCTION MATERIAL | Cast with Chrome Finish |
INFEED TABLE LENGTH | 37-1/2'' |
DECIBEL RATING | 66 dB |
NET WEIGHT | 5725 Lbs. |
GROSS WEIGHT | 6385 Lbs. |
MACHINE DIMENSIONS | 99'' x 73'' x 75'' |
PACKAGING DIMENSIONS | 104'' x 82'' x 83'' |
