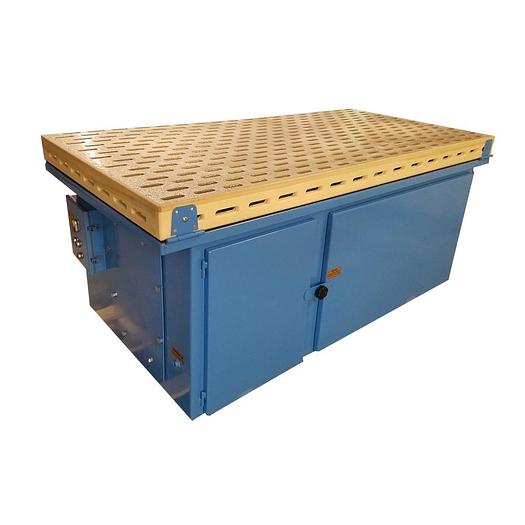

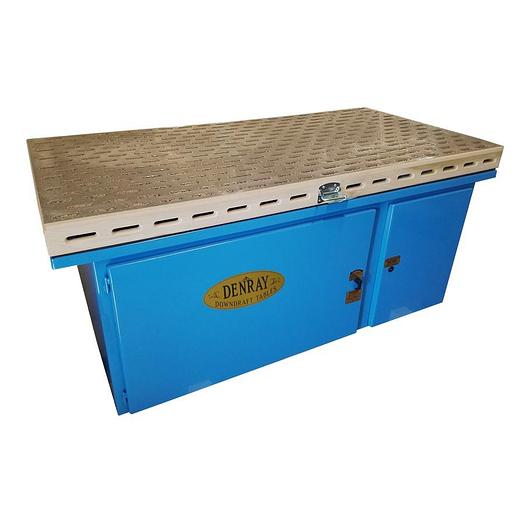

Denray 3672B Cartridge Filter Down Draft Table

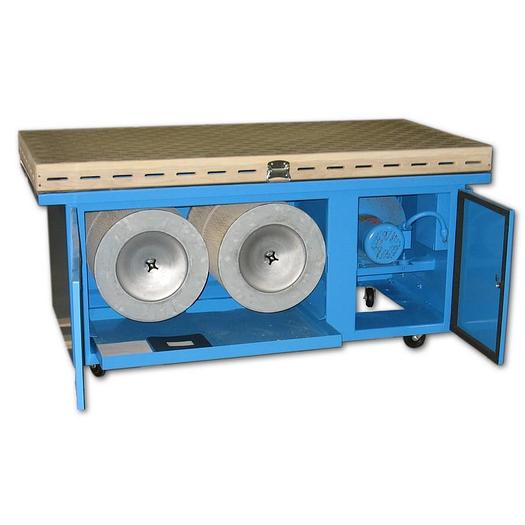

This model is great for medium sized jobs, and can be used while sanding plastics, woods, and finishing materials. This is a popular model for cabinet shops, with two operators using the same table. The 3672B also comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron. This model comes standard with Denray's "Jet Pulse" push-button cleaning, rubber coated top, and a magnetic starter.

• 36" x 72"
• 36" HEIGHT
• 2 HP MOTOR
• 3400 CFM
• 84 DECIBELS SOUND LEVEL

PHASE/VOLTAGE OPTIONS

SINGLE-PHASE

115 VOLTAGE (17.6 AMPS)

220 VOLTAGE (8.8 AMPS)

THREE-PHASE

230 VOLTAGE (5.8 AMPS)

460 VOLTAGE (2.9 AMPS)

575 VOLTAGE (2.3 AMPS)

ADDITIONAL OPTIONS

Explosion Proof Motor (3 Phase only)

Light Bar

Casters

Auto-timer

Muffler (reduces sound level 10-12 dbs.)

100% Spunbond Polyester Filters

Carbon Filter Bank (odor only)

HEPA Filter bank

Three-sided Hinged Safety Shield

Magnehelic Gauge

HDPE Plastic Tabletop

Hydraulic Height Adjustment

Larger Motor/Fan Upgrade
