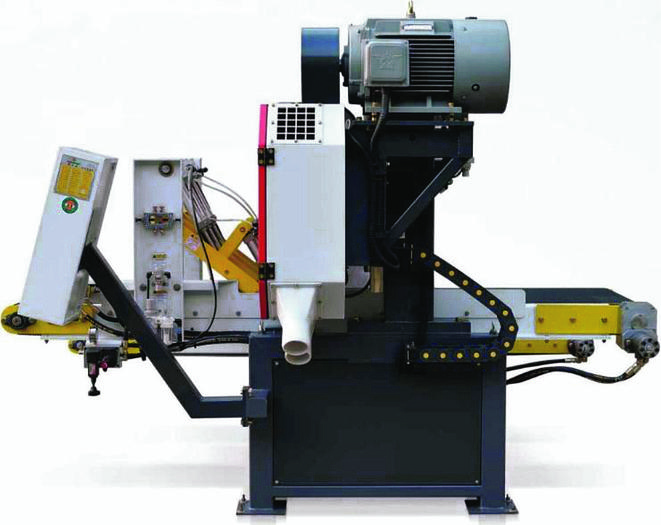

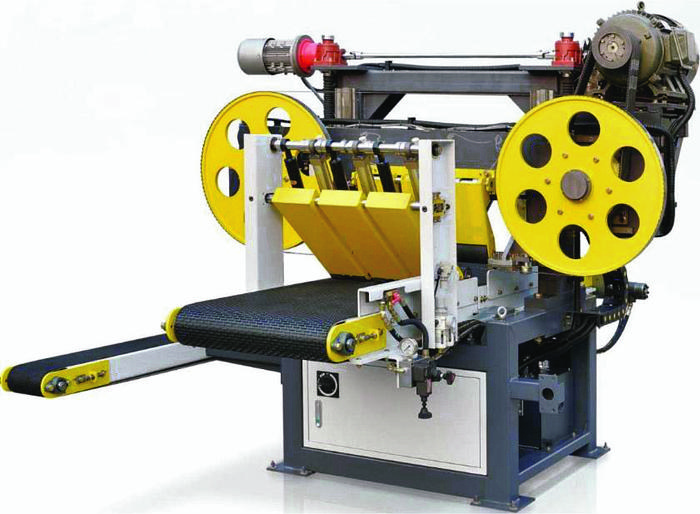

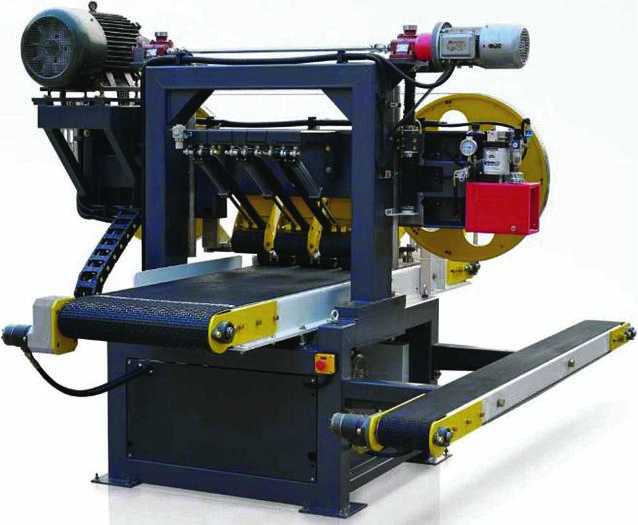

Timbertech T-650Z 25'' Horizontal Band Resaw
orCall +1 (607) 678-4374
Description
Timbertech Series Resaws, the ultimate solution for precision resawing! With three different widths to choose from, these resaws are designed to meet all your wood processing needs.

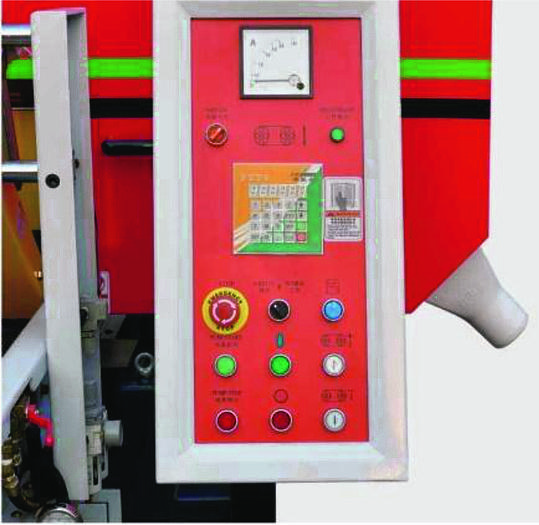

Say goodbye to manual adjustments with our digital controller, allowing for convenient and accurate thickness settings.

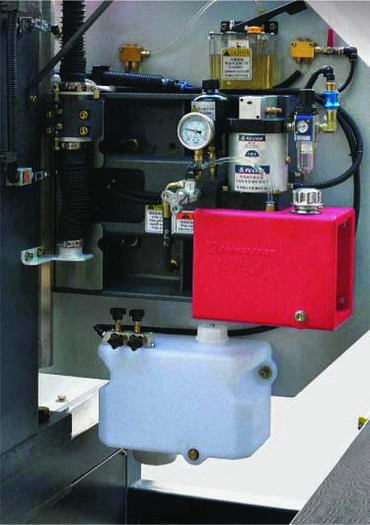

Equipped with hydraulic blade tension, to keep blades at a constant tension regardless of stretching. No more wasted time and effort on manual adjustments. The hydraulic variable feed further enhances your cutting efficiency, allowing you to control the speed and pace of your work, adapting to different materials and requirements with ease.
Specifications
Manufacturer | Timbertech |
Model | T-650Z |
Condition | New |
MAIN MOTOR HP | 30HP |
VOLTAGE, FREQUENCY | 230V |
PHASE | 3 Phase |
AMP REQUIREMENT | 80 |

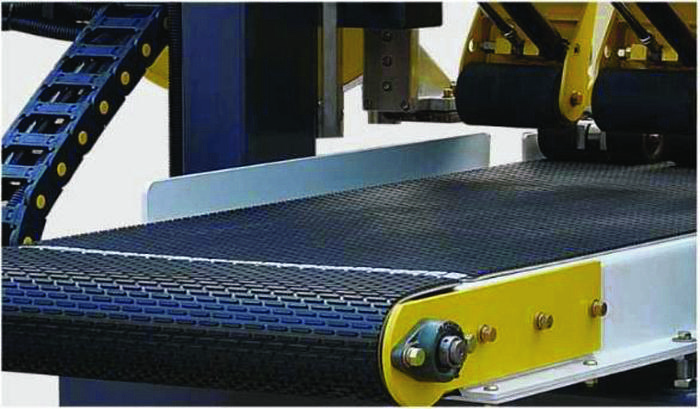

FEED SYSTEM | Conveyor Belt |
DRIVE SYSTEM | Hydraulic |
ELEVATION STYLE | Programmable Controller |
CUTTING ENVELOPE | 25-1/2'' x 11-7/8'' |
MIN. WORKING THICKNESS | .197'' |
BLADE SIZE | 1-3/8'' to 2'' x 205'' |
CLEANING SYSTEM | Wheel Scrapers |
TRACKING STYLE | Manual Adjustment |
TENSION STYLE | Auto Hydraulic |
CONVEYOR | 24-1/2'' x 217'' |
BLADE WHEEL DIMENSIONS | 1-3/4'' x 28'' |
WHEEL CONSTRUCTION | Cast |
MACHINE DIMENSIONS | 109'' x 97'' x 76'' |
GROSS WEIGHT | 5700 Lbs. |
