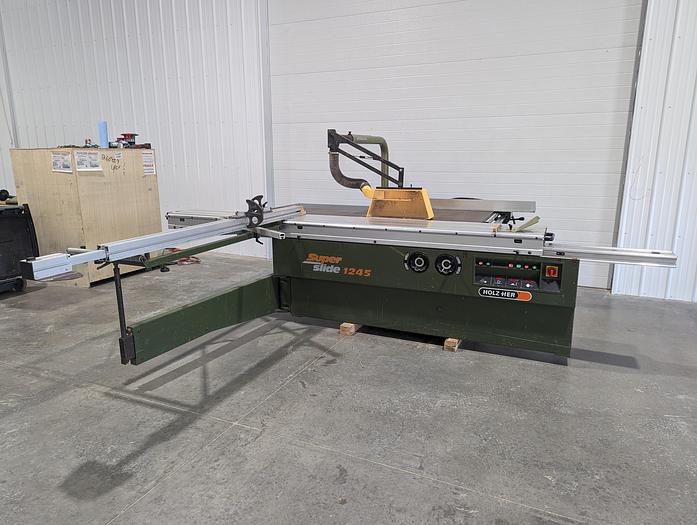

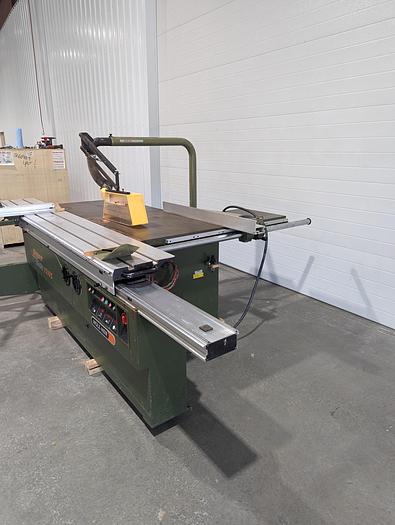

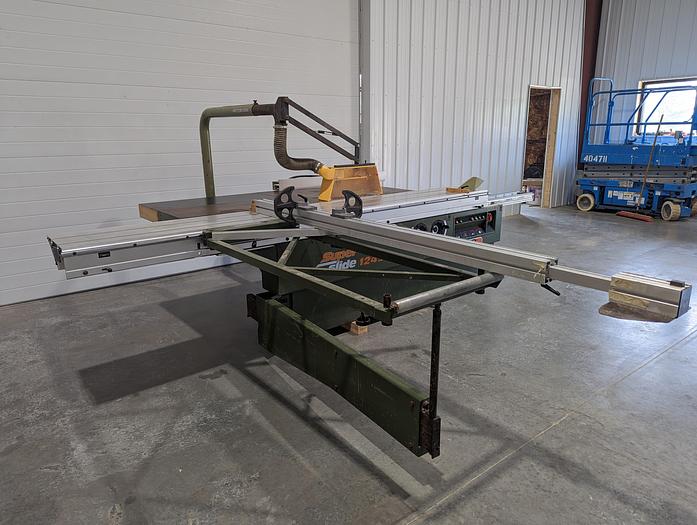

1992 HolzHer 1245 Super Slide Panel Saw

220 Volt three phase, 60 Hz

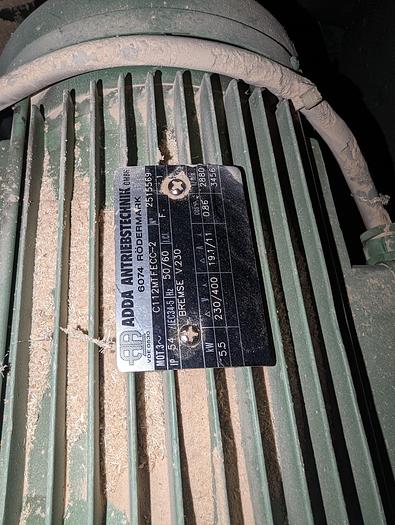

5.5 kW (7.5 Hp) main drive motor

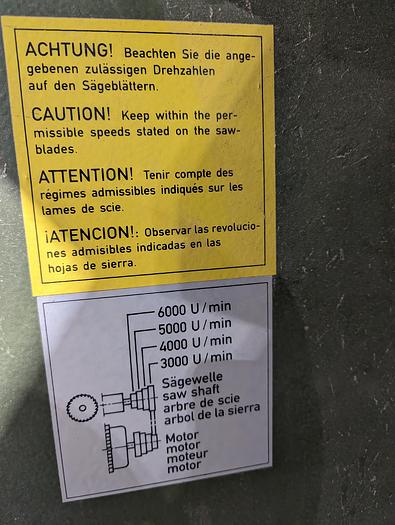

Variable arbor speeds with step pulley drive system

3000/4000/5000/6000 rpm arbor speeds

Right-hand tilting saw arbor to 45 degrees

0.75 kW (1 Hp) scoring saw drive motor

0.37 Kw (1/2 Hp) drive motor for raise and tilt of saw arbor

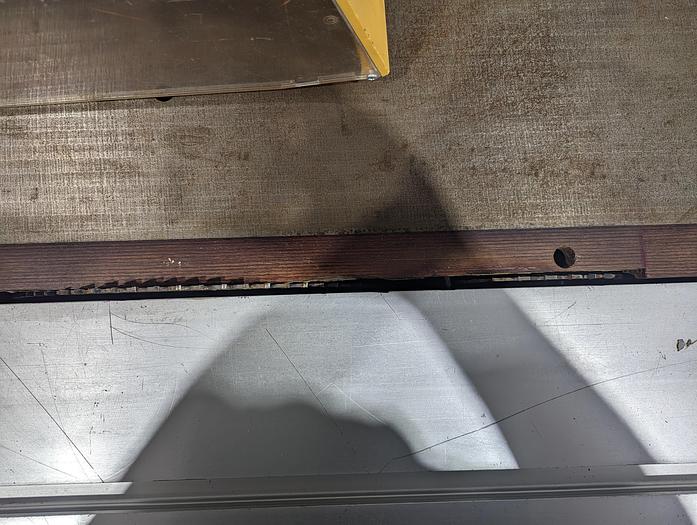

15" wide x 126" long aluminum sliding table section

33-3/4" table work height

31-3/4" wide x 43" long main saw table with 26" wide x 21" long right hand extension

15-3/4" wide x 37" long rear extension table

Particle board rear off fall work table

Adjustable rip fence with 54" cutting capacity

Aluminum adjustable rip fence face

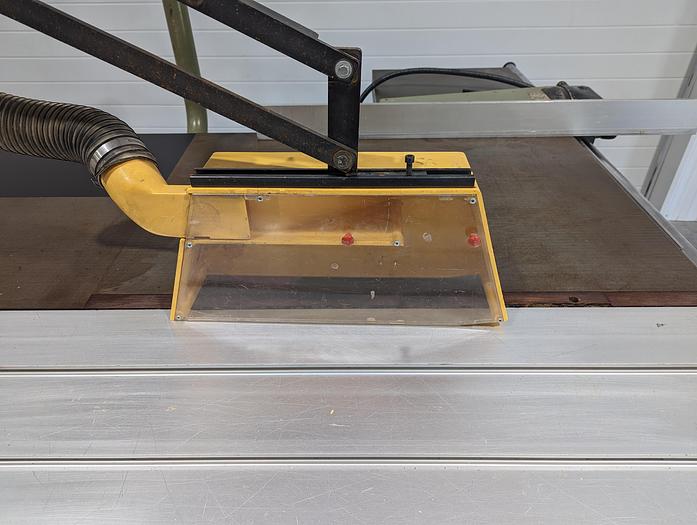

Overhead blade guard system

23" wide x 58" long adjustable cross-cutting table

85" long aluminum cross-cut fence with telescopic end and adjustable flip stop

Angle cutting fence capacity to 45 degrees

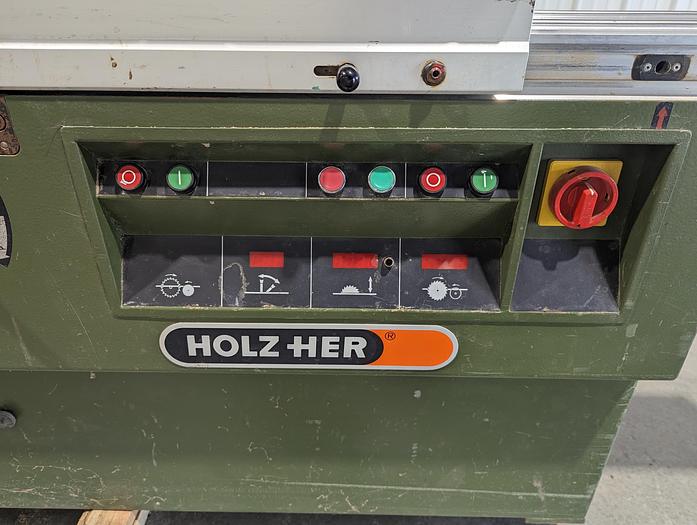

Side operator motor controls

Electronic digital displays for blade height, tilt, and arbor speed

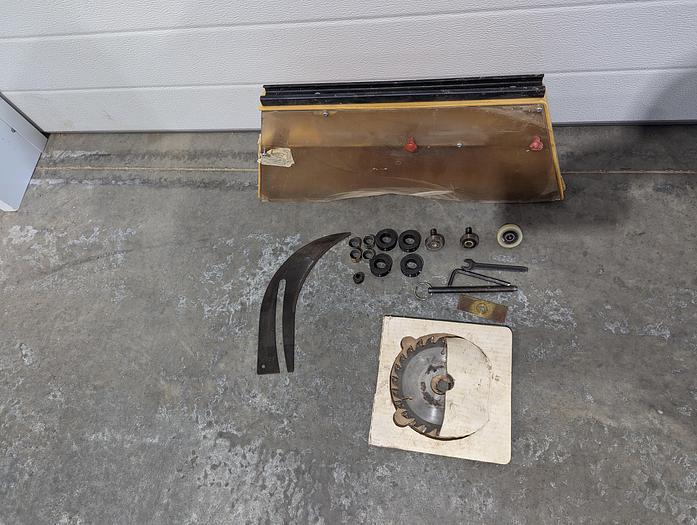

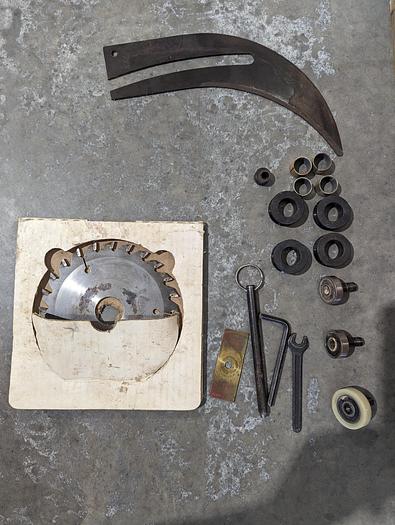

Includes riving knife and dado blade guard
