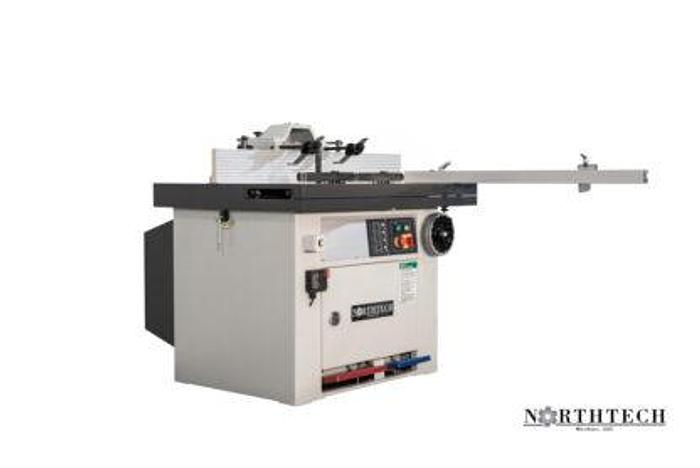

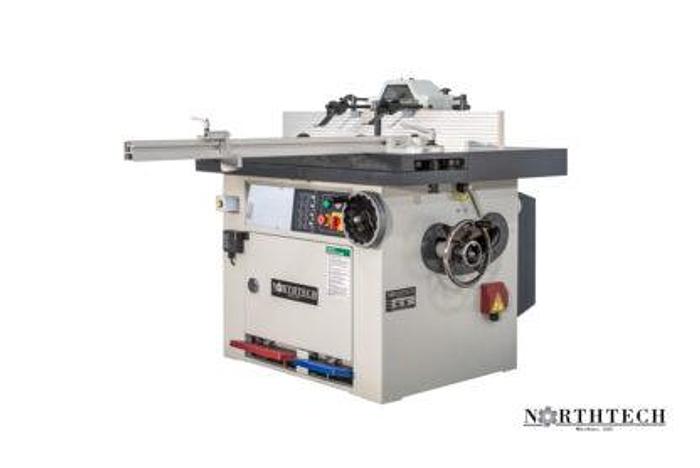

Northtech NT-735TS 10HP Shaper With Tilting Spindle, Sliding Table
Northtech NT-735TS 10HP Shaper With Tilting Spindle, Sliding Table
Contact us for price
Location:Dundee, NY
orCall +1 (607) 678-4374
Specifications
| Manufacturer | Northtech |
| Model | NT-735TS |
| Condition | New |
| MACHINE HP | 10 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 25/12.5 Amps |

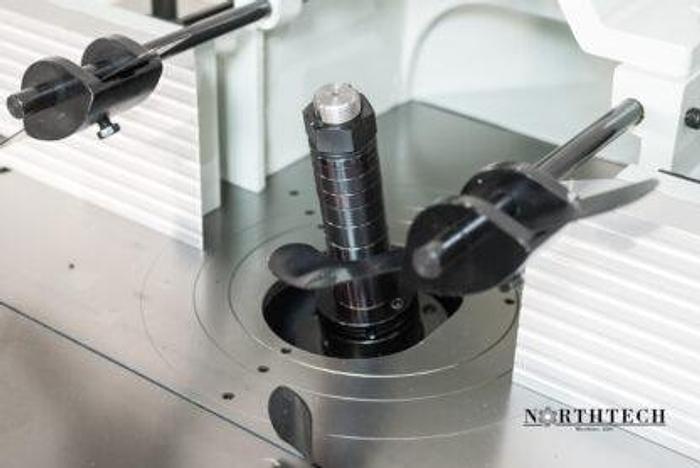

| SPINDLE LENGTH | 6'' |
| SPINDLE DIAMETER | 1-1/4'' |

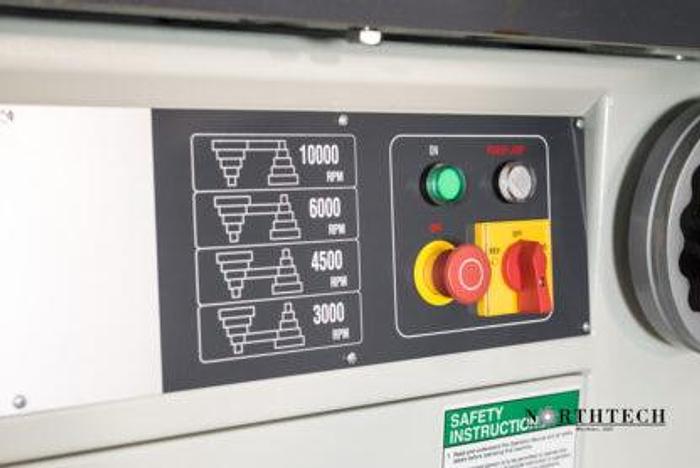

| SPINDLE RPM | 3000, 4400, 6000, 9500 RPM |

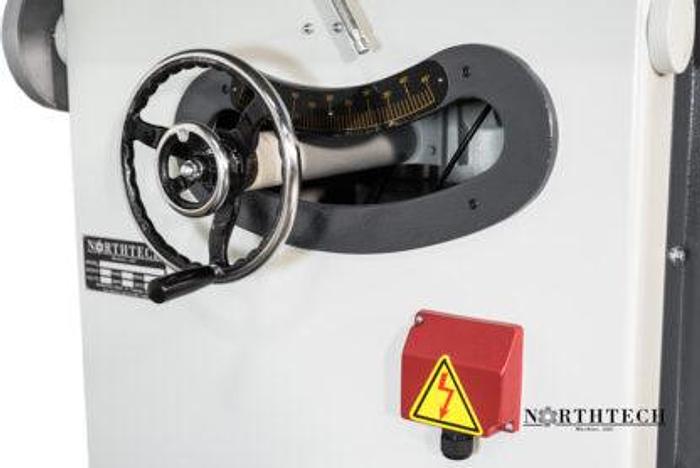

| ELEVATION STYLE | Manual Wheel Adjustment |
| ELEVATION SYSTEM | Quill Housing / Jack Screw |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 110 Volt |
| PASS-LINE | 35-1/4'' |
| VERTICAL TRAVEL | 7-1/4'' on Spindle |
| DUST COLLECTION REQUIREMENT | 681 CFM @ Extraction Points |
| DUST PORT SIZE OUTLET | (1) 5'' |
| EMERGENCY STOP | (1) |
| FENCE TYPE | Adjustable |
| FENCE DIMENSIONS | (2) 5-1/4'' x 24'' |
| MICRO FENCE | Knob Adjustment |

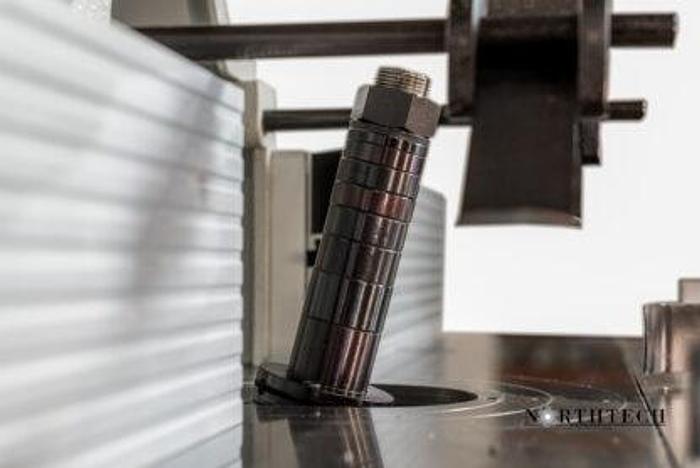

| TILT-ABLE | -5 - 45 Degrees |
| SLIDING TABLE TRAVEL | 22-3/8 in Each Direction |
| FRAME CONSTRUCTION | 1/4'' Steel |
| WORKTABLE DIMENSIONS | 36'' x 47-3/4'' |
| TABLE CONSTRUCTION MATERIAL | Cast |
| DECIBEL RATING | 70 dB |
| NET WEIGHT | 1571 Lbs. |
| GROSS WEIGHT | 1725 Lbs. |
| MACHINE DIMENSIONS | 48'' x 46'' x 46'' |
| PACKAGING DIMENSIONS | 52'' x 53'' x 52'' |
