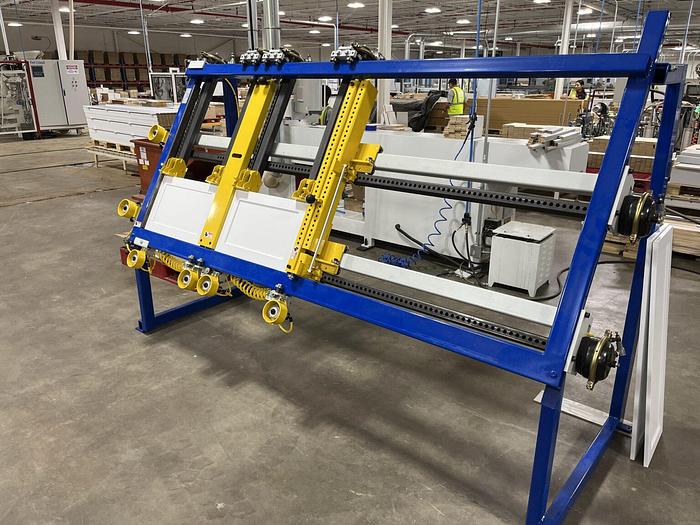

JLT #717C-CHBB Double Miter Door Clamp 38″ X 96″ Capacity

JLT #717C-CHBB Double Miter Door Clamp 38″ X 96″ Capacity

$12,000 (USD)

Location:Dundee, NY

Description

Features:

  • 38″ x 96″ Maximum capacity.
  • Minimum 9″ Clamping Capacity.

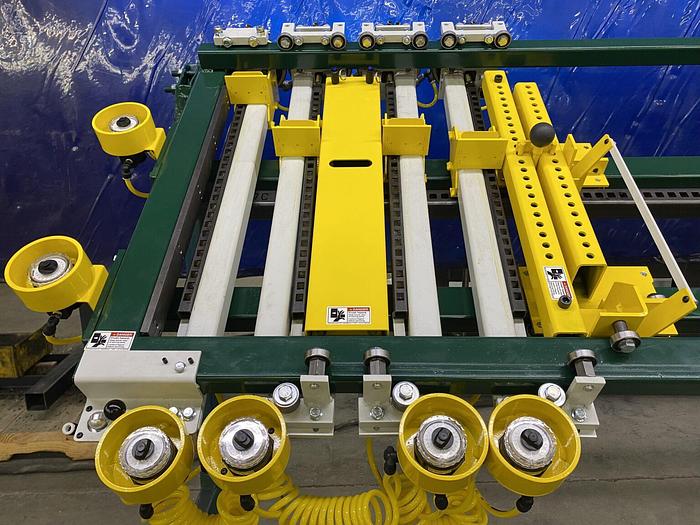

  • Includes (4) Vertical Clamps & (2) Horizontal Clamps.

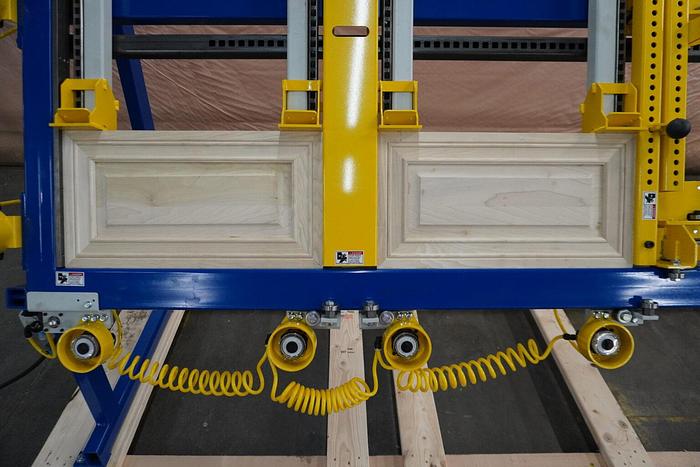

  • (2) Total Squaring Sections for Clamping and Squaring of Multiple Cabinet Doors (Each is 38″W x 46″L)
  • Each clamp includes the JLT Dial Control System for fine adjustments, which is simple and easy to use.
  • This innovative Dial Control System allows for adjustments in BOTH directions while the door is under clamping pressure

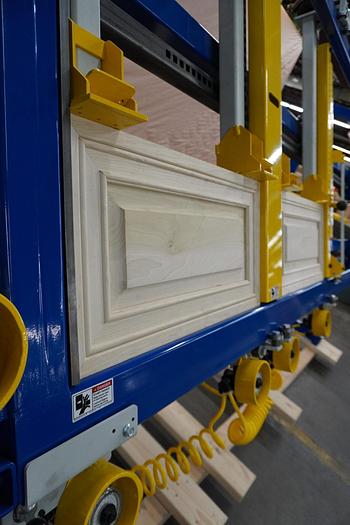

  • Precise and Accurate Squaring for both Miter and Stile & Rail Cabinet Doors

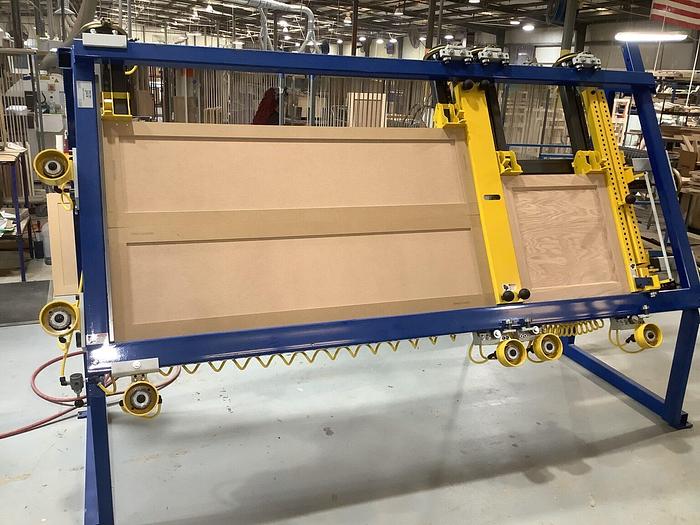

  • With our optional UHMW Border Package, Precisely Clamp and Square MDF or HDF Doors too!!
  • Easy to use, Single Lever Operation.
  • Fast Changeovers
  • 60 Degree Working Angle

Enhanced Features from the Tried & True #79K Design:

  • Intuitive Pin System allows even Quicker and Easier setup than ever before.
  • Cylinders Located in the back of the machine to Provide Operator with Additional Working Space.
  • Redesigned Jaws with Thumb Plate for Increased Efficiency.
  • Thicker Push Bars Decrease Daily Wear and Tear.
  • Precisely Clamp and Square MDF or HDF Doors too!


Machine Footprint: 120″L x 76″H x 42″W


Specifications

ManufacturerJLT
Model#717C-CHBB
ConditionNew
Stock Number#717C-CHBB
