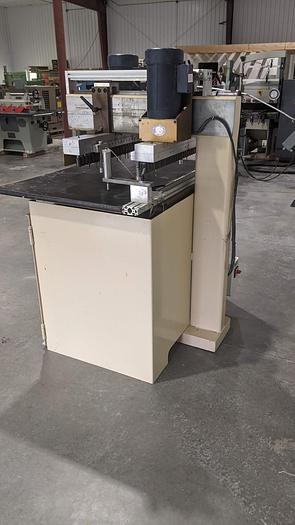

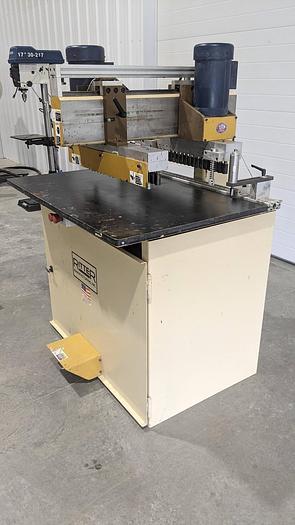

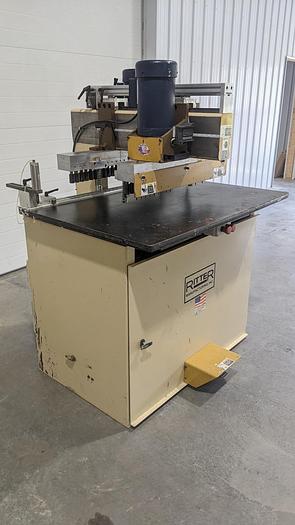

Ritter R46 46 Spindle Double Row System Drill

Used Ritter R-46 46 Spindle Double Row System Drill

This machine comes with a full set of tooling.

Standard Features:

(2) 23-Spindle Gear Driven Drill Head on 32mm Centers

(24) Right Hand, (22) Left Hand

4"-24" Centers Between Rows

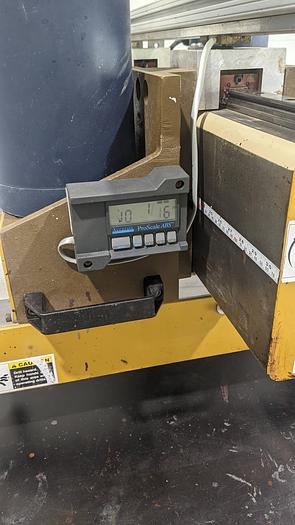

Digital Readout Front Head Position Display

Precision Linear Head Ways

(4) Quick Set Drill Head Position Stops

Rear Drill Row Nesting

48" Back Fence with (4) Adjustable Material Stops

Right and Left Hand Work Stations

(2) Air Index Pins

(2) Spring Operated Material Clamps

(2) Position Drill Depth Stop Turret

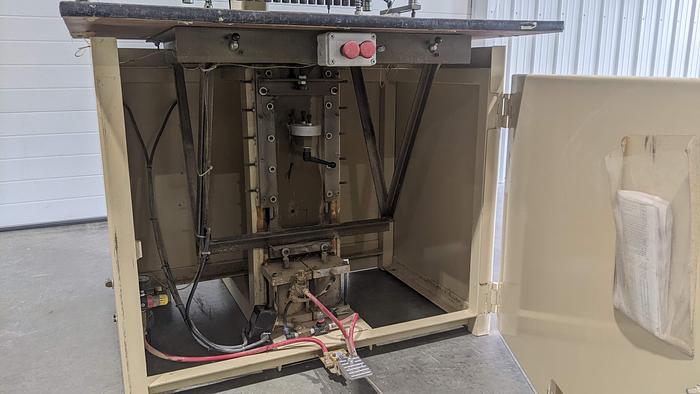

Pneumatic Foot Actuated Boring Cycle

Tooling Not Included

Technical Data and Specifications:

Drive Motor: 3 HP

Spindle Centers: 32mm

Collet Size: 10mm

Throat Capacity: 24"

Maximum Material Thickness: 1.25"

Electrical: 230V, 3Ø, 60Hz, 20A or 460V, 3Ø, 60Hz, 10A

Air: 2 CFM at 80 – 100 PSI

Work height: 39″

Footprint: 48″ x 43″

Table Area: 30″ x 48″
