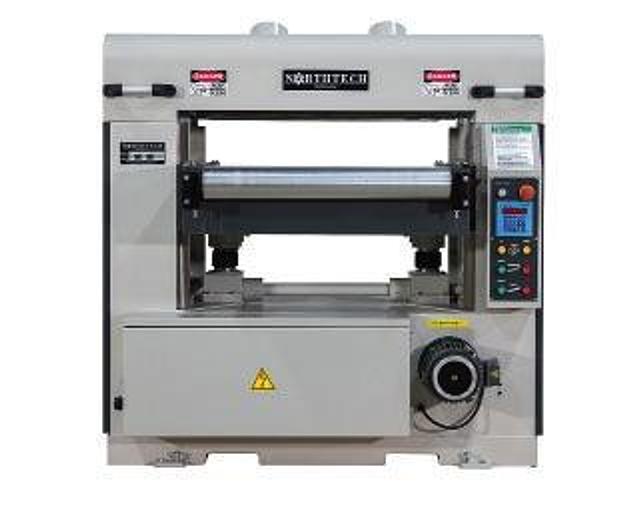

Northtech NT-850HCVS 33-1/4'' Single Surface Planer
Northtech NT-850HCVS 33-1/4'' Single Surface Planer
Contact us for price
Location:Dundee, NY
Description
The NT-850HCVS is our 30HP Single Surface Planer with a 33-1/4″ working width. This planer has a heavy-duty cast iron base, oversized column bed supports, and spring-loaded chip breakers. The 850 comes standard with powered digital thickness control, independent feed start/stop, independent cutterhead start/stop, and inverter speed control. It also comes standard with limit switches to restrict head access while on, front and rear emergency stop buttons, and anti-kick-back fingers for added safety. The corrugated sectional infeed rollers with smooth non marking outfeed rollers coupled with integrated bed rollers provide smooth part feeding during heavy stock removal operations. Unlike many competitive models of single surface planers, all Northtech feed rollers are synchronized to turn at the same speed.
Specifications
Manufacturer | Northtech |
Model | NT-850HCVS |
Condition | New |
Stock Number | NT-850HCVS |
TOP HEAD HP | 30 HP |
VOLTAGE, FREQUENCY | 230/460 Volt 60HZ |
PHASE | 3 Phase |
AMP REQUIREMENT | 30/60 Amps |
FEED HP | 2 HP |
FEED SYSTEM | (4) Top Powered Rollers (4) Bottom Powered Rollers |
FEED SPEED RANGE | 10-40 FPM |
VARIABLE FEED SPEED | Manual Clutch Adjustment |
ELEVATION HP | 2 HP |
ELEVATION STYLE | PHE 727M Digital Controller |
ELEVATION SYSTEM | (2) Post Jack Screw |
TOTAL MACHINE HP | 34 HP |
APPROVED ELECTRICAL PARTS | CE Approved Components |
DUAL VOLTAGE MOTORS | 230/460 Volt |
CONTROL VOLTAGE | 110 Volt |
PROGRAMABLE | Elevation |
PASS-LINE | 38-1/2'' Down Position 45-1/4'' Up Position |
MIN. WORKING LENGTH | 14'' |
MAX. WORKING WIDTH | 33-1/4'' |
MIN. WORKING THICKNESS | .380'' |
MAX. WORKING THICKNESS | 7.315'' |
CUTTER HEAD RPM | 3600 RPM |
HEAD TYPE | Spiral Helical Cutter Head |
CUTTER HEAD DIMENSIONS | 5-1/2'' x 33-1/2'' |
CUTTER HEAD MATERIAL | Alloy Steel |
ROWS OF CUTTERS | 8 Rows 32 Inserts Per Row |
NO. OF INSERTS | 256 Inserts |
DUST PORT SIZE OUTLET | (2) 6'' Ports |
DIGITAL DISPLAY | Elevation Controller |
POWERED ROLLERS | (4) Top Powered Rollers (4) Bottom Powered Rollers |
HOLD DOWN STYLE | (17) Chip Breakers (1) Pressure Plate |
REAR E STOP | Push Button |
GUARDING | Full Enclosure |
DECIBEL RATING | 70 dB |
NET WEIGHT | 4950 Lbs. |
GROSS WEIGHT | 5388 Lbs. |
MACHINE DIMENSIONS | 547'' x 64-1/2'' x61-1/2'' |
PACKAGING DIMENSIONS | 63'' x 61'' x 67'' |
