Maksiwa BMS.1600.IR Sliding Table Saw BMS.1600.IR - 5HP Main Blade, 1HP Scoring Blade
![Used Maksiwa BMS.1600.IR](https://i.machineryhost.com/8c235f89a8143a28a1d6067e959dd858/4436bdca56b0b48763cc6aa1abb88229/large-used-maksiwa-bms-1600-ir.jpg)
Maksiwa BMS.1600.IR Sliding Table Saw BMS.1600.IR - 5HP Main Blade, 1HP Scoring Blade
Contact us for price
Location:Dundee, NY
Description

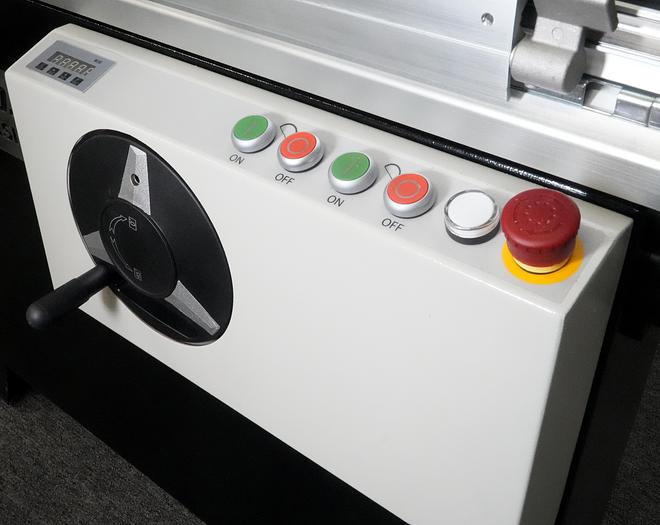

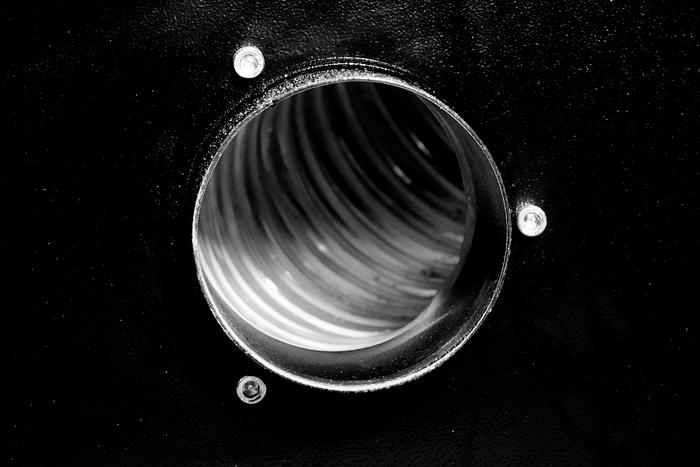

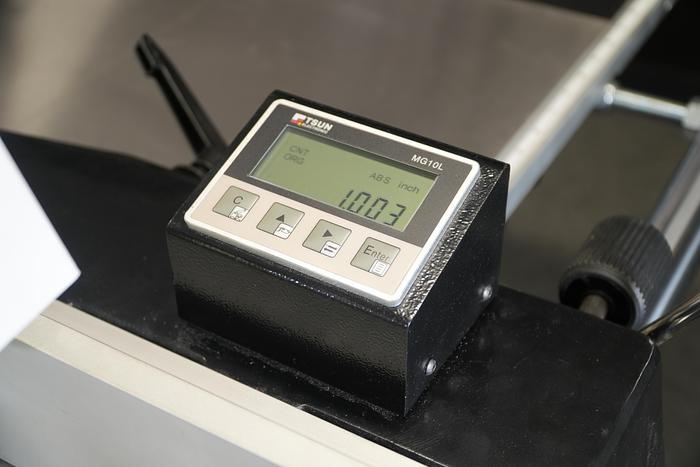

Introducing the New BMS.1600.IR. The BMS series is one of Maksiwa’s top seller sliders that has been completely redesigned from the ground up with improved construction and materials. The new ergonomic design features a more powerful 1HP scoring motor, Digital Rip Fence Readout, adjustable leveling feet, dual blade covers, two flip stops, integrated dust collection exhaust on a swing-away arm, and new soft touch buttons and control panel.
If you have limited space in your shop but are looking for a powerful slider, the new BMS.1600.IR is your choice! This machine boasts a robust 5HP main motor, available in 1 Phase 220V. The anodized aluminum sliding table is designed to ensure durability and longevity, while the European-style 41″ rip fence, built with heavy-duty casting, glides smoothly on a micro-polished solid steel bar. Finding precise measurements is made easy with the included micro-adjustment feature, adding convenience and efficiency to your work. As a testament to our commitment to quality, we offer a comprehensive 2-year warranty on all parts and service, providing you with peace of mind.
Specifications
Manufacturer | Maksiwa |
Model | BMS.1600.IR |
Condition | New |
Stock Number | BMS.1600.IR |
Main Motor | 5 HP 4000 RPM 3.7 Kw |
Main Blade Max Cutting Height at 90º | 3 1/2" |
Main Blade Max Cutting Height at 45º | 2 1/2" |

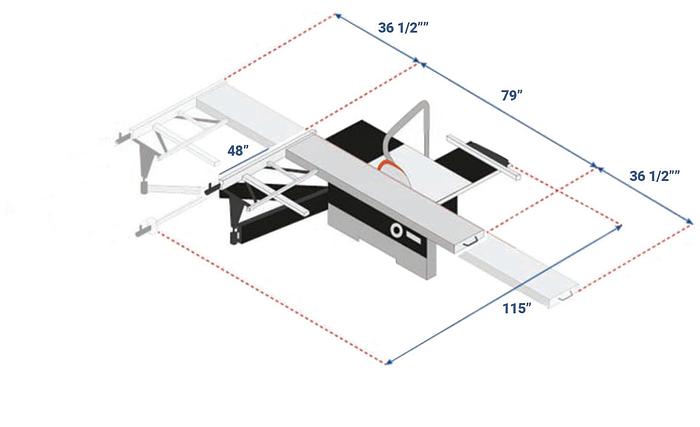

Machine Working Dimension (LxWxH) | 79" x 115" x 66" |
Cast Iron Table dimension (LxWxH) | 32 1/2" x 21" x 35 1/2" |
Electrical Specs | 1 PH 220V 30 Amps 60Hzs |
Scoring Motor Blade | 4 3/4" | 120mm |
Scoring Blade Arbor | 3/4" |
Scoring Blade Type | Conical |
Max Ripping Capacity | 35 1/2" | 900mm |
Crosscut Capacity | 63" |
Max Tilt | 45º |
Weight | 1000 lbs |
Dust Collection Port | 4" |
Sliding Table Dimension | 63" x 12" |
Crosscut fence max. (Closed/Open) | 48" / 80" |
Max Blade Diameter | 12" | 305mm |
Main Blade Arbor | 30mm |
