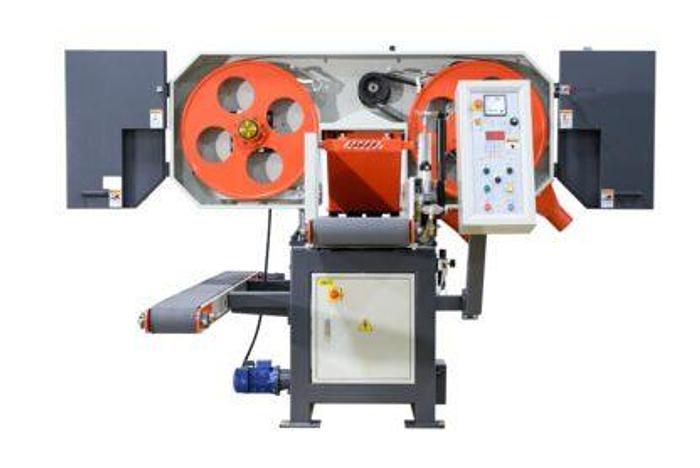

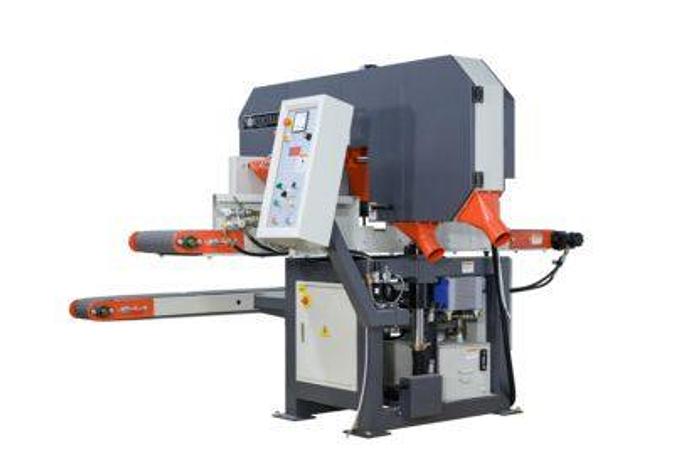

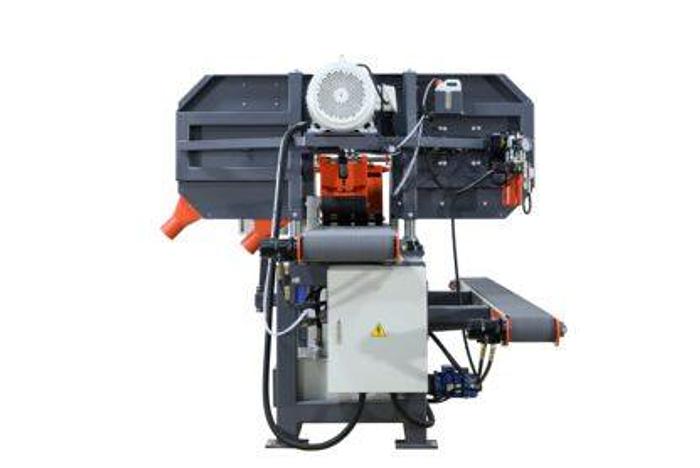

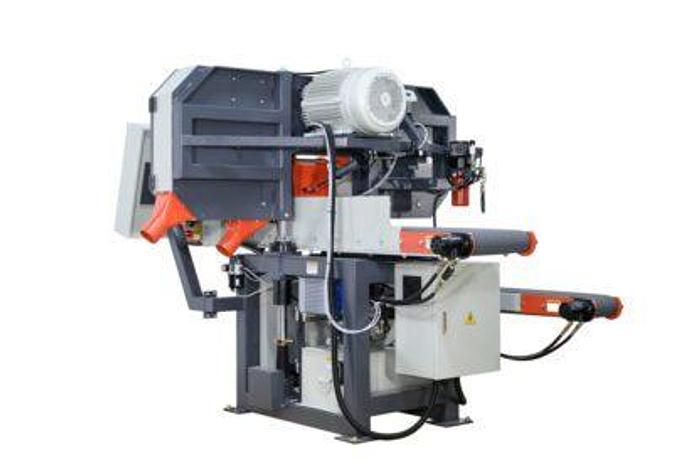

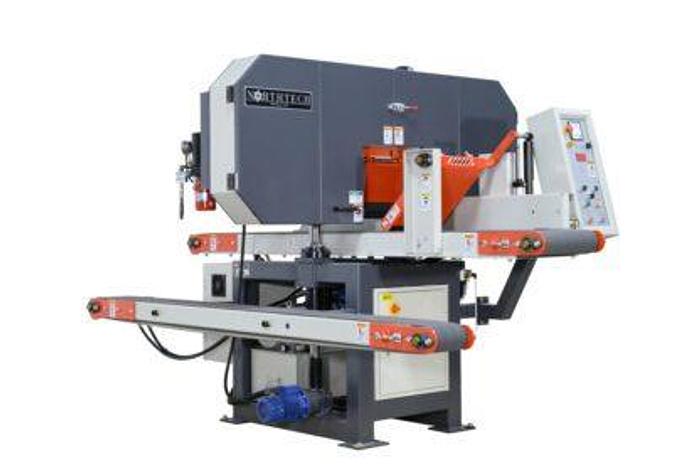

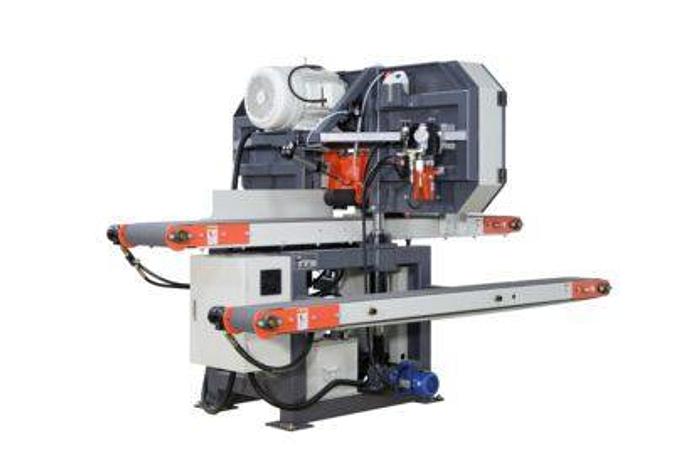

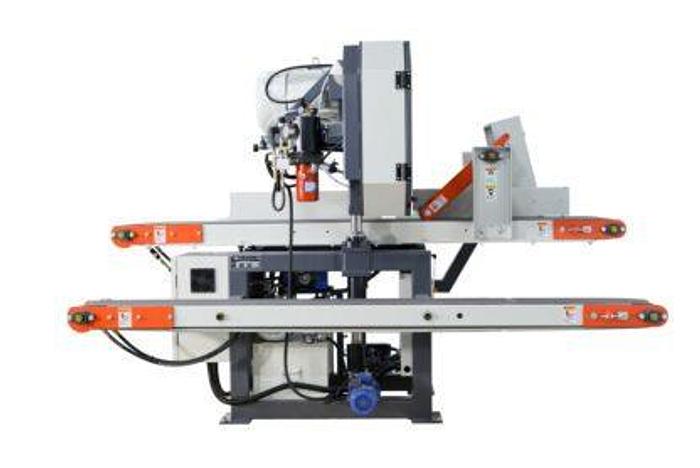

Northtech NT-HBR16PB HORIZONTAL BAND RESAW WITH POWERED RETURN
![Northtech NT-HBR16PB HORIZONTAL BAND RESAW WITH POWERED RETURN](https://i.machineryhost.com/8c235f89a8143a28a1d6067e959dd858/ebc12d1d86cccf233a0b8c8ba7ab53ce/large-northtech-nt-hbr-16-pb-horizontal-band-resaw-with-powered-return.jpg)
Northtech NT-HBR16PB HORIZONTAL BAND RESAW WITH POWERED RETURN
Contact us for price
Location:Dundee, NY
orCall +1 (607) 678-4374
Description
The Northtech HBR16PB is our 16″ horizontal resaw. This machine has a 16″x10″ cut capacity, digital thickness control, 2×28″ band wheels, powered return conveyor and a heavy-duty steel frame for multiple shift operation for a functional simplicity that makes it easy to operate. The variable speed feed mat has pneumatic infeed and pneumatic outfeed hold downs to provide a wide variety of capability and reliability.
Specifications
Manufacturer | Northtech |
Model | NT-HBR16PB |
Condition | New |
Stock Number | NT-HBR16PB |
MAIN MOTOR HP | 30 HP |
VOLTAGE, FREQUENCY | 230/460 Volt 60 Hz |
PHASE | 3 Phase |
AMP REQUIREMENT | 80 / 40 Amps |
FEED HP | 3 Hp Hydraulic Pump |
FEED SYSTEM | Hydraulic Motor Feed Mat |
DRIVE SYSTEM | Hydraulic Pump 3 HP |
FEED SPEED RANGE | 0-34 FPM |
VARIABLE FEED SPEED | Hydraulic Metering Valve |
ELEVATION HP | 3/4 HP |
ELEVATION STYLE | 2 Post Jack Screw |
ELEVATION SYSTEM | Motor Gearbox Jack Screw |
TOTAL MACHINE HP | 33-3/4 HP |
APPROVED ELECTRICAL PARTS | CE Approved Parts |
DUAL VOLTAGE MOTORS | 230/460 Volt |
CONTROL VOLTAGE | 220 Volt |
ASSISTED START | Wye Delta |
PROGRAMABLE | Cut Height |
PASS-LINE | 40-7/8'' |
CUTTING ENVELOPE | 11-3/4'' Tall x 16'' Wide |
MIN. WORKING LENGTH | 14'' |
MAX. WORKING WIDTH | 16'' |
MIN. WORKING THICKNESS | 3/16'' |
MAX. WORKING THICKNESS | 11-3/4'' |
BLADE SIZE | 2'' x 180'' |
NO. OF TEETH ON BLADE | 240 Tooth |
TOOTH SPACING | 3/4'' |
BLADE KERF | .565'' |
CLEANING SYSTEM | Band Wheel Scrapers |
TENSION STYLE | Air Over Hydraulic Tensioning |
VERTICAL TRAVEL | 9-5/8'' Vertical Travel on Blade |
DUST COLLECTION REQUIREMENT | 436 CFM @ Extraction Points |
DUST PORT SIZE OUTLET | (2) 4'' |
ARBOR DIAMETER | 2-1/2'' |
DIGITAL DISPLAY | Elevation |
CONVEYOR | 15-1/8'' Feed Conveyor 7-1/4'' Return Conveyor |
IDLE ROLLERS | (2) Idle Hold Down Rollers |
HOLD DOWN STYLE | Pneumatic Hold Down Rollers |
FLR INCLUDED | Filter, Lubricator, Regulator |
CFM AIR SUPPLY REQUIREMENT | 1/4'' Line @ 90 PSI |
SAFETY FEATURE | Enclosure |
OPERATION STYLE | Manual |
FENCE TYPE | Fixed |
FENCE DIMENSIONS | 6-5/8'' x 77-1/4'' |
BLADE GUIDE | Sparkless Steel |
BLADE WHEEL DIMENSIONS | 2'' x 28'' |
WHEEL CONSTRUCTION | Machined Cast |
FRAME CONSTRUCTION | Fabricated Steel |
TABLE CONSTRUCTION MATERIAL | Fabricated Steel |
DECIBEL RATING | 78 dB |
NET WEIGHT | 3424 Lbs. |
GROSS WEIGHT | 3702 Lbs. |
MACHINE DIMENSIONS | 107'' x 82'' x 72 |
PACKAGING DIMENSIONS | 113'' x 89'' x 81'' |
