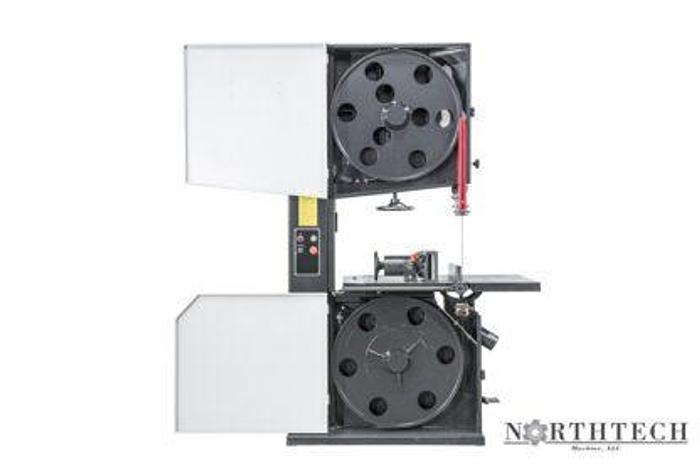

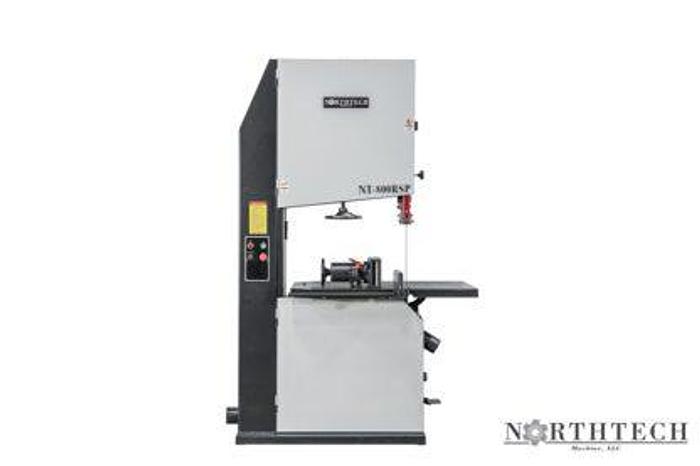

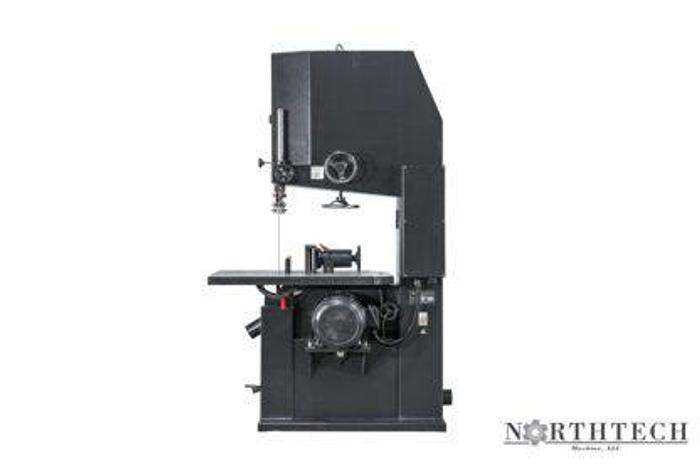

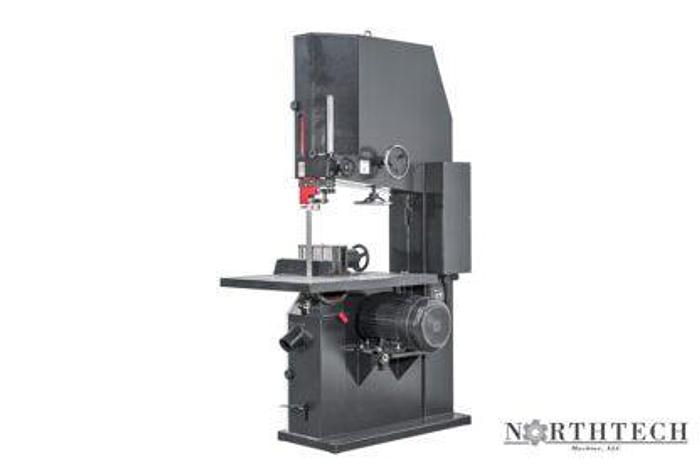

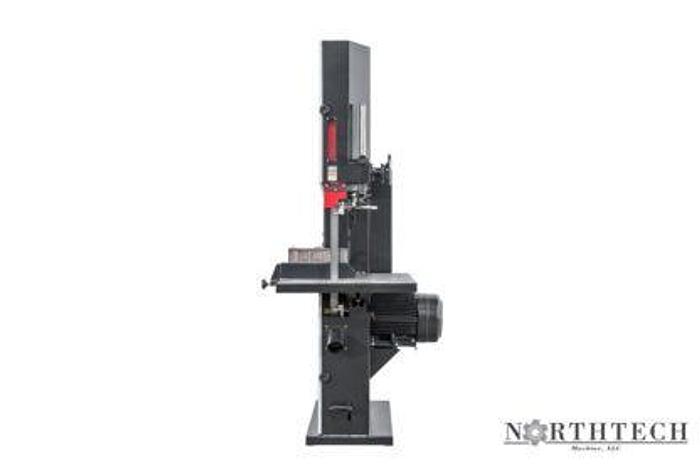

Northtech NT-800RSP 25HP VERTICAL BAND RESAW
![Northtech NT-800RSP](https://i.machineryhost.com/8c235f89a8143a28a1d6067e959dd858/6717f50553f231a7cbbbcad516404689/large-northtech-nt-800-rsp.jpg)
orCall +1 (607) 678-4374
Description
The Northtech 800RSP vertical resaw is our largest stocked vertical resaw. The 32″ band wheels, tilting work table, and 25 HP motor make for an extremely versatile machine. The NT-800RSP is available with an optional feeder that mounts to the cast iron table for even more production capability.
Specifications
Manufacturer | Northtech |
Model | NT-800RSP |
Condition | New |
Stock Number | NT-800RSP |
MAIN MOTOR HP | 25 HP |
VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
PHASE | 3 Phase |
AMP REQUIREMENT | 64.4 / 32.2 Amps |
FEED HP | 1 HP |
FEED SYSTEM | Retractable Knurled Wheel |
DRIVE SYSTEM | Inverter Controlled |
FEED SPEED RANGE | 0-56 FPM |
VARIABLE FEED SPEED | Inverter Controlled |
REVERSIBLE FEED | Yes |
TOTAL MACHINE HP | 26 HP |
APPROVED ELECTRICAL PARTS | CE Approved Components |
DUAL VOLTAGE MOTORS | 230/460 Volt |
CONTROL VOLTAGE | 220 Volt |
ASSISTED START | Wye Delta |
PASS-LINE | 39'' |
MAX. WORKING THICKNESS | 14-3/4'' |
ABLE TO CUT ANGLE | Yes |
ARBOR RPM | 5000 FPM |
BLADE SIZE | 2''x 217-1/2'' |
NO. OF TEETH ON BLADE | 216 |
TOOTH SPACING | 1'' |
BLADE KERF | 0.75'' |
TRACKING STYLE | Manual Adjustment |
TENSION STYLE | Handwheel Adjustment |
VERTICAL TRAVEL | 4-1/4'' - 14-3/4'' Guard |
DUST COLLECTION REQUIREMENT | 436 CFM @ Extraction Points |
DUST PORT SIZE OUTLET | (2) 4'' Dust Ports |
POWERED ROLLERS | (2) |
IDLE ROLLERS | (4) |
FLR INCLUDED | Filter Lubricator Regulator |
CFM AIR SUPPLY REQUIREMENT | 1/4'' Line @ 90 PSI |
FENCE TYPE | Adjustable |
FENCE DIMENSIONS | 3-5/8'' x 18'' |

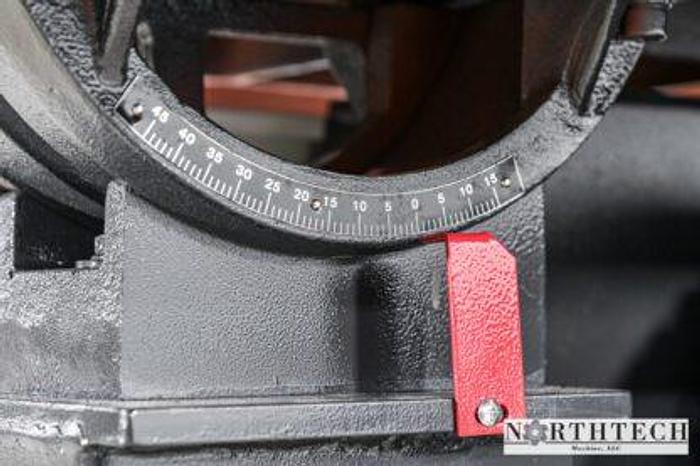

TILT-ABLE | 35 Degrees |

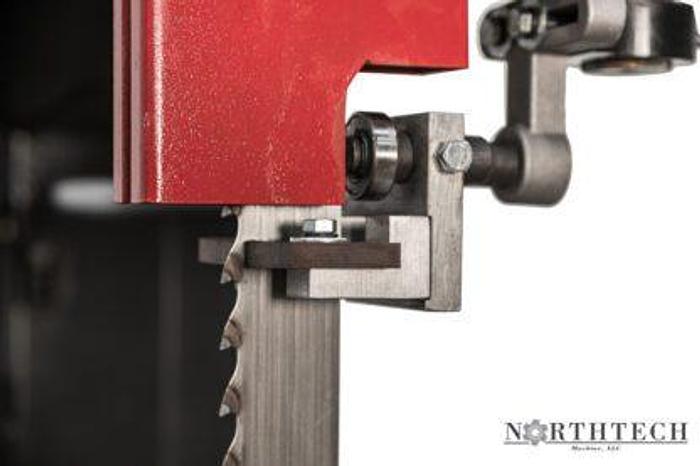

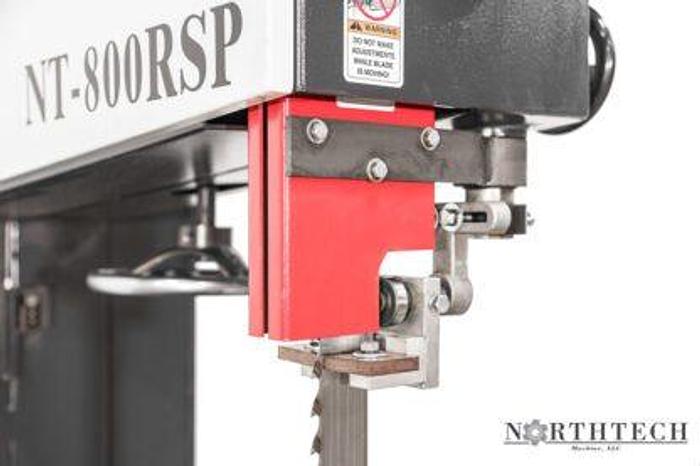

BLADE GUIDE | Phenolic |
BLADE WHEEL DIMENSIONS | 11 x 35 MM |
WHEEL DIMENSIONS | 2'' x 32'' |
WHEEL CONSTRUCTION | Machined Cast |
BRAKE SYSTEM | Foot Pedal |
FRAME CONSTRUCTION | Fabricated Steel |
WORKTABLE DIMENSIONS | 31-1/2'' x 45-1/4'' |
TABLE CONSTRUCTION MATERIAL | Machined Cast |
DECIBEL RATING | 78 dB |
NET WEIGHT | 1078 Lbs. |
GROSS WEIGHT | 2022 lbs. |
MACHINE DIMENSIONS | 70-1/2'' x 43'' x 97'' |
