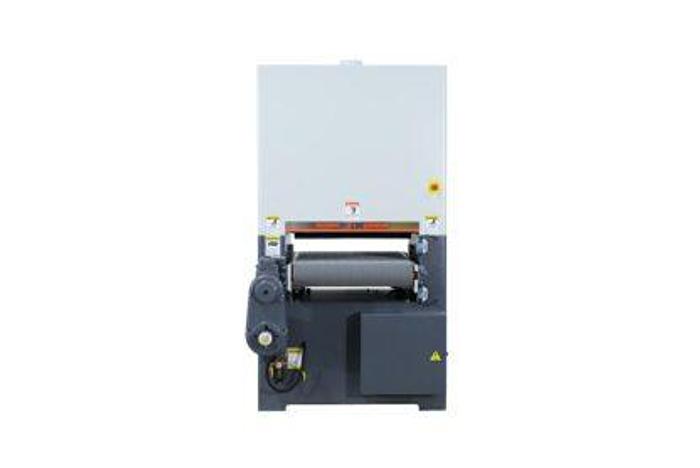

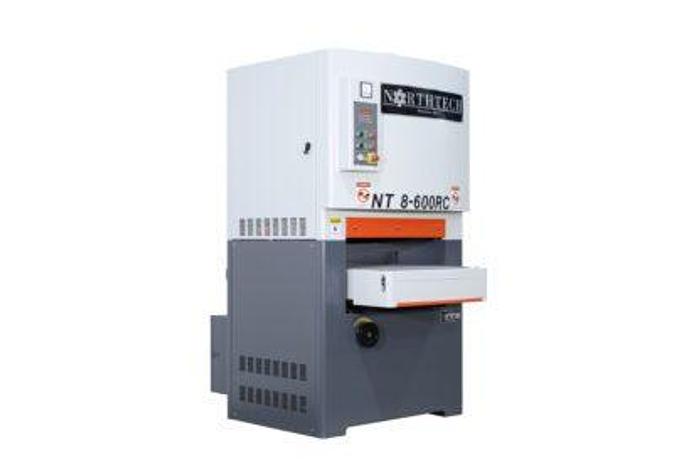

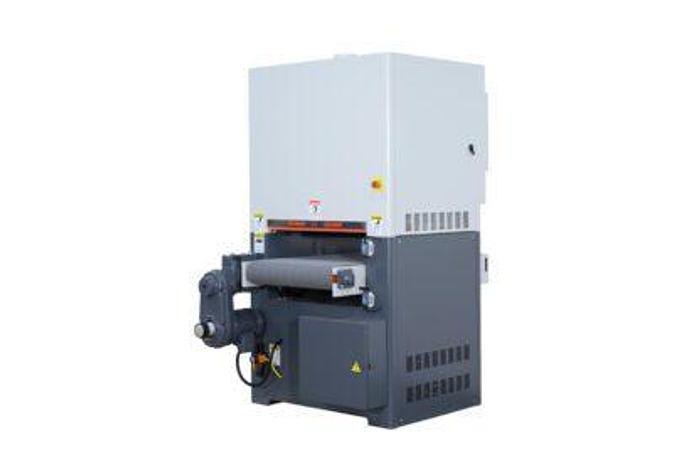

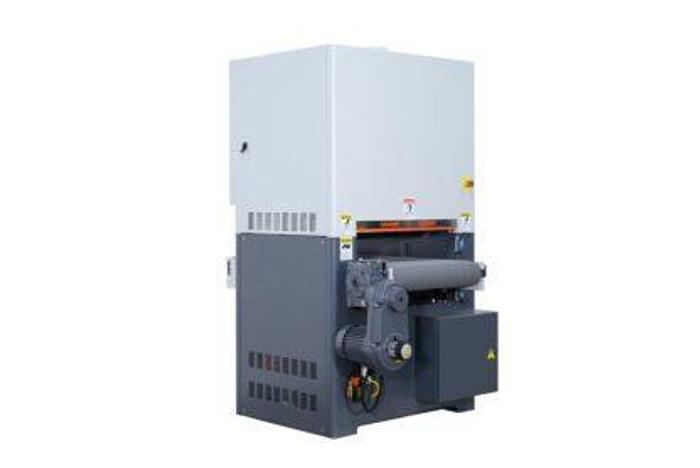

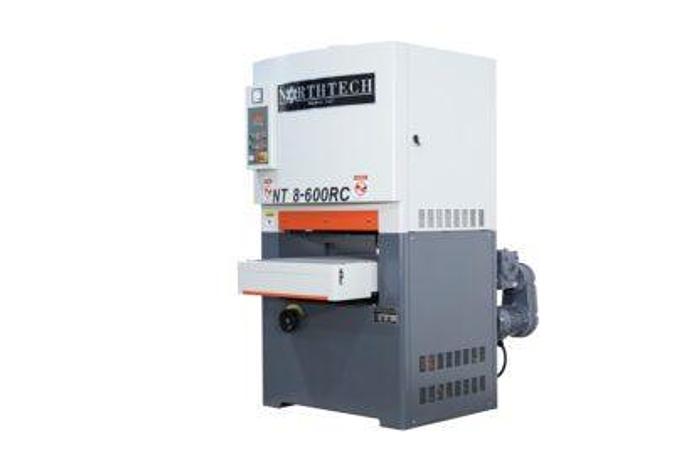

Northtech NT-8-600RC 24'' Double Head Wide Belt Sander
![Northtech NT-8-600RC](https://i.machineryhost.com/8c235f89a8143a28a1d6067e959dd858/d2a4d2d523f712b00b9350e1ce8e3b2f/large-northtech-nt-8-600-rc.jpg)
Northtech NT-8-600RC 24'' Double Head Wide Belt Sander
Contact us for price
Location:Dundee, NY
orCall +1 (607) 678-4374
Description
NT-600RC WIDE BELT SANDER 24″ 25X75″ SANDING BELT
Specifications
Manufacturer | Northtech |
Model | NT-8-600RC |
Condition | New |
Stock Number | NT-8-600RC |
MACHINE HP | 16-1/4 HP |
PHASE | 3 Phase |
AMP REQUIREMENT | 40 / 20 Amp |

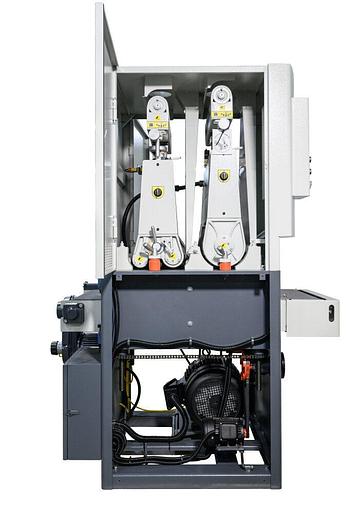

CONFIGURATION | Roller Combination |
1st HEAD | 8'' Fluted Rubber Roller |
2nd HEAD | Fixed 3-1/2'' Combination head with Platten |
FEED HP | 1 HP |
FEED SYSTEM | 24-3/8'' Rubber Feed Mat |

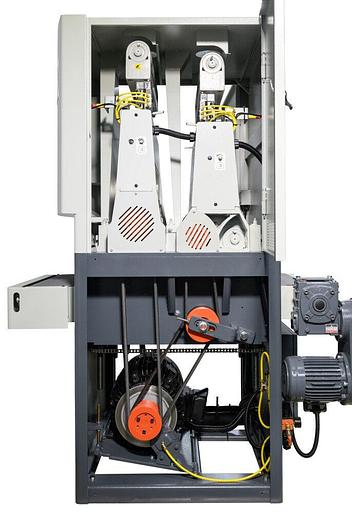

DRIVE SYSTEM | Motor Variable Speed Pulley Gear Box |
FEED SPEED RANGE | 17-58 FPM |
VARIABLE FEED SPEED | Adjustble |
ELEVATION HP | 1/4 HP |

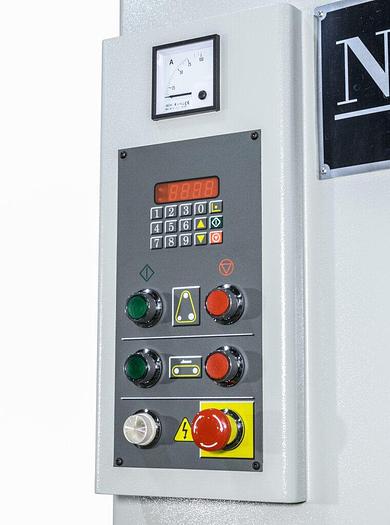

ELEVATION STYLE | Elevation Digital Readout |
ELEVATION SYSTEM | (4) Post Jack Screw |
TOTAL MACHINE HP | 16-1/4HP |
APPROVED ELECTRICAL PARTS | CE Approved Components |
DUAL VOLTAGE MOTORS | 230/460 Volt |
CONTROL VOLTAGE | 220 Volt |
PROGRAMABLE | Elevation |
PASS-LINE | 31-15/16'' - 37-9/16 |
MIN. WORKING LENGTH | 14'' |
MAX. WORKING WIDTH | 24'' |
MIN. WORKING THICKNESS | .155'' |
MAX. WORKING THICKNESS | 5.830'' |
SANDPAPER SIZE | 25-1/8'' x 75'' |
PLATEN SPECIFICATIONS | 1-3/4'' x 25-7/8'' |
1st BELT SPEED | 3666 FPM |
2nd BELT SPEED | 2695 FPM |
OSCILLATION STYLE | Photo Eye |
OSCILLATION RATE | 22 Cycles Per Minute Adjustable |
OSCILLATION TRAVEL | 3/8'' |
CLEANING SYSTEM | Jet Blow Off Photo Eyes |
TRACKING STYLE | Pneumatic Cylinder |
TENSION STYLE | Pneumatic Cylinder |
VERTICAL TRAVEL | 5-5/8 Table Travel |
DUST COLLECTION REQUIREMENT | 681 CFM @ Points of Extraction |
DUST PORT SIZE OUTLET | (4) 5'' Ports |
DIGITAL DISPLAY | Elevation |
CONVEYOR | 24-3/8 Rubber Feed Mat |
IDLE ROLLERS | (3) Idle Rollers |
PRESSURE SHOES | (3) Pressure Shoes |
HOLD DOWN STYLE | Idle Rollers / Pressure Shoes |
FLR INCLUDED | Filter, Lubricator, Regulator |
CFM AIR SUPPLY REQUIREMENT | 1/4'' Line @ 90 PSI |
EMERGENCY STOP | (2) |
REAR E STOP | (1) |
GUARDING | Full Enclosure |
OPERATION STYLE | Manual |
FRAME CONSTRUCTION | Fabricated Steel |
TABLE CONSTRUCTION MATERIAL | Fabricated Steel |
INFEED TABLE LENGTH | 10'' |
OUTFEED TABLE LENGTH | 7'' |
MEASURING METHOD | Encoder |
DECIBEL RATING | 82 dB |
NET WEIGHT | 2191 Lbs. |
GROSS WEIGHT | 2428 lbs. |
MACHINE DIMENSIONS | 60'' x 43'' x 76'' |
PACKAGING DIMENSIONS | 63'' x 45'' x 84'' |
