Northtech NT-735S 10HP Shaper With Sliding Table
Northtech NT-735S 10HP Shaper With Sliding Table
Contact us for price
Location:Dundee, NY
orCall +1 (607) 678-4374
Description

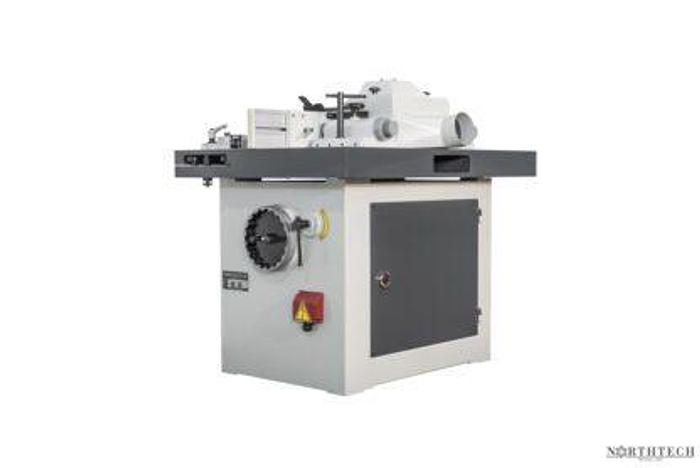

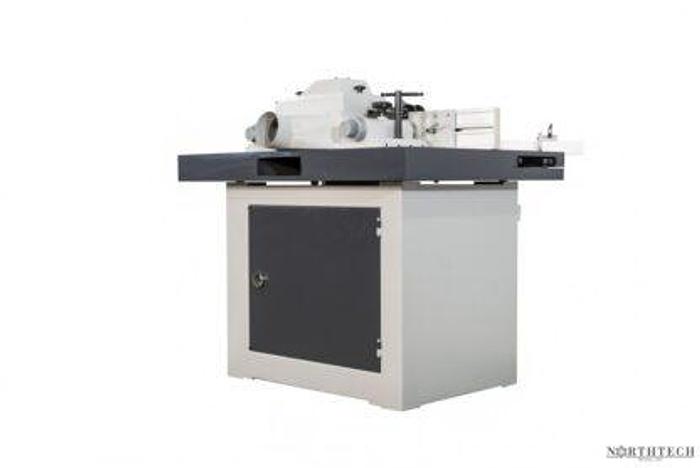

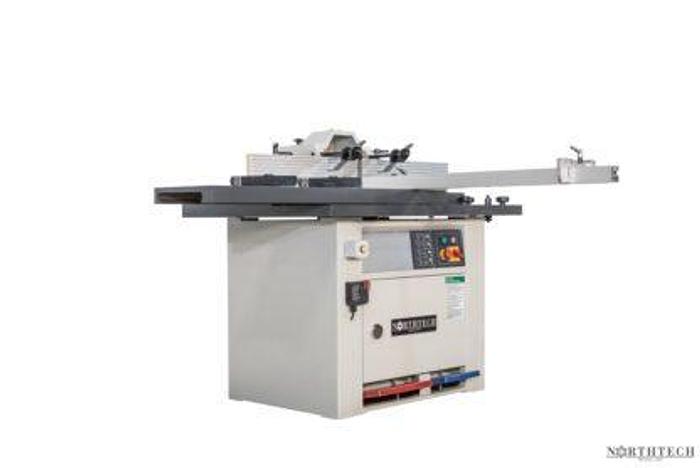

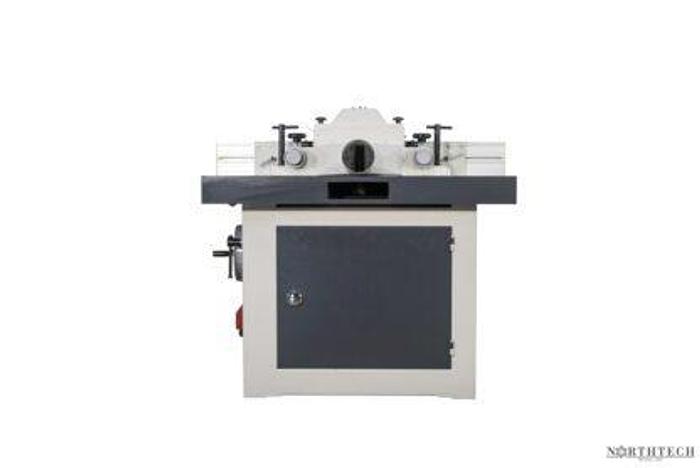

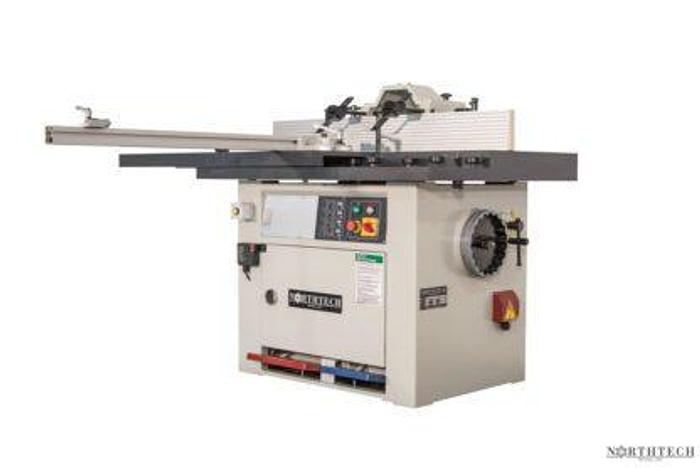

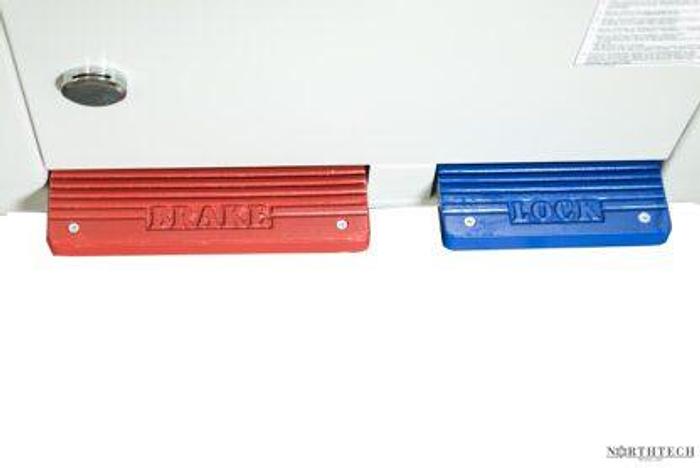

The NT 735S is the 735 shaper equipped with a sliding table. The 735 series features a large stable base, a foot-operated brake for quick spindle stop, and a foot-operated lock for easy tool changes. The oversized precision ground table on a solid steel cabinet provides stable vibration-free milling. The 10HP 4-speed interchangeable spindle provides flexibility for customer-specific applications.
Specifications
Manufacturer | Northtech |
Model | NT-735S |
Condition | New |
Stock Number | NT-735S |
MACHINE HP | 10 |
VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
PHASE | 3 Phase |
AMP REQUIREMENT | 26 / 13 Amps |
SPINDLE LENGTH | 6'' |
SPINDLE DIAMETER | 1-1/4'' |
SPINDLE RPM | 3000, 4500, 6000, 9800 RPM |
UNDER THE NUT CAPACITY | 5'' |
ELEVATION STYLE | Manual Wheel Adjustment |
ELEVATION SYSTEM | Quill Housing Jack Screw |
APPROVED ELECTRICAL PARTS | CE Approved Parts |
DUAL VOLTAGE MOTORS | 230/460 Volt |
CONTROL VOLTAGE | 110 Volt |
PASS-LINE | 35'' |
VERTICAL TRAVEL | 4-1/2'' on Spindle |
DUST COLLECTION REQUIREMENT | 681 CFM @ Extraction Point |
DUST PORT SIZE OUTLET | 5'' |
EMERGENCY STOP | (1) |
FENCE TYPE | Adjustable |
FENCE DIMENSIONS | (2) 5-3/4'' x 23-3/4'' |
SLIDING TABLE TRAVEL | 45'' |
BRAKE SYSTEM | Foot Pedal / Brake Shoe |
FRAME CONSTRUCTION | Fabricated Steel |
WORKTABLE DIMENSIONS | 36'' x 47-1/2'' |
TABLE CONSTRUCTION MATERIAL | Machined Cast |
DECIBEL RATING | 64 dB |
NET WEIGHT | 1476 Lbs. |
GROSS WEIGHT | 1638 Lbs. |
MACHINE DIMENSIONS | 48'' x 39'' x 46'' |
PACKAGING DIMENSIONS | 53'' x 42'' x 52'' |
