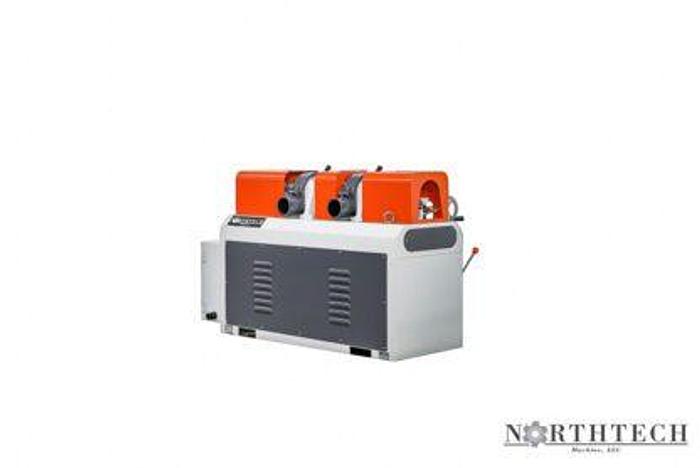

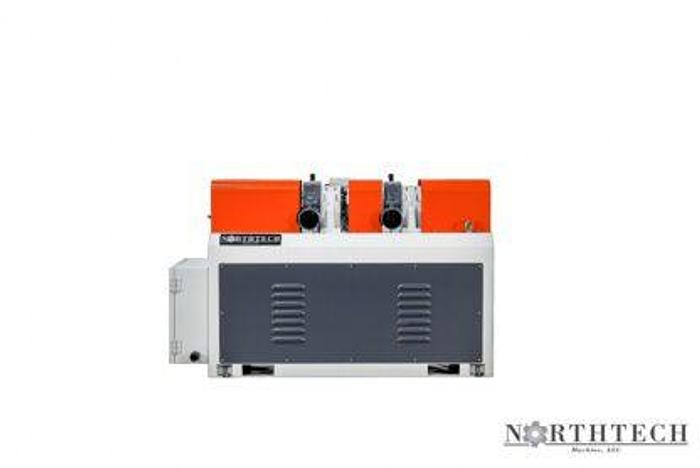

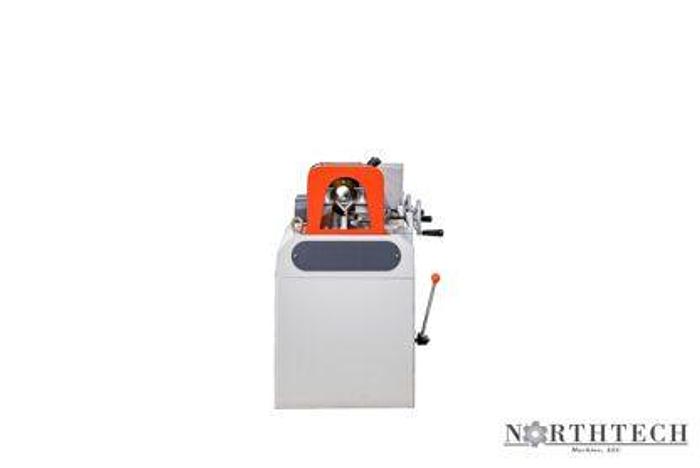

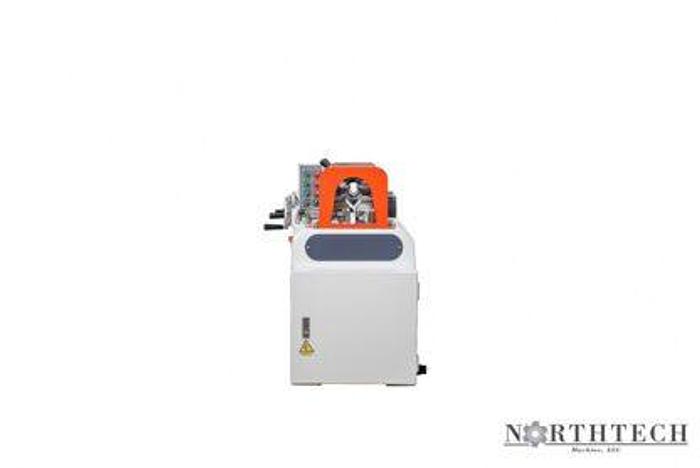

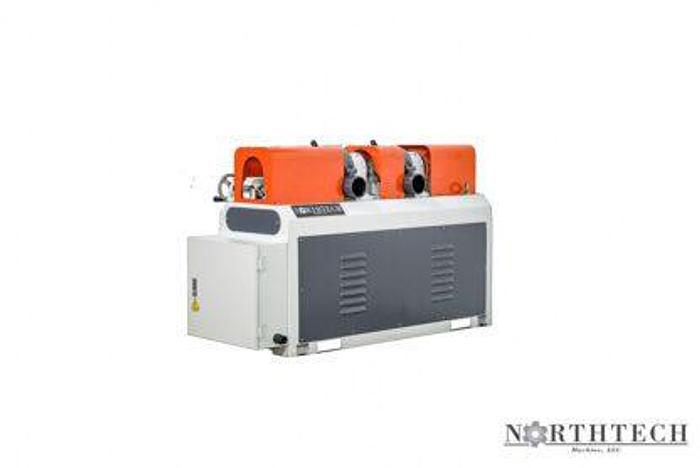

Northtech NT-RM80-2SS Round Rod Milling Double Heas

Northtech NT-RM80-2SS Round Rod Milling Double Heas

Contact us for price

Get Financing

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The NT RM80-2SS rod milling machine is designed to take square stock to round stock. Unlike a traditional moulder, the round rod machine is designed for perfectly cylindrical outputs. The 2 head design allows for greater stock removal while still providing a smooth finish. Heavy duty cast iron and steel construction is designed for industrial applications. Can be used for softwood, hardwood, acrylics and plastics.

Low Speed 2.7, 4.5, 6.4, 9.3 FPM

Standard Speed 11, 18.5, 27, 39.3 FPM

Show All

Specifications

ManufacturerNorthtech
ModelNT-RM80-2SS
ConditionNew
Stock NumberNT-RM80-2SS
MAIN MOTOR HP10 HP 1st Head / 7.5 HP 2nd Head
DUST COLLECTION REQUIREMENT436 CFM @ Extraction Points
GUARDINGHigh Visibility Clear View Guarding
MACHINE DIMENSIONS61'' x 26'' x 37''
PACKAGING DIMENSIONS68'' x 36'' x 46''
REVERSIBLE MOTORReversible Feed
VOLTAGE, FREQUENCY230/460 Volt 60Hz
PHASE3 Phase
AMP REQUIREMENT47.7 /23.9 Amps
Cutterhead RPM3400 RPM
1st HEAD10 HP
2nd HEAD7.5 HP
FEED HP2 HP

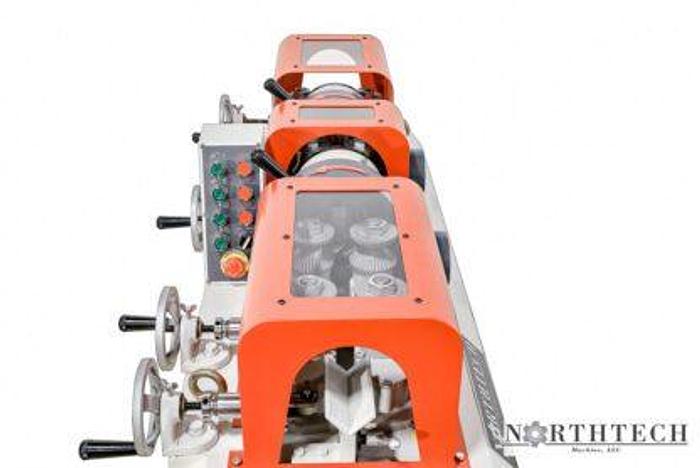

FEED SYSTEM4 Sets Feed Wheels
DRIVE SYSTEMMotor Gearbox Chain Gears
FEED SPEED RANGE11 - 40 FPM

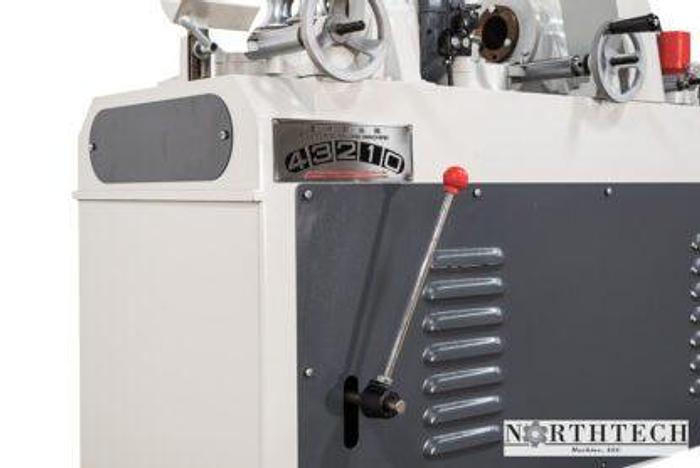

VARIABLE FEED SPEED4 Speed Transmission
REVERSIBLE FEEDYes
TOTAL MACHINE HP19.5
APPROVED ELECTRICAL PARTSCE Approved Parts
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
PASS-LINE30-1/2''
CUTTING ENVELOPE0.39'' - 3.11''
MIN. WORKING LENGTH17''
MAX WORKING DIAMETER3.11''
MIN WORKING DIAMETER0.39''
NO. OF INSERTS(2)
DUST PORT SIZE OUTLET(2) 4'' Ports
POWERED ROLLERS(4) Sets
OPERATION STYLEManual
FRAME CONSTRUCTIONCast / Fabricated Steel
DECIBEL RATING82 dB
NET WEIGHT1269 Lbs.
GROSS WEIGHT1504 Lbs.

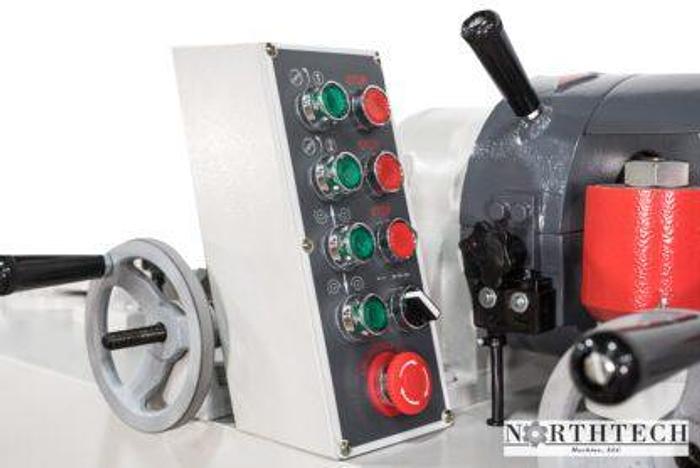

EMERGENCY STOP(1)
INSERT SIZE18 MM
