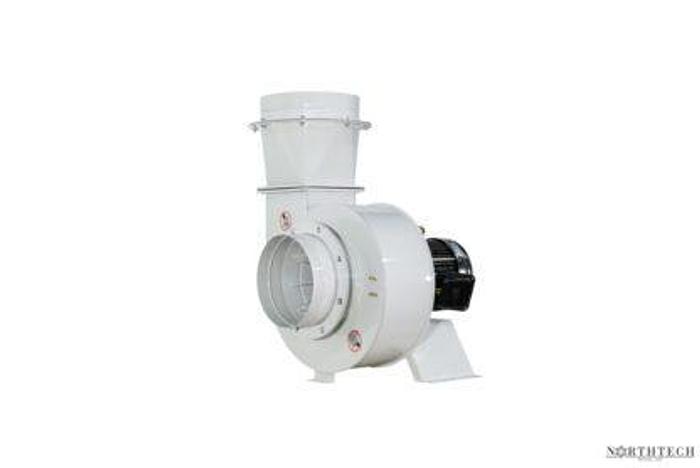

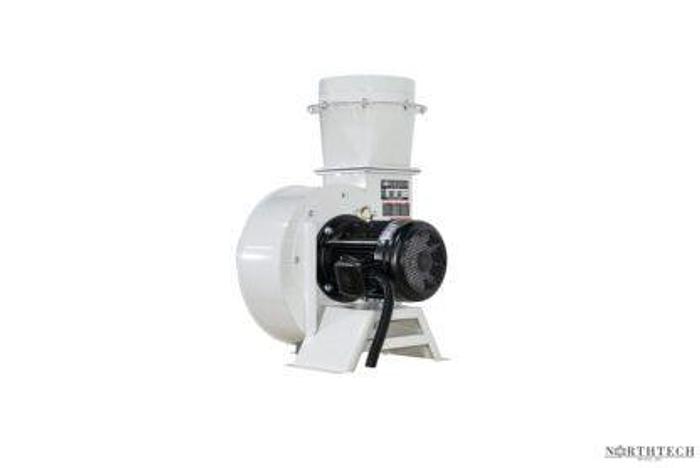

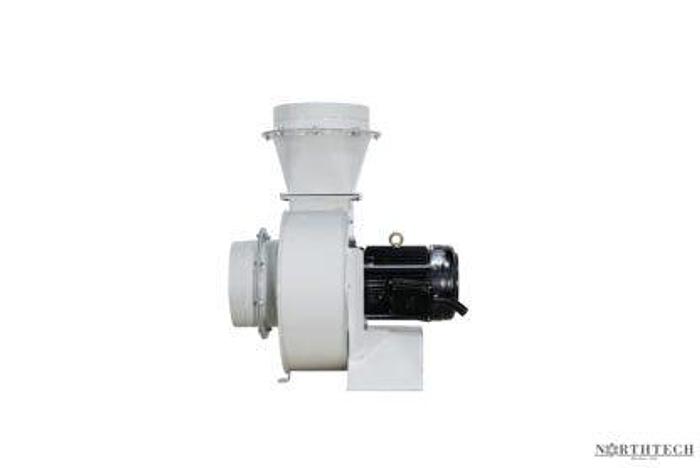

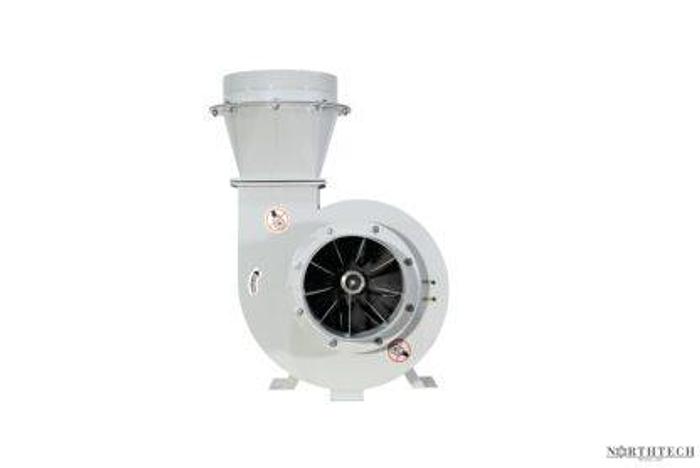

Northtech NT-TB10 10HP Transfer Blower
orCall +1 (607) 678-4374
Description

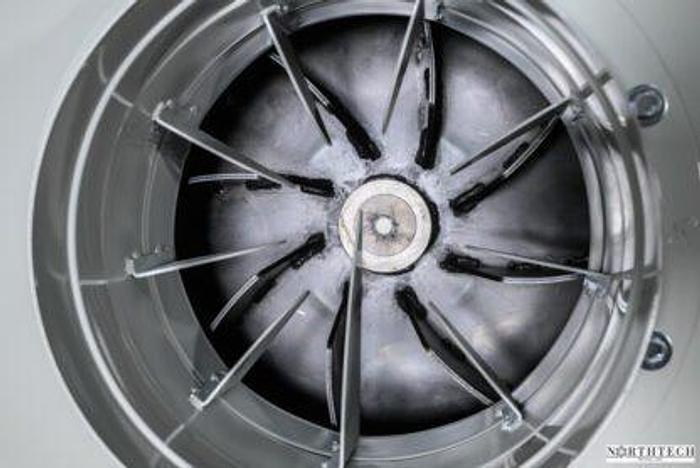

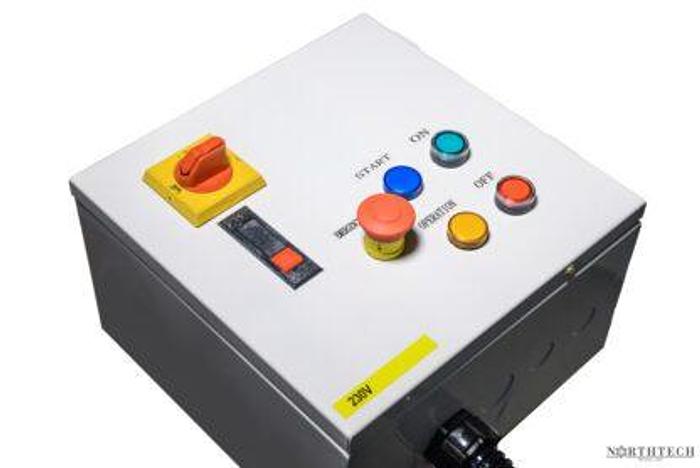

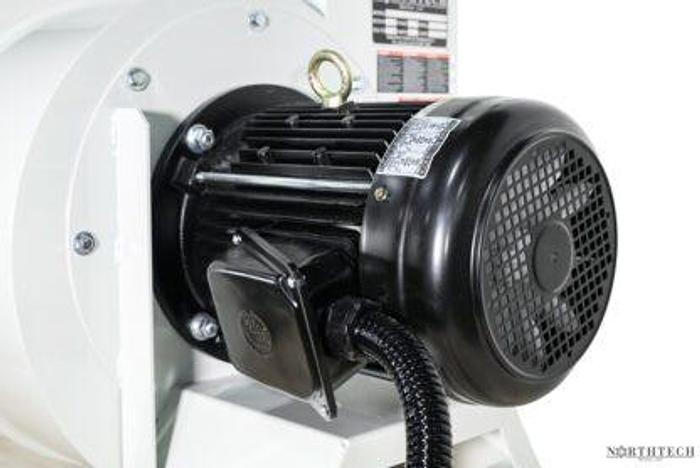

The NT TB10 is our 10HP direct drive transfer blower. The powerful direct drive design allows for a smaller footprint and rigid power delivery. The steel fabricated housing and frame provide long life while protecting the fan and motor. Northtech Transfer Blowers with controls and round pipe connection fitting make start-up quick and easy.
Specifications
| Manufacturer | Northtech |
| Model | NT-TB10 |
| Condition | New |
| Stock Number | NT-TB10 |
| MACHINE HP | 10 HP |
| DIRECT DRIVE (MOTOR) | Yes |
| VOLTAGE, FREQUENCY | 230/460 Volts 60HZ |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 25.8 / 12.9 Amps |
| TOTAL MACHINE HP | 10 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volts |
| CONTROL VOLTAGE | 220 Volt |
| ASSISTED START | Wye Delta |
| FREE AIR CFM | 6350 CFM |
| IMPELLER | 3-1/2'' x 14'' |
| TRANSFER BLOWER INLET | 12'' |
| TRANSFER BLOWER OUTLET | 14'' |
| FRAME CONSTRUCTION | Steel Construction |
| DECIBEL RATING | 90 dB |
| NET WEIGHT | 250 Lbs. |
| GROSS WEIGHT | 3065 Lbs. |
| MACHINE DIMENSIONS | 38'' x 25'' x 31'' |
| PACKAGING DIMENSIONS | 34'' x 30'' x 32'' |
