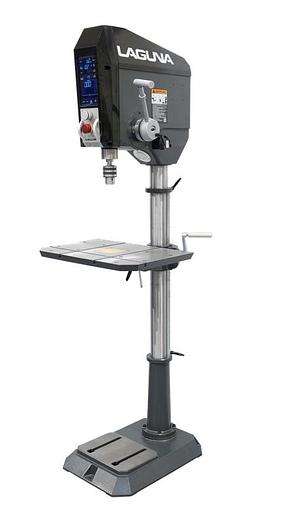

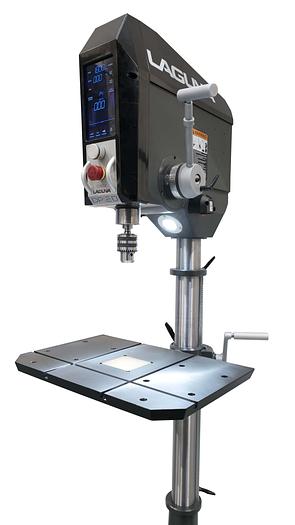

Laguna DP|20 20'' Drill Press
Description
Introducing the new DP20: Where Industrial Power Meets Modern Design. The DP20 is the latest innovation in our classic line, engineered for industrial-grade performance. At its heart is a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications. The state-of-the-art Touch Screen Smart Panel, featuring a unique blue LCD digital readout, provides real-time RPM, Load, and Quill Depth, enhancing functionality and aesthetics. The large 3-3/4″ x 6-7/8″ touch screen is a standout feature among drill presses in this range, surpassing competitors with its size and touch capability.
Key Features:

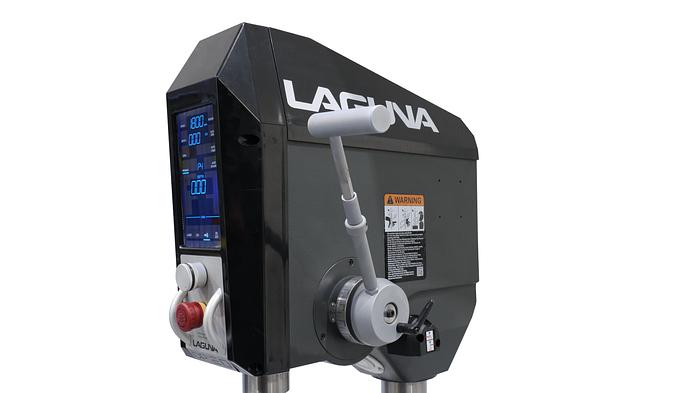

- Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout.
- 1.5 hp PWM Motor: Constant torque with forward and reverse functions.

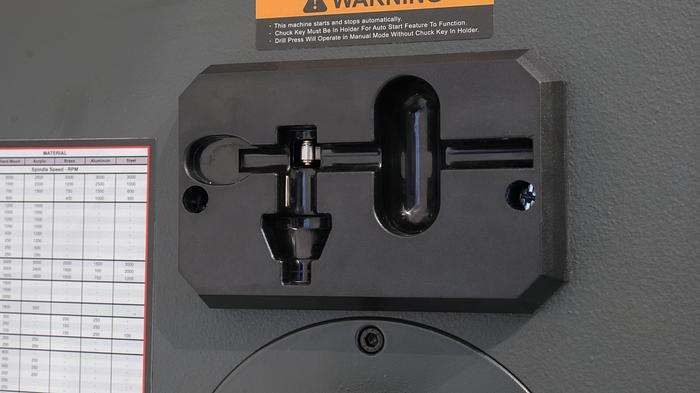

- Auto-Start Function: Starts and stops with the movement of the quill.

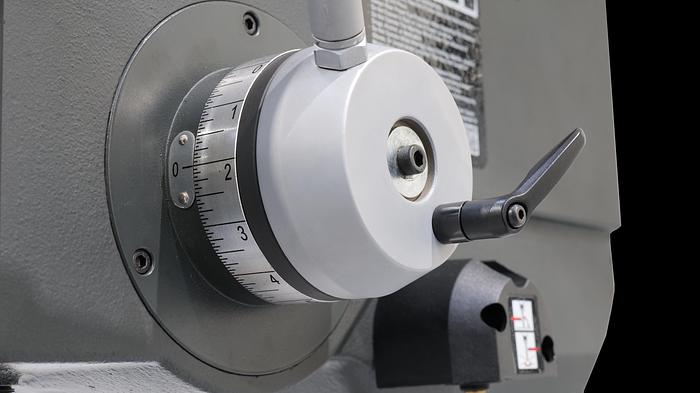

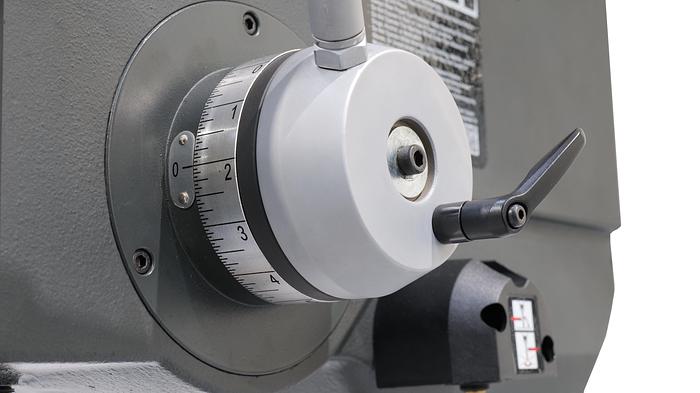

- Precision Depth Control: Electronic depth setting.
Optional Accessories
- Work clamps for T-slot
- Quick clamps for Clamp Holes
- Bolt-on Work Lamps
Specifications
| Manufacturer | Laguna |
| Model | DP|20 |
| Condition | New |
| Stock Number | MDP20-1 |
| Motor | DC Brushed PWM - (Pulse Width Modulation) |
| POWER | 1.5 HP - 15 AMP |
| VOLTAGE | 110-120 volt |
| FREQUENCY | 60 Hz |
| WHEEL SPEED | Electronic Variable 60 – 3600 RPM Forward / Reverse |
| POWER TRANSFER | Poly-groove drive belt |

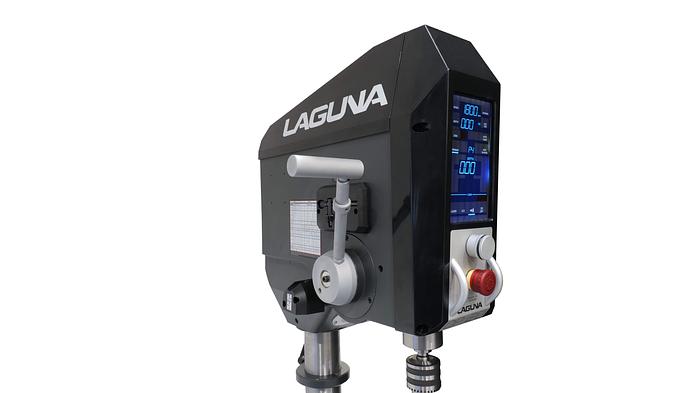

| MACHINE CONTROL | LCD Touch Screen Smart Panel |
| BASE SIZE | 22.83″ x 16.92″ |
| COLUMN DIAMETER | 3.15″ (80 mm) |
| OVERALL HEIGHT | 3.15″ (80 mm) |
| WEIGHT | Net wt 304 lbs. (138 kg) - Gross wt 326 lbs. (148 kg) |
| PACKAGING DIMENSIONS | 72.5″ x 28.5″ x 20″ - 1840 x 725 x 406mm |
| MEMORY SETTINGS | 5 Memory Settings |
| SWING | 20″ (1830 mm) |
| SPINDLE TAPER | MT2 |
| QUILL | 6″ Travel – 2.6″ Diameter |

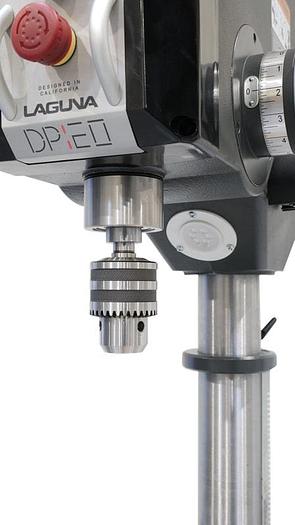

| CHUCK CAPACITY | 5/64 – 5/8″ (2 – 16 mm) |

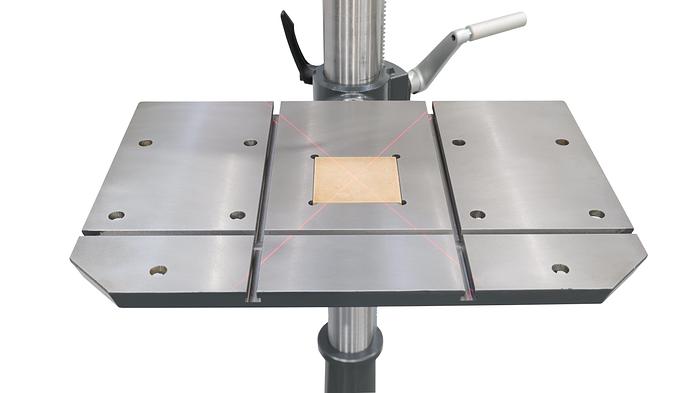

| TABLE | 15″ x 22″ - 3 T-slots - 10 Clamp Holes |

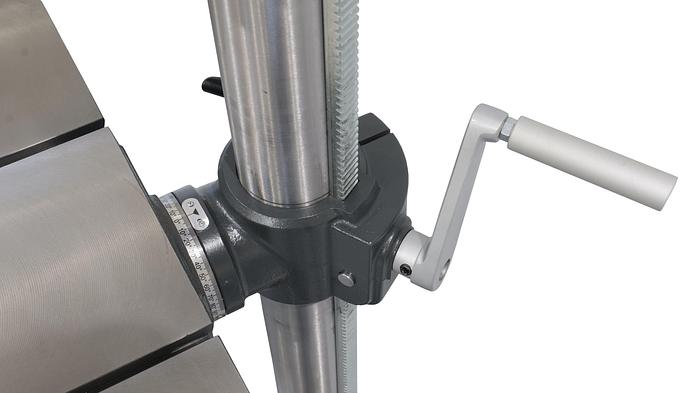

| TABLE MOVEMENT | +/- 90 Degree Tilt - 360 Degree Swivel around column |
| SPINDLE TO TABLE | 30″ Max |
| SPINDLE TO BASE | 49.5″ Max |
