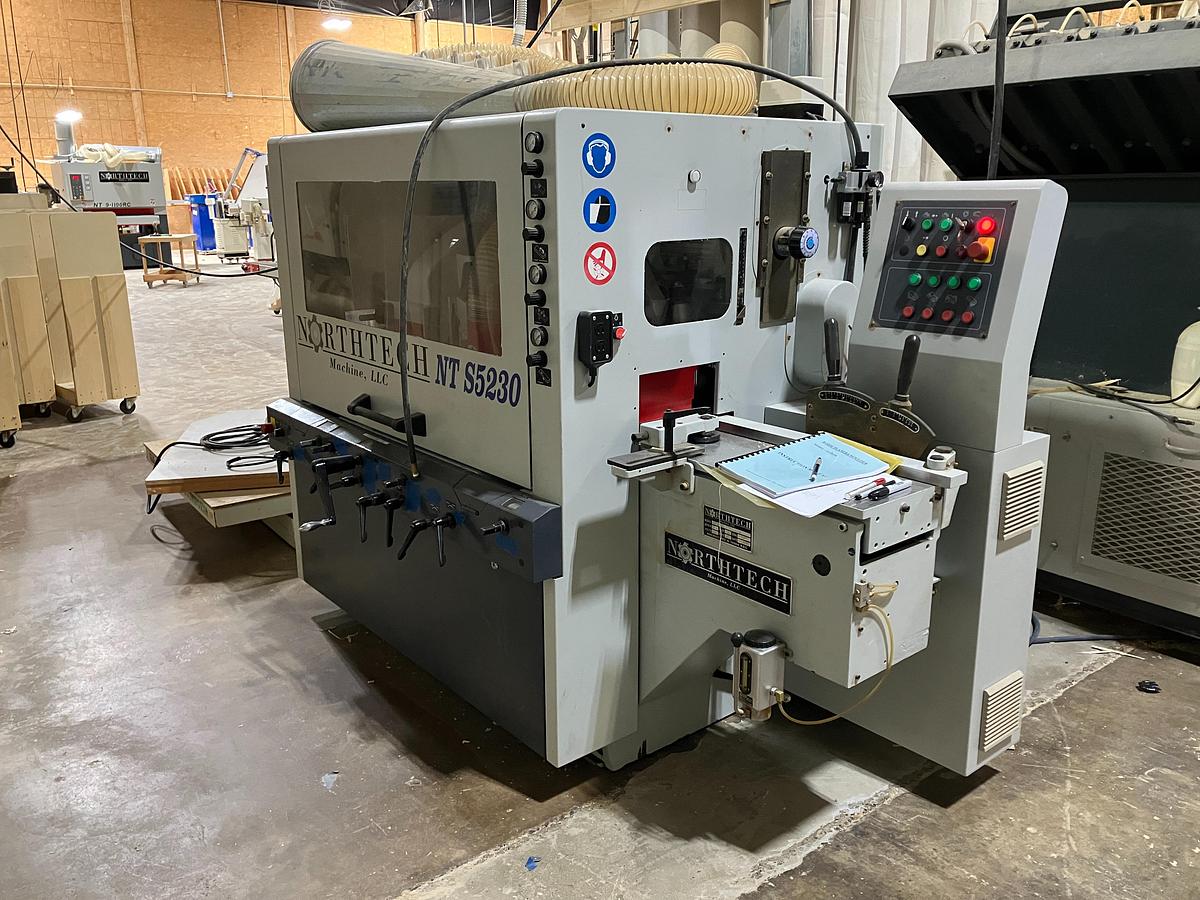

2022 Northtech NT-S5230 5 Head Moulder

Like New 2022 Moulder coming out of a shop dispersal.

We can ship anywhere in the US

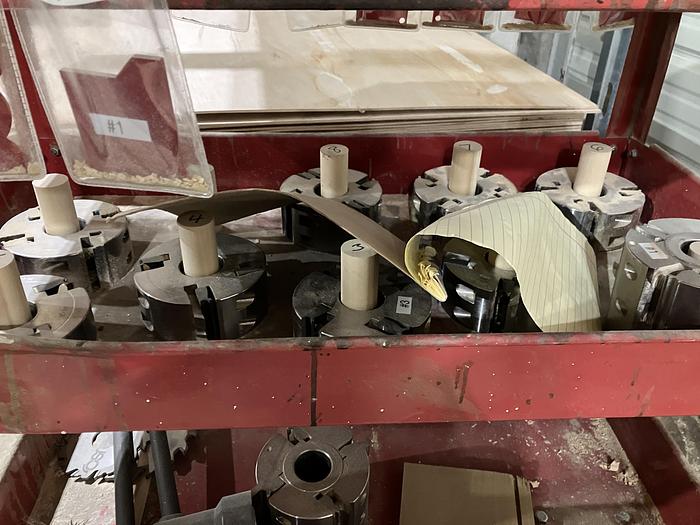

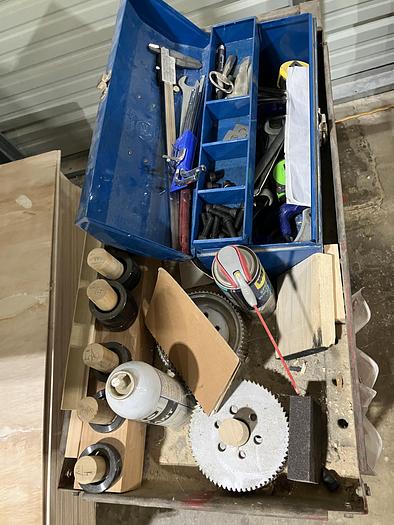

Comes with some tooling and heads.

The NT S5230 is a compact heavy duty 5 head moulder with large moulder capacity . The 6″ x 9″ capacity moulder with a 5 head double bottom configuration provides more flexibility for a larger selection of profiles while maintaining a compact footprint. Features such as chrome table, Siko mechanical readouts, bed oiler, and 40mm 6000RPM spindles are standard. Many upgradeable options for operator convenience makes the S series is an excellent option when space matters.

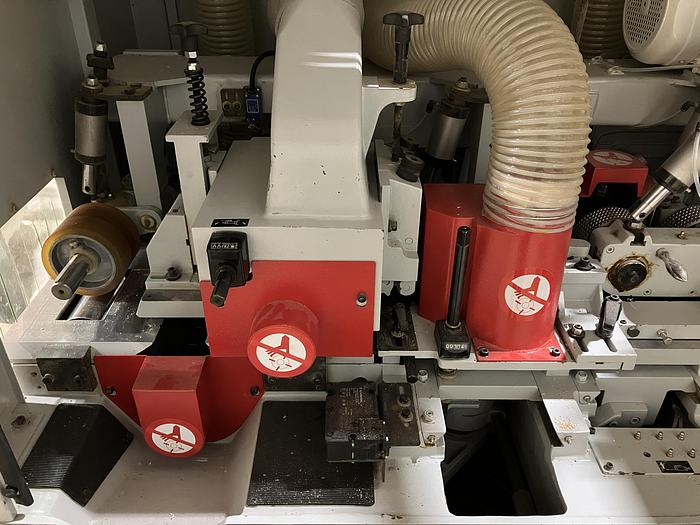

SPINDLE ARRANGEMENT

• 1st - Bottom horizontal: 7.5HP

• 2nd & 3rd Left/Right vertical: 15HP

• 4th - Top horizontal: 7.5HP

• 5th - Bottom horizontal: 7.5HP

• Spindle speed: 6000RPM

• Spindle diameter: 40mm

FEED SYSTEM

• Feeding motor: 3HP

• Elevation motor: 1/3HP

• Feeding speed: 19-80FPM

PRODUCT DIMENSIONS

• Width: 10mm - 230mm (1/2" - 9")

• Thickness: 7mm - 125mm (5/16" - 5")

FEATURES:

• Infeed table length: 51"

• Hard chrome plated table

• Incorporated bed roller

• (3) 4 Wing 5" x 9", corrugated knife stock moulder heads for 40mm (Included)

• (2) 4 Wing 5" x 4", corrugated knife stock moulder heads for 40mm (Included)

• Net Weight: 6,173lbs

• Gross Weight: 6,835lbs

• Machine Dimensions: (L) 102" x (W) 53" x (H) 68"
