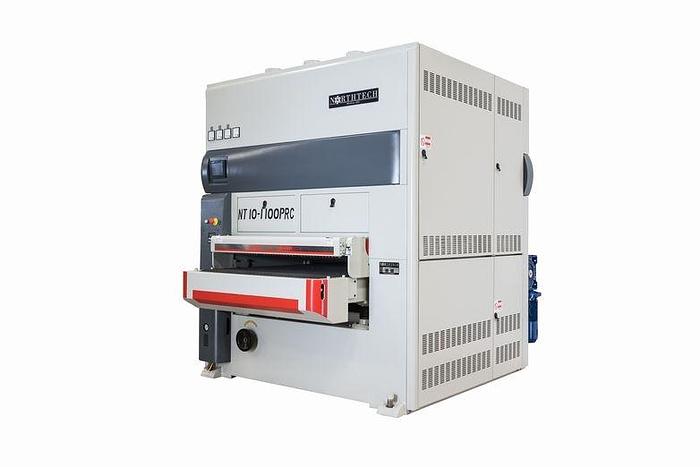

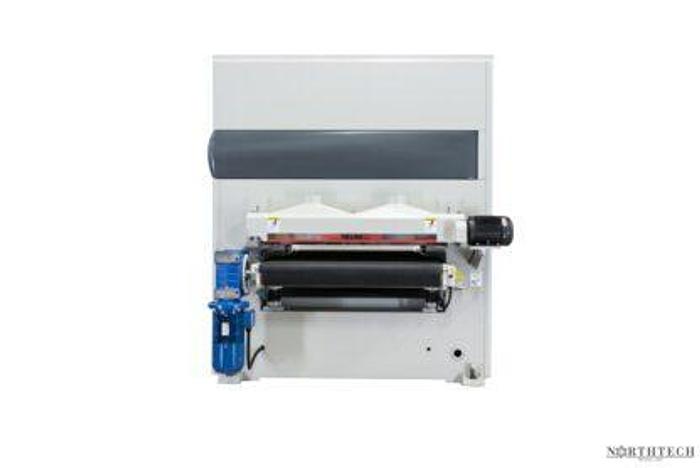

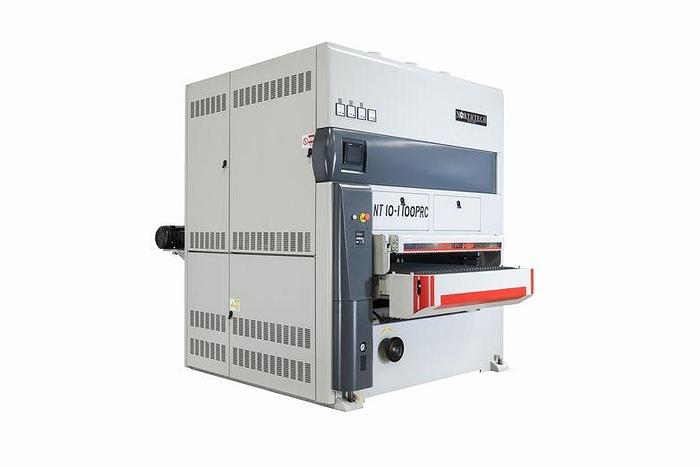

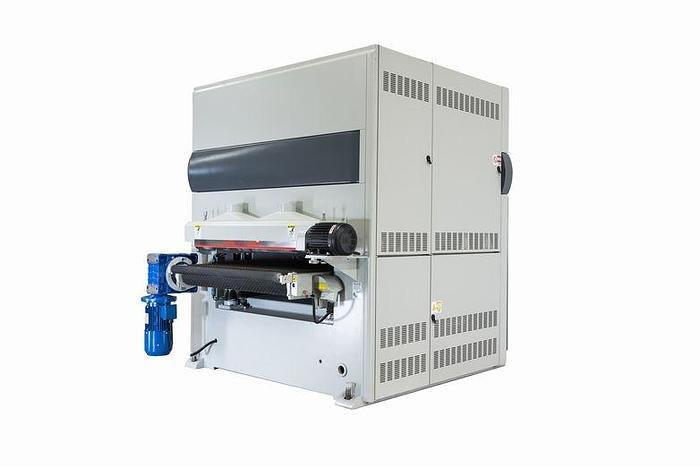

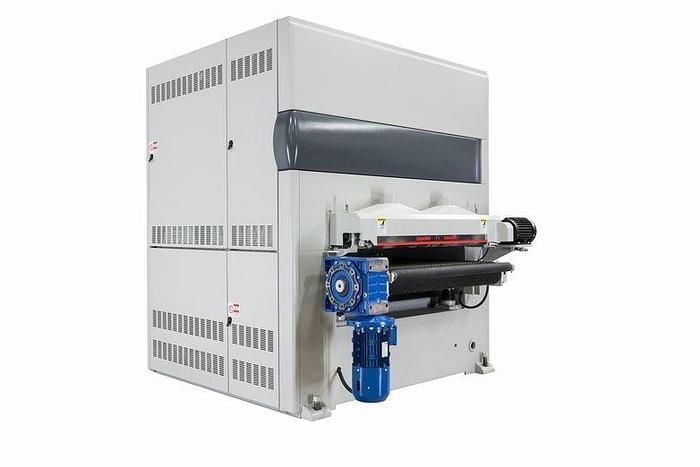

Northtech NT-10-1100PRC 43'' 3-Head Planer Sander
Northtech NT-10-1100PRC 43'' 3-Head Planer Sander
Contact us for price
Location:Dundee, NY
orCall +1 (607) 678-4374
Description
Northtech Planer Sanders have been in service for decades. The NT-1100PRC incorporates a planer head and wide belt sander in the same machine. The NT-1100PRC has over 40″ of working width and combination planer head and (2) sanding heads in the same frame. While most commonly used for glued up panels, the heavy stock removal capability on the first head makes it ideal for many dierent applications needing heavy stock removal and a high quality finish in one pass.
Specifications
Manufacturer | Northtech |
Model | NT-10-1100PRC |
Condition | New |
Stock Number | NT-10-1100PRC |
MACHINE HP | 117 HP |
VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
PHASE | 3 Phase |
AMP REQUIREMENT | 272 / 136 Amps |
CONFIGURATION | Planer Roller Cmbination |
1st HEAD | 40 HP 7'' Spiral Cutter Head |
2nd HEAD | 40 HP 10'' Spiral Fluted Rubber Rolle |
3rd HEAD | 30 HP 6'' Spiral Fluted Rubber Roller with Platen |
BRUSH MOTOR HP | 1 HP |
FEED HP | 5 HP |
FEED SYSTEM | 43'' Rubber Feed Mat |
DRIVE SYSTEM | Motor Gear Box Inverter Controlled |
FEED SPEED RANGE | 14-62 FPM |
VARIABLE FEED SPEED | Inverter Controlled |
ELEVATION HP | 1 HP |
ELEVATION STYLE | Touch Screen Control |
ELEVATION SYSTEM | 4 Post Jack Screw |
TOTAL MACHINE HP | 117 HP |
APPROVED ELECTRICAL PARTS | CE Approved Parts |
DUAL VOLTAGE MOTORS | 230/460 Volt |
CONTROL VOLTAGE | 220 Volt |
PROGRAMABLE | Elevation / Feed Speed |
TOUCH SCREEN | 7'' Touch Screen |
MIN. WORKING LENGTH | 20'' |
MAX. WORKING WIDTH | 43'' |
MIN. WORKING THICKNESS | .372'' |
MAX. WORKING THICKNESS | 4.7'' |
ROWS OF CUTTERS | 6 Rows |
NO. OF INSERTS | 264 Inserts |
INSERT SIZE | 30 x 12 x 2.5 MM |
SANDPAPER SIZE | 43'' x 103'' |
PLATEN SPECIFICATIONS | 4'' x 44-1/2'' |
1st BELT SPEED | 5150 FPM |
2nd BELT SPEED | 2700 FPM |
OSCILLATION STYLE | Pneumatic Cylinder |
OSCILLATION RATE | 16 Cycles Per Minute |
OSCILLATION TRAVEL | 1/2'' |
CLEANING SYSTEM | Jet Blow Off Photo Eye |
TRACKING STYLE | Photo Eye |
TENSION STYLE | Pneumatic Cylinder |
CONVEYOR | Seamless |
IDLE ROLLERS | 12 Idle Rollers |
PRESSURE SHOES | 4 Pressure Shoes |
HOLD DOWN STYLE | Pressure Shoes with Internal Rollers |
KICKBACK FINGERS | (45) 1/4'' Fingers |
CFM AIR SUPPLY REQUIREMENT | 3/8 Line @ 90 PSI |
EMERGENCY STOP | Push Button / Push Bar |
REAR E STOP | Yes |
GUARDING | Full Enclosure |
BRAKE SYSTEM | 3 Pneumatic Disc Brakes |
FRAME CONSTRUCTION | Fabricated Steel |
MEASURING METHOD | Encoder |
DECIBEL RATING | 78 dB |
NET WEIGHT | 13228 Lbs. |
GROSS WEIGHT | 14000 Lbs. |
MACHINE DIMENSIONS | 104'' x 74'' x 92'' |
PACKAGING DIMENSIONS | 115'' x 79'' x 99 |
