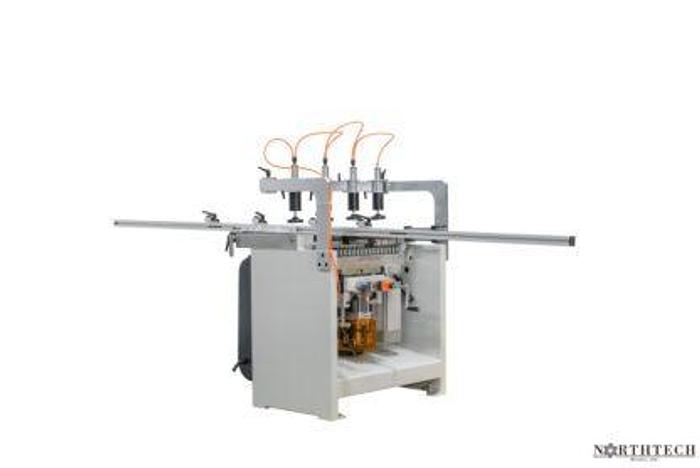

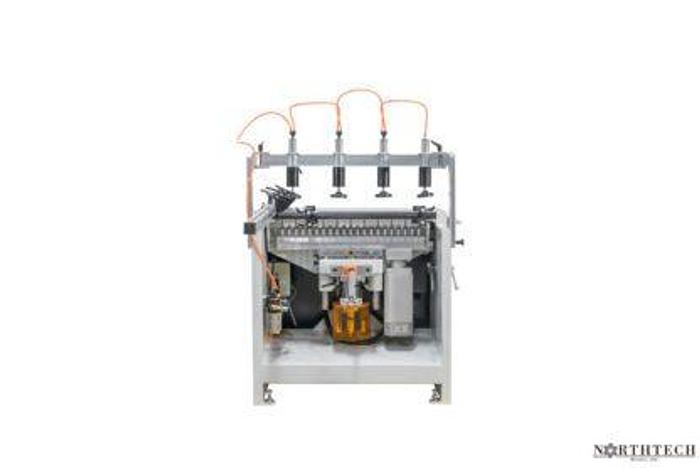

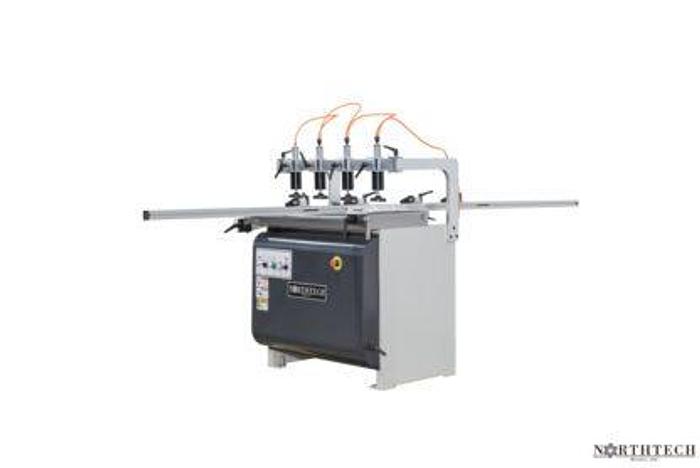

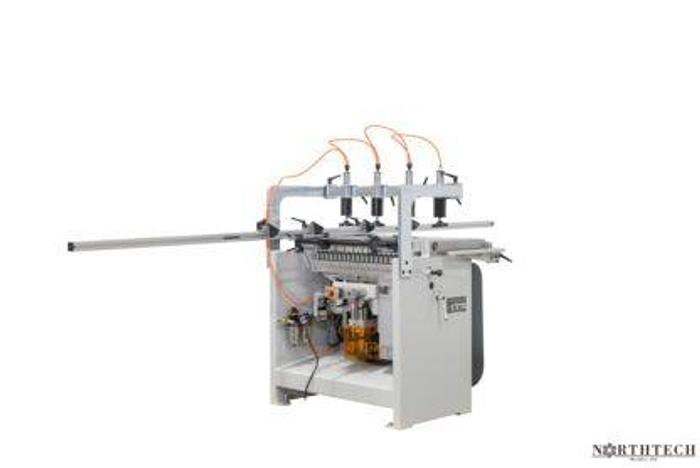

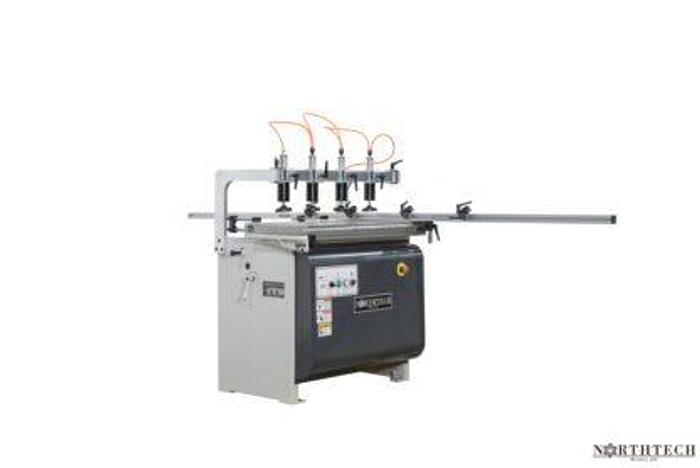

Northtech NT-CB1-21T (21) SPINDLE CONSTRUCTION BORING MACHINE
Northtech NT-CB1-21T (21) SPINDLE CONSTRUCTION BORING MACHINE
Contact us for price
Location:Dundee, NY
orCall +1 (607) 678-4374
Description
Northtech NT-CB1-21T (21) SPINDLE CONSTRUCTION BORING MACHINE
Specifications
| Manufacturer | Northtech |
| Model | NT-CB1-21T |
| Condition | New |
| Stock Number | NT-CB1-21T |
| MACHINE HP | 2.5 HP |
| DIRECT DRIVE (MOTOR) | Direct Drive |
| VOLTAGE, FREQUENCY | 230/460 Volt 60HZ |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 16/8 Amps |

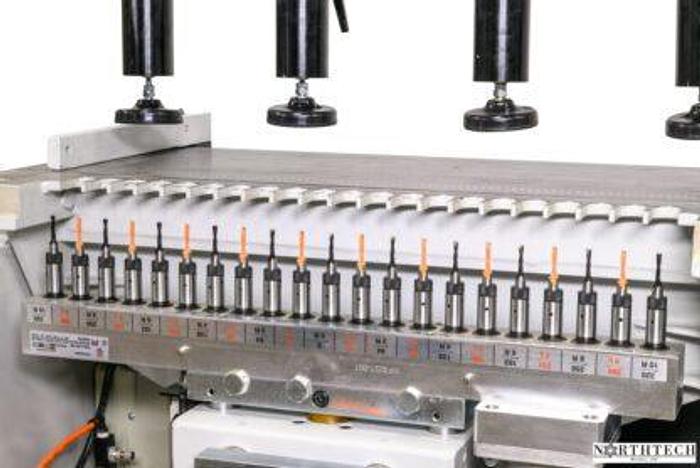

| SPINDLE ARRANGEMENT | 21 Spindle Fixed |
| SPINDLE DIAMETER | 10 MM |
| SPINDLE RPM | 3500 RPM |
| FEED SYSTEM | Pneumatic Cylinder |
| FEED SPEED RANGE | Adjustable Flow Control Valve |
| VARIABLE FEED SPEED | Flow Control Valve |
| ELEVATION STYLE | Manual Handle Adjustment |
| ELEVATION SYSTEM | Handle Jack Screw |
| TOTAL MACHINE HP | 2.5 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | Line Voltage |
| HORIZONTAL TRAVEL | 2-3/16'' Travel |
| VERTICAL TRAVEL | 6 Position Turret |
| CYCLES/MINUTE | 12 Cycles a Minute Adjustable |
| HOLD DOWN STYLE | 4 Pneumatic Clamps |
| TOTAL CLAMPS | 4 |
| FLR INCLUDED | Filter, Lubricator, Regulator |
| CFM AIR SUPPLY REQUIREMENT | 3/8'' Line @ 90 PSI |
| EMERGENCY STOP | (1) Front E-Stop |
| OPERATION STYLE | Foot Pedal |
| FENCE TYPE | Adjustable |
| FENCE DIMENSIONS | 1-5/8'' x 16'', 1-5/8'' x 118-1/4'' |
| ADJUSTABLE STROKE | 6 Position Turret |
| TILT-ABLE | 0-90 Degrees |
| FRAME CONSTRUCTION | Fabricated Steel |
| WORKTABLE DIMENSIONS | 14-3/8'' x 35-1/2'' |
| DECIBEL RATING | 78 dB |
| NET WEIGHT | 688 Lbs. |
| MACHINE DIMENSIONS | 33'' x 39'' x 47'' |
| PACKAGING DIMENSIONS | 44'' x 36'' x 55'' |
