Powermatic, PM2013B-3, 20" Bandsaw, 5HP 3PH 230/460V

Powermatic, PM2013B-3, 20" Bandsaw, 5HP 3PH 230/460V

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.


  • Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned

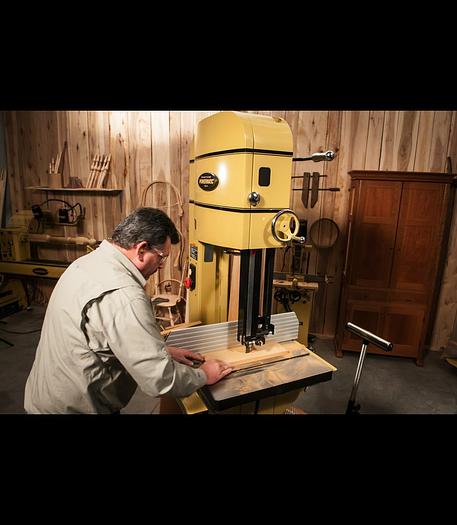

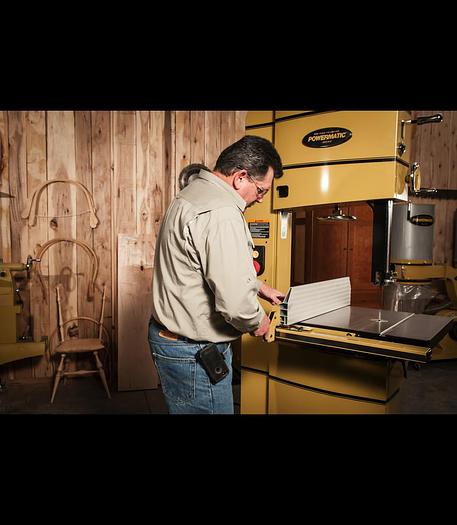

  • Exclusive Powermatic T-square style Accu-FenceĀ® maximizes accuracy and safety
  • Heavy duty upper wheel support and tracking mechanism for smooth operation
  • High end blade guides with tool less adjustment provide stability, increasing cut accuracy

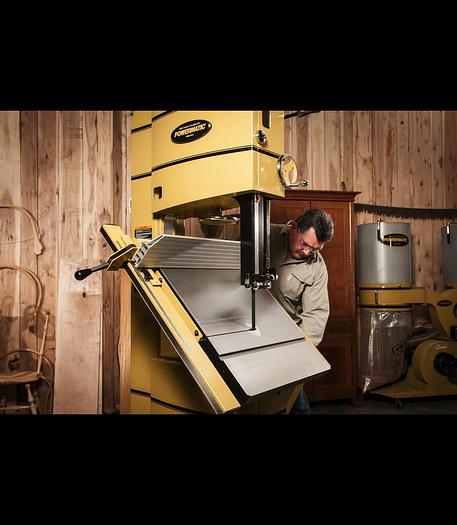

  • Rack and pinion table tilt system allows for easy and accurate adjustments

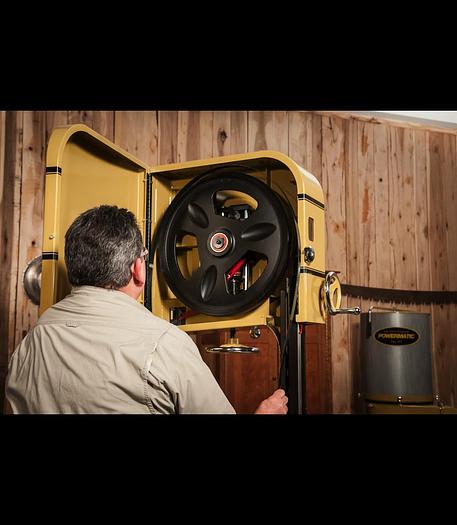

  • Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
  • Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
  • Accu-Fence has complete adjustability for aligning to blade and squaring to table

Specifications

ManufacturerPowermatic
ModelPM2013B
ConditionNew
Stock Number1791258B
Blade Length (In.)170
Blade Speed (SFPM)2300/4400
Cutting Capacity Height (In.)18
Cutting Capacity Width (In.)20
Dust Collection Minimum CFM Required600
Dust Port Outside Diameter (In.)4
Minimum Saw Blade Width (In.)1/4
Motor Phase3
Motor Power (HP)5
Motor Voltage (V.)230/460
Prewired Voltage (V.)230
Recommended Circuit Size (Amps.)20
Style (Type)Floor
Table Height from Floor (In.)36
Table T-Slot (In.)3/4
Table Tilt (Deg.)45 Right / 10 Left
