Northtech, NT-CS36L Timber Up Cut Saw (Left Hand)
Northtech, NT-CS36L Timber Up Cut Saw (Left Hand)
Contact us for price
Location:Dundee, NY
Description
The NT CS36L Up Cut Saw is the largest cross cut saw we offer. Left handed Up Cut Saws have the blade on the left side of the machine as you face the front of the machine and material is fed from the right to the left. Using a 36″ diameter blade the CS36 has an unheard of 2″x33″ cut capacity making it the best saw for large parts. This machine comes standard with stroke speed control, emergency stop, safety interlock on blade door, guarding, foot operation and stroke adjustments for the blade and the top clamp making it ideal for wood and plastic application. The CS36 has available options such as two handed cycle operation, infeed/outfeed tables, chromed machine table and safety interlocked cabinet doors for restricted operator access.
Options: • 8’ infeed / 8’ outfeed roller system with (2) gravity flip stops . . . • 16' infeed / 16' outfeed roller system with (2) gravity flip stops . . . • 36” x 120T carbide tipped blade (standard with saw) . . . • 36” x 160T carbide tipped blade . . . • (1) Gravity flip stop . . . • 460V electrics . . . • Double palm button actuation in lieu of foot pedal . . .
Specifications
Manufacturer | Northtech |
Model | NT-CS36L |
Condition | New |
Stock Number | NT-CS36L |
MAIN MOTOR HP | 25 HP |
VOLTAGE, FREQUENCY | 230/460 Volt 60 Hz |
PHASE | 3 Phase |
AMP REQUIREMENT | 30/60 Amp |
APPROVED ELECTRICAL PARTS | CE Approved Components |
DUAL VOLTAGE MOTORS | 230/460 Volt |
CONTROL VOLTAGE | 24 Volt |
ASSISTED START | Wye Delta |
CUTTING ENVELOPE | 1'' x 27-3/4'', 2'' x 27'', 4'' x 26'', 8'' x 23'', 12'' x 12'' |
MAX. WORKING THICKNESS | 12'' |
ARBOR RPM | 1500 RPM |
BLADE SIZE | 36'' Tungsten Carbide Tipped |
NO. OF TEETH ON BLADE | 120 Tooth |
TOOTH SPACING | 1'' |
BLADE KERF | .305'' |
DUST PORT SIZE OUTLET | (4) 5'' Ports |
ARBOR DIAMETER | 2'' |
CYCLES/MINUTE | 14 Cycles Per Minute |
HOLD DOWN STYLE | Top Clamp |

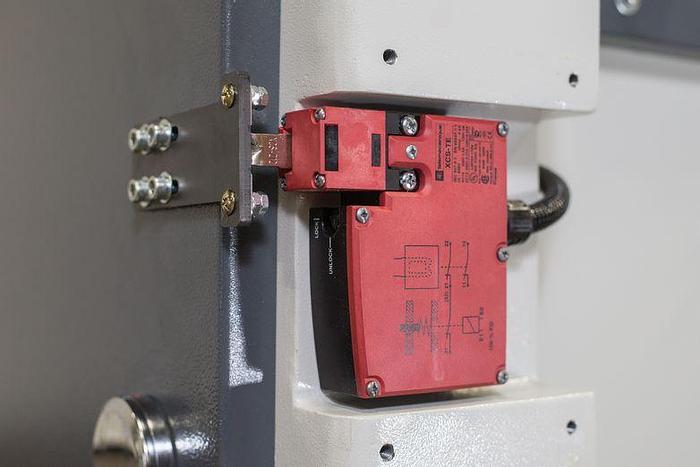

SAFETY FEATURE | Sawblade Door Safety Interlock |
GUARDING | Clear View Guard |
OPERATION STYLE | Foot Pedal |
FENCE TYPE | Adjustable |
FENCE DIMENSIONS | 6'' x 39-1/2'' |
FRAME CONSTRUCTION | 1/4'' Steel |
WORKTABLE DIMENSIONS | 34-3/4'' x 57-3/4'' |
TABLE CONSTRUCTION MATERIAL | Cast Constructions |
DECIBEL RATING | 79 Db |
NET WEIGHT | 2605 Lbs. |
GROSS WEIGHT | 2900 Lbs. |
MACHINE DIMENSIONS | 58'' x 66'' x 78'' |
PACKAGING DIMENSIONS | 62'' x 45'' x 79'' |
