Powermatic DT65 Dovetailer, 1HP 1PH 230V
Description

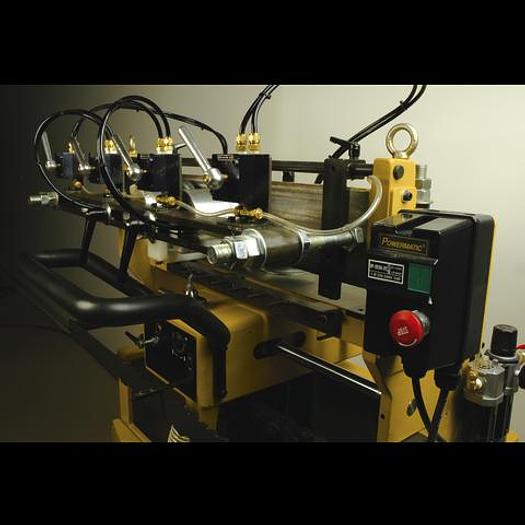

The POWERMATIC® DT65 Single Spindle Dovetailer gives quality to the most popular joints of drawer construction. It provides an affordable way to produce cleanly cut, professional dovetails that will enhance your products. The DT65 is complete with 1HP 230V 1 phase motor, pneumatic clamping, magnetic starter, carbide tipped cutter, and a four-sided template that produces dovetails on 1", 1-1/2", 2", and 2-1/2" centerlines. The use of different dovetail centerlines gives a unique custom appearance.
Features
Cast iron and steel construction for added stability and durability
Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses

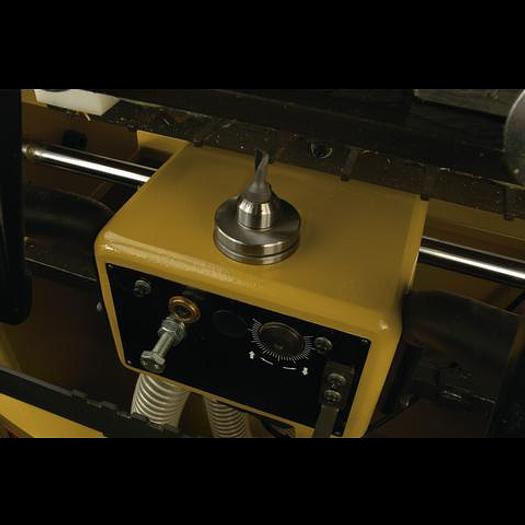

Eccentric spindle collet for resharpened cutters
Extra large soft grip handle provides positive control and comfort
Four dovetail center lines at 1", 1-1/2", 2", and 2-1/2" create a custom appearance
Material stops provide convenient positioning of the workpiece

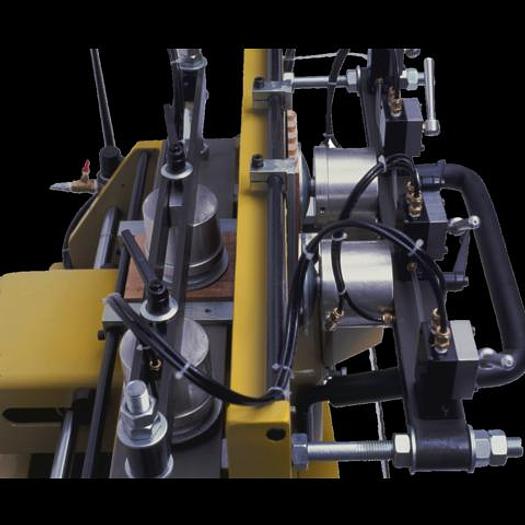

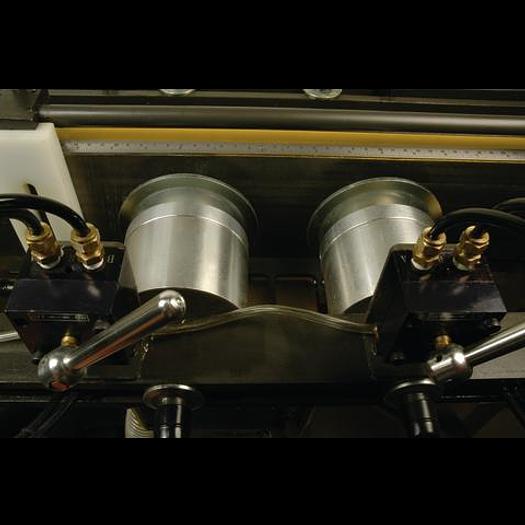

Pneumatic clamping provides quick locking and unlocking of the work piece
Spring loaded carriage makes for smooth, effortless dovetail cutting
The precision linear carriage bearings are sealed on both ends to eliminate dust buildup

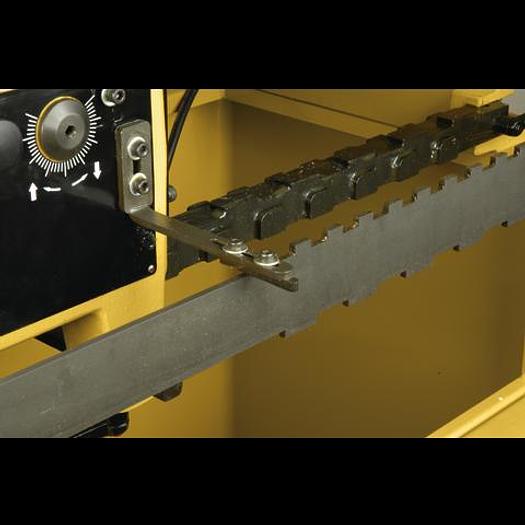

Visual stylus and template aid in guiding the carriage
Specifications
| Manufacturer | Powermatic |
| Condition | New |
| Stock Number | 1791305 |
| Model Number | DT65 |
| Minimum Work Piece Size (L x W) | 7-7/8” x 2-3/8” |
| Maximum Work Piece Size | 59” x 16-1/2” |
| Minimum Dovetail Height | 3/16”” |
| Maximum Dovetail Height | 4-3/4” |
| Minimum Front Thickness | 9/32” |
| Maximum Front Thickness | 2-3/8” |
| Minimum Side Thickness | 3/8” |
| Maximum Side Thickness | 1-3/16” |
| Number of Spindles | 1 |
| Spindle Speed | 18,500 RPM |
| Table Height | 45” |
| Center to Center Dovetail Spacing | 1”, 1-9/16”, 2” and 3-9/16” |
| Overall Dimensions (W x H x L) | 44” x 63” x 37” |
| Motor (TEFC) | 1HP, 1Ph, 230V |
| Dust Collection Port | 2-1/2” |
| Dust Collection CFM Required | 500 |
| Shipping Weight | 564 lbs |
