Northtech, NT-DC20 Dust Collector 2HP
orCall +1 (607) 678-4374
Description
NT-DC20 DUST COLLECTOR

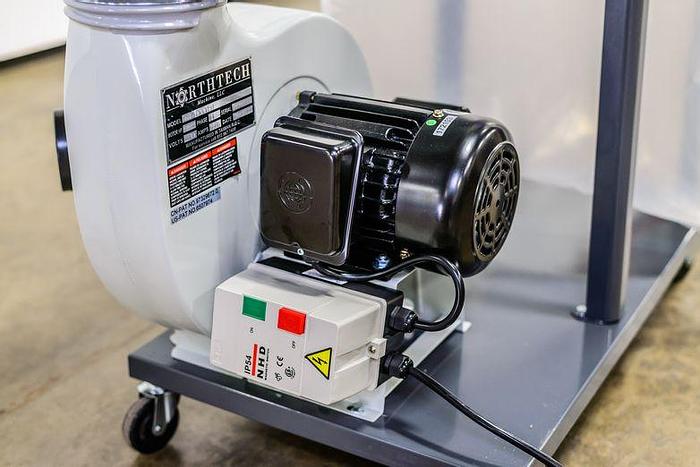

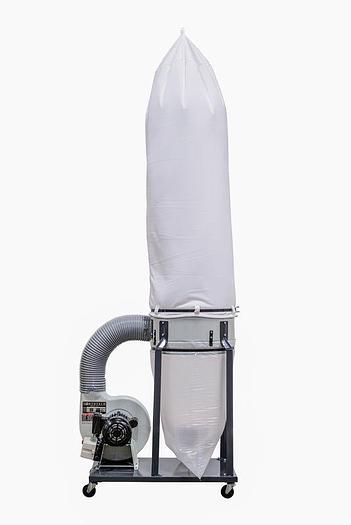

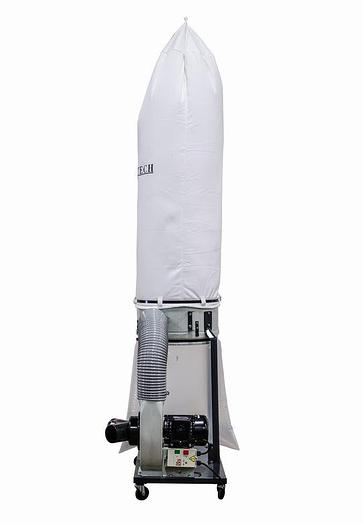

The NT DC20 is the smallest dust collector that Northtech offers. One of the few machines offered in single phase, this 2HP dust collector is a rugged portable model with a stamped steel housing, steel base and (4) casters in a compact design. While most often used as a single machine collector it can be fitted to collect from multiple small machines. The single bottom collection bag and oversized upper filter bag are a unique to Northtech dust collectors, providing a higher cloth to air ratio when compared to competitive models.
Specifications
Manufacturer | Northtech |
Model | NT-DC20 |
Condition | New |
Stock Number | NT-DC20 |
Main Motor Hp. | 2 hp. |
Direct Drive | Direct Drive |
Machine Hp. | 2 hp. |
Voltage/ Freq. | 230/460 Volt 60Hz |
Phase | 1 Phase |
Amp Requirement | 7.35 Amps |
Voltage/ Freq. | 230 Volt 60Hz |
Electronics | CE Approved Components |
Control Voltage | 220V Control Voltage |
Dust Port Out | (1) 6” |
Free Air CFM | 1300 CFM |
Frame Const. | 1/16” Steel Construction |
Upper Bags | 31” x 59” |
Lower Bags | 31” x 34” |
Decible Rating | 86 dB |
Net Weight | 102 Lbs. |
Gross Weight | 110 Lbs. |
Machine Dimensions | 37” x 26” x 104” |
Packaging Dimensions | 34” x 24” x 22” |
