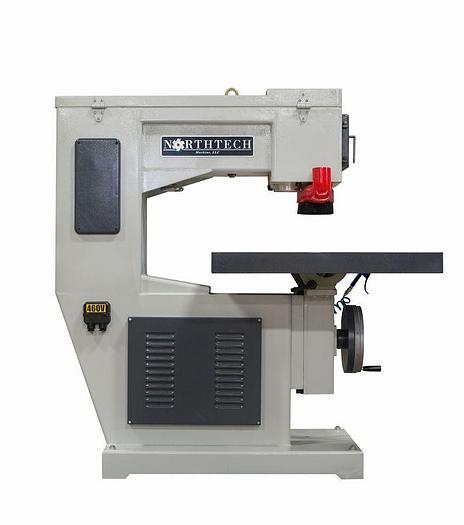

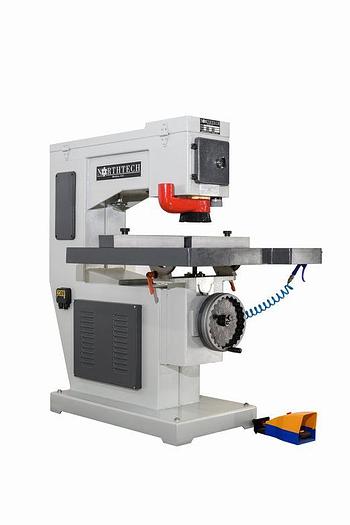

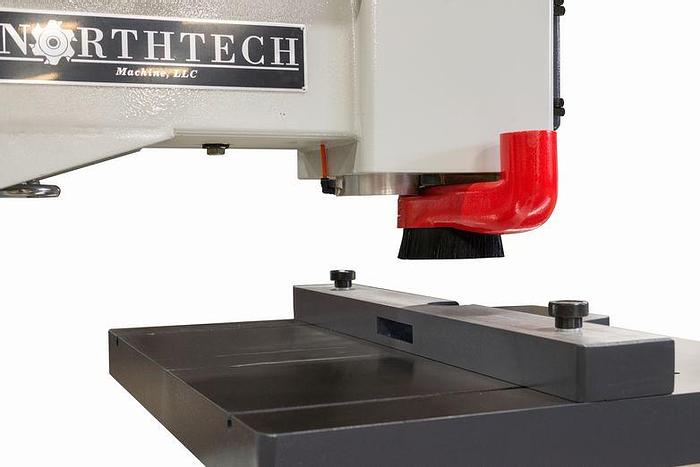

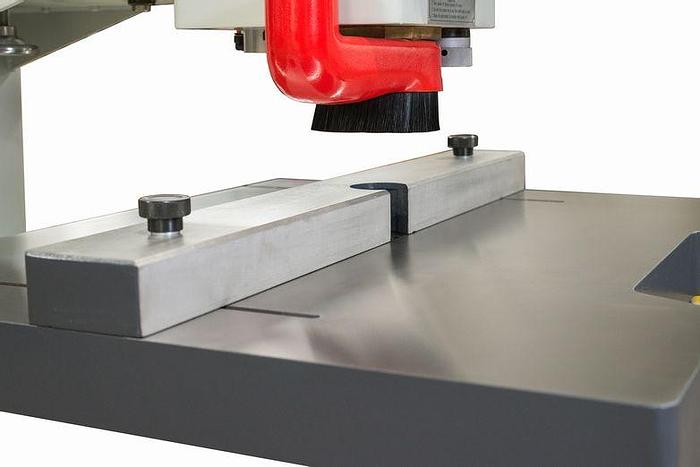

Northtech, NT 750 Pneumatic Overarm Pin Router

Northtech, NT 750 Pneumatic Overarm Pin Router

Contact us for price

Get Financing

Location:Dundee, NY

Available quantity:1

orCall +1 (607) 678-4374

Description

Northtech Overarm Pin Routers are designed with a heavy cast iron body and steel base to eliminate chatter flex. The NT-750 Overarm Pin Router has a 10HP (2) speed spindle with over 29″ of throat clearance. This paired with the heavy duty tilting steel table and multi position drill setting provide quick and versatile change overs.


Show All

Specifications

ManufacturerNorthtech
ModelNT-750
ConditionNew
MACHINE HP10 HP
VOLTAGE, FREQUENCY230/460 Volt 60HZ
PHASE3 Phase
AMP REQUIREMENT14 / 28 Amps

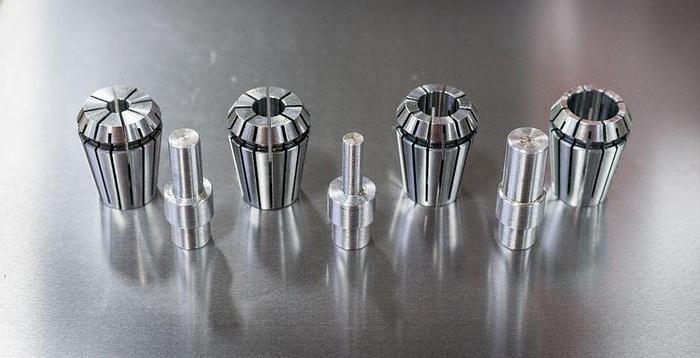

CONFIGURATION1/4'' 3/8'' 1/2'' Collet
SPINDLE RPM8100 / 16300 RPM (2) Speed
ELEVATION STYLEManual Wheel Adjustment
ELEVATION SYSTEMJack Screw / Linear Guides
APPROVED ELECTRICAL PARTSCE Approved Components
CONTROL VOLTAGE230 Volt
THROAT CAPACITY29-1/2''
MIN. WORKING THICKNESS1-1/2'' Collet to Table
MAX. WORKING THICKNESS7-1/2'' Collet to Table
VERTICAL TRAVEL7-1/2''
DUST COLLECTION REQUIREMENT245 CFM @ Point of Extraction
DUST PORT SIZE OUTLET(1) 3'' Port

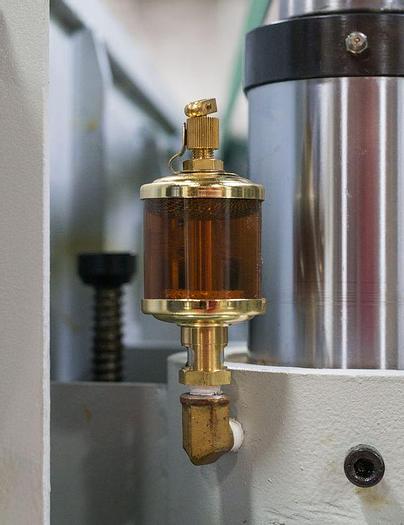

FLR INCLUDEDFilter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT1/4'' Line @ 90 PSI
EMERGENCY STOPPush Button
GUARDINGHigh Visibility Guarding
OPERATION STYLEPneumatic Foot Pedal
FENCE TYPEAdjustable Fence
FENCE DIMENSIONS2-1/2'' x 40''
ADJUSTABLE STROKE3 Adjustable Settings
TILT-ABLE45 Degrees
FRAME CONSTRUCTIONCast Construction
WORKTABLE DIMENSIONS39-3/4'' x 35-1/2''
TABLE CONSTRUCTION MATERIALCast
DECIBEL RATING73 Db
NET WEIGHT1462 Lbs.
GROSS WEIGHT1647 lbs.
MACHINE DIMENSIONS40'' x 62'' x 64''
PACKAGING DIMENSIONS44'' x 66'' x 71''
