Laguna, J|16 16'' Jointer
orCall +1 (607) 678-4374
Description

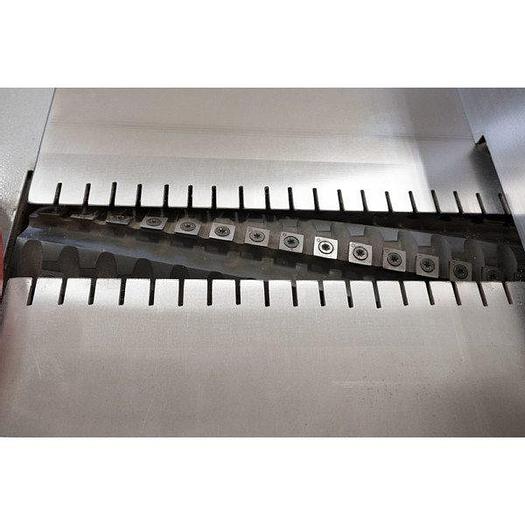

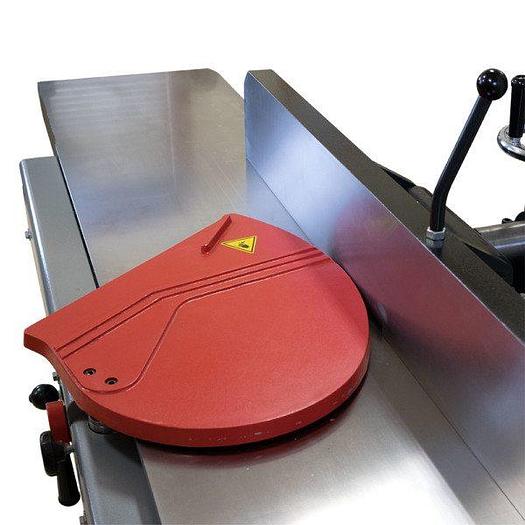

The J|16 Jointer is the true heavyweight of jointers. Our 16'' version features a total length of over 8 feet. The heavy cast-iron tables are supported by parallelogram adjusters and controlled through precision hand-wheel adjusters. The Laguna ShearTec cutterhead is equipped with German carbide insert knives for maximum durability and quick replacement. The fence is a heavy casting supported by a large diameter shaft with rack and pinion movement for smooth, repeatable accuracy. The overhead control panel allows for quick, easy operation. The swing-away guard is easily adjustable and removable for knife replacements.
Specifications
Manufacturer | Laguna |
Model | J|16 |
Condition | New |
Stock Number | MJO6405-0800 |
Table Lenght | 98'' |
Table Width | 16'' |
Table Height | 31-1/2'' |
Parallelogram Adjustments | Yes |
Jointer Fence Tilt | 90-45 Degrees |
Motor | 5HP, 220V, 1 Phase/5HP,220V, 3 Phase |
Cutterhead Speed | 5000 RPM |
Cutterhead Diameter | 110mm |
Cutterhead | Laguna ShearTec I |
Cast Iron Body | Yes |
Over Head Controls | Yes |
Rack & Pinion Fence | Yes |
Weight | 1685 lbs |
