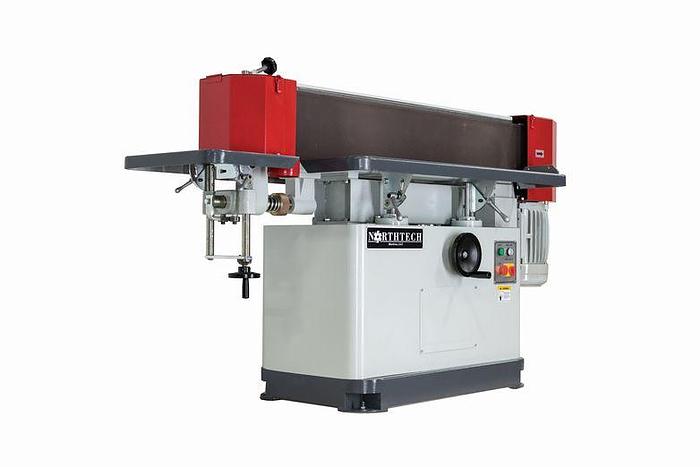

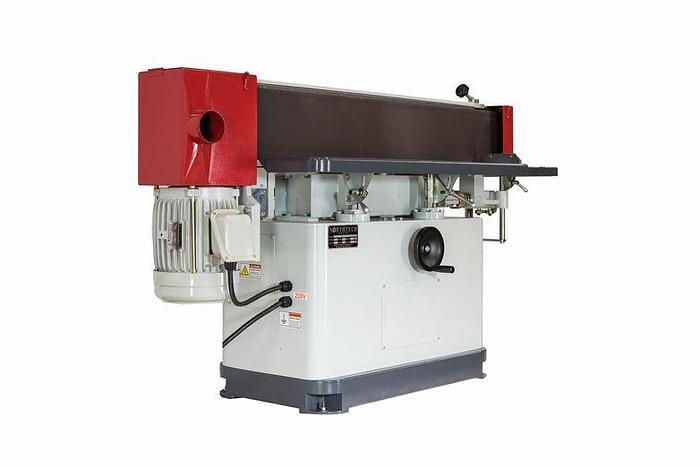

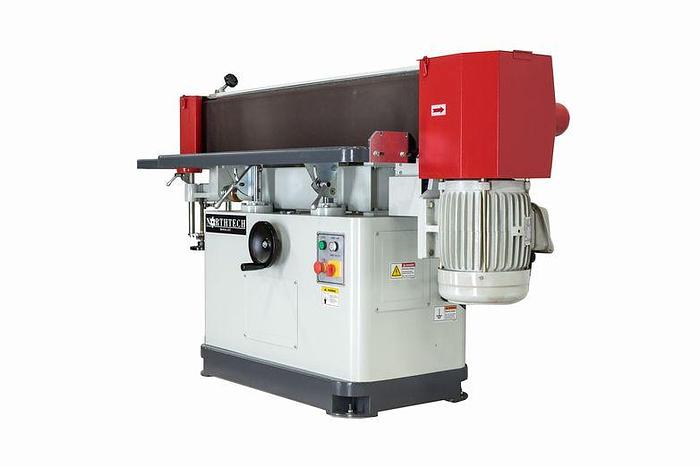

Northtech NT-ES948DE Edge Sander
orCall +1 (607) 678-4374
Description

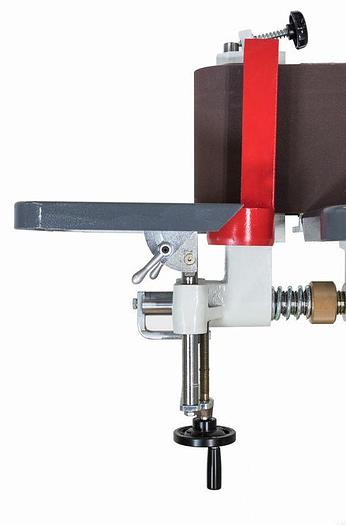

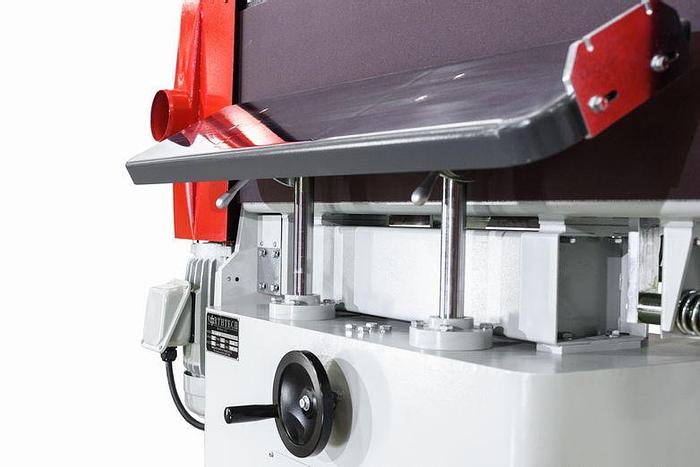

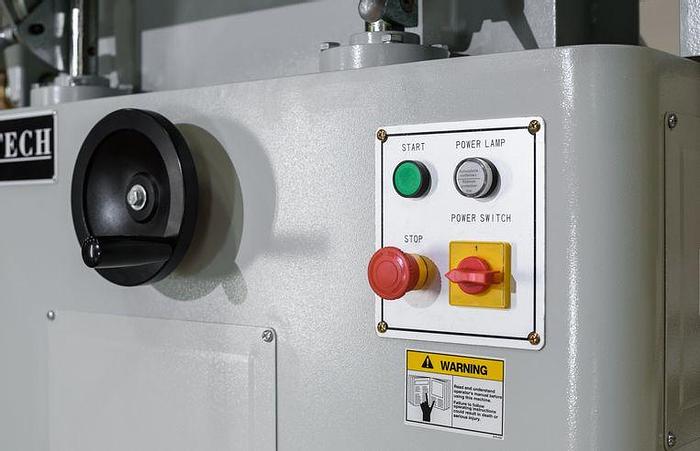

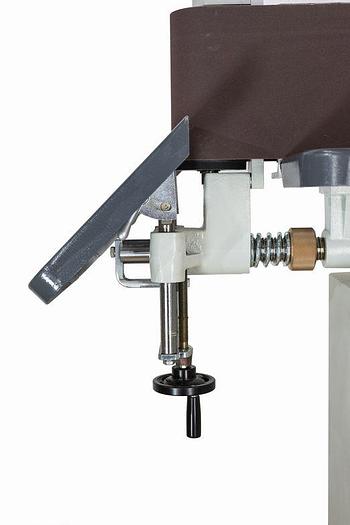

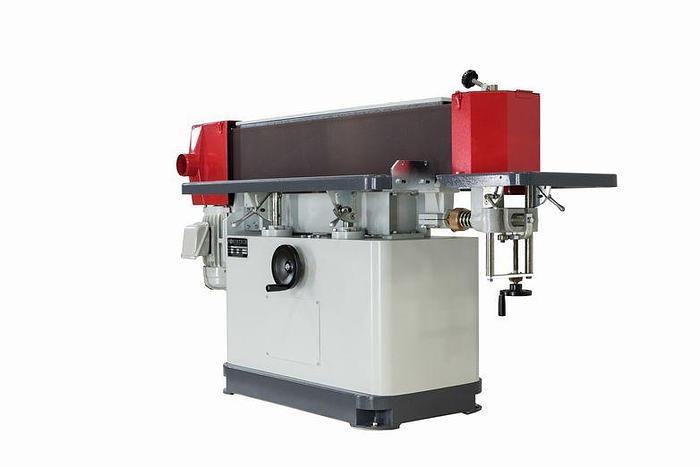

Northtech offers a large family of industrial-grade edge sanders. The NT-ES948DE falls into the middle of the family of edge sanders with a 9″x48″ sanding area on both sides of the machine along with an end table for smaller and contoured sanding work. Edge Sanders with double side tables can have a centrally located control station that allows for machine start/stop from both sides. Chrome side tables are tiltable to 45 degrees and are on a gear driven elevation system making it easy to take advantage of full use of the sanding belts on smaller parts. The electronic oscillation and heavy duty cast iron frame provide a vibration free base and heavy stock removal capability.
Specifications
Manufacturer | Northtech |
Model | NT-ES948DE |
Condition | New |
Stock Number | NT-ES948DE |

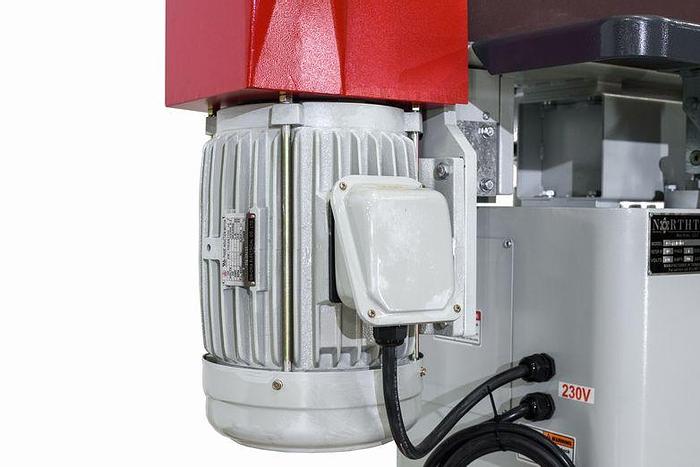

MACHINE HP | 7.5 HP |
DIRECT DRIVE (MOTOR) | Motor to 7'' x 9-5/8'' Pulley |
VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
PHASE | 3 Phase |
AMP REQUIREMENT | 22/11 Amps |
ELEVATION STYLE | Manual Wheel Adjustment |
ELEVATION SYSTEM | (2) Post Jack Screw |
APPROVED ELECTRICAL PARTS | CE Approved Components |
DUAL VOLTAGE MOTORS | 230/460 Volt |
CONTROL VOLTAGE | 24 Volt Control Voltage |
MAX. WORKING LENGTH | 48'' |
MAX. WORKING WIDTH | 9'' |
SANDPAPER SIZE | 9'' x 142'' |
PLATEN SPECIFICATIONS | 9'' x 48'' |
1st BELT SPEED | 3300 FPM |
OSCILLATION STYLE | Gear Box with Cam |
OSCILLATION RATE | 30 Cycles/Minute |
OSCILLATION TRAVEL | 1/2'' |

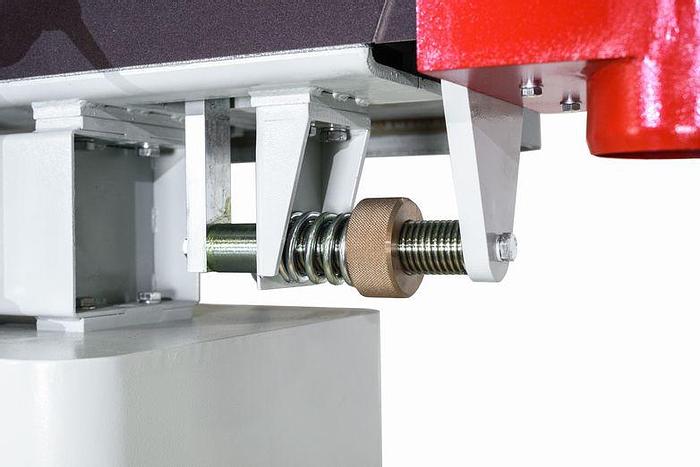

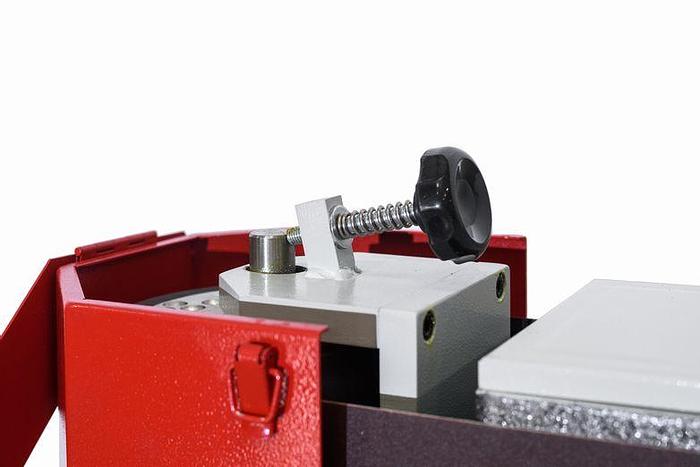

TRACKING STYLE | Manual Knob Adjustment |
TENSION STYLE | Manual Knob Adjustment |
VERTICAL TRAVEL | 5-3/4'' Table Adjustment |
DUST COLLECTION REQUIREMENT | 436 CFM @ Extraction Points |
DUST PORT SIZE OUTLET | 2) 4'' |
EMERGENCY STOP | Push Button |
GUARDING | High Visibility Guarding |
FENCE TYPE | Jig Fence |
TILT-ABLE | 0-45 Degrees |
FRAME CONSTRUCTION | 1/4'' Steel |
END TABLE DIMENSIONS | 13-3/4'' x 17-3/4'' |
WORKTABLE DIMENSIONS | 10-1/2'' x 48'' |
TABLE CONSTRUCTION MATERIAL | Chromed Steel |
DECIBEL RATING | 78 dB |
NET WEIGHT | 910 Lbs. |
GROSS WEIGHT | 1104 Lbs. |
MACHINE DIMENSIONS | 79'' x 29'' x 52'' |
PACKAGING DIMENSIONS | 83'' x 34'' x 53'' |
