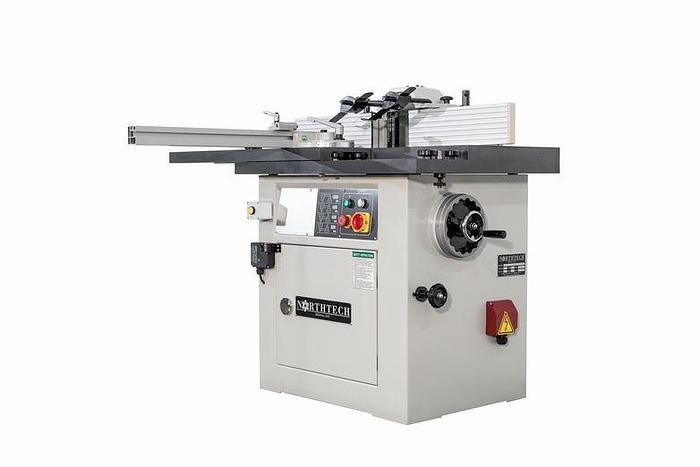

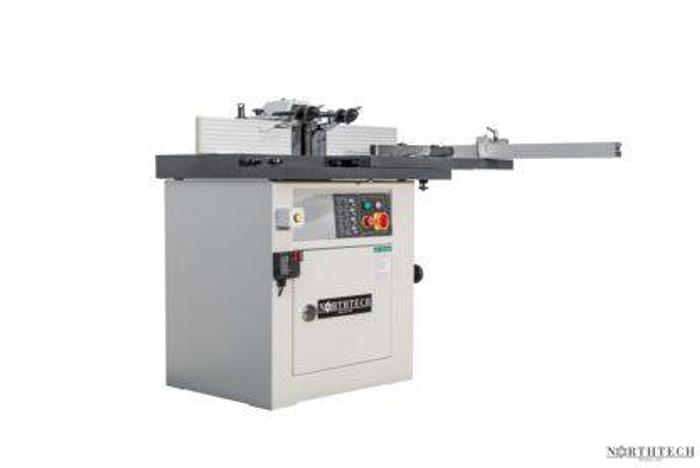

Northtech, NT-525S Sliding Table Shaper
orCall +1 (607) 678-4374
Description
The 525S shaper is a powerful strong, heavy duty built shaper with a sliding table. The 525S series features a large stable base, quick adjust spindle elevation control, and lockable sliding table. The oversized precision ground table on solid steel cabinet provides stable vibration free milling. The 5HP 4-speed interchangeable spindle provides flexibility for customer specific applications.
Specifications
| Manufacturer | Northtech |
| Model | NT-525S |
| Condition | New |
| Stock Number | NT-525S |
| MACHINE HP | 5 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 13 / 6.5 Amps |
| 1ST SPINDLE | 1-1/4'' x 6'' |
| SPINDLE LENGTH | 6'' |
| SPINDLE DIAMETER | 1-1/4'' |

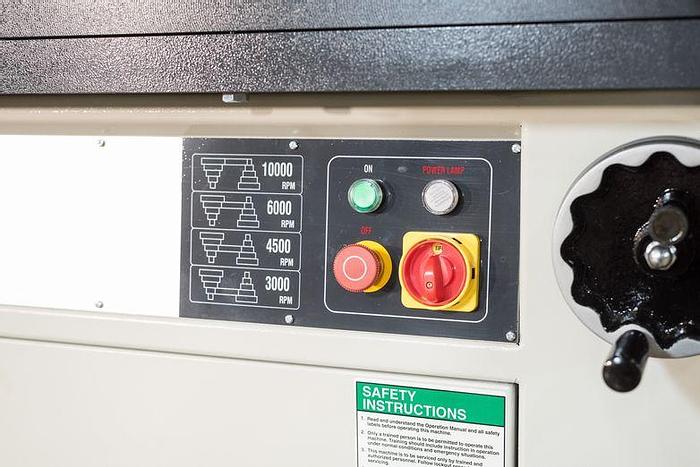

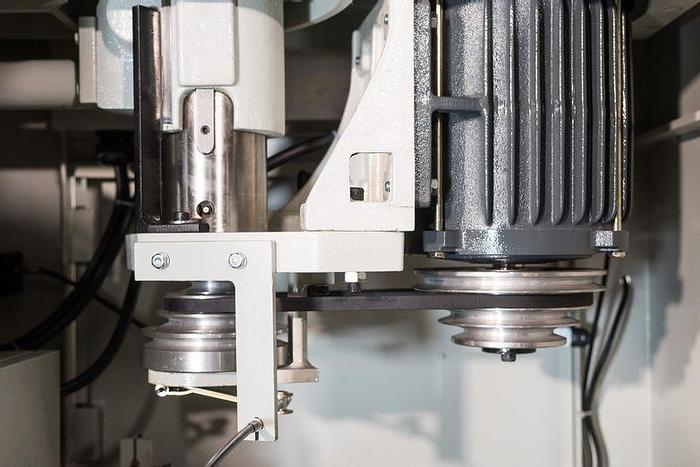

| SPINDLE RPM | 3000, 4000, 6000, 9800 RPM |
| UNDER THE NUT CAPACITY | 5'' |
| ELEVATION STYLE | Manual Wheel Adjustment |
| ELEVATION SYSTEM | Quill Housing / Jack Screw |
| APPROVED ELECTRICAL PARTS | CE Approved Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 110 Volt |
| PASS-LINE | 34-3/8'' |
| MAX. WORKING THICKNESS | 5'' |
| VERTICAL TRAVEL | 6'' On Spindle |
| DUST COLLECTION REQUIREMENT | 436 CFM @ Extraction Points |
| DUST PORT SIZE OUTLET | (1) 4'' |
| EMERGENCY STOP | (1) Front |
| GUARDING | Fence Assembly |
| OPERATION STYLE | Manual |

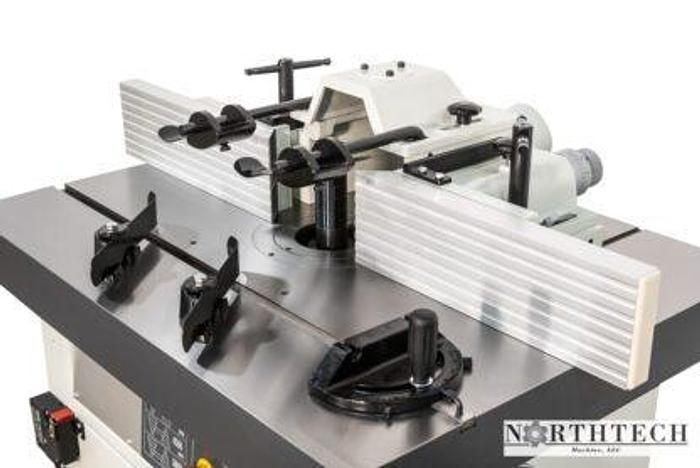

| FENCE DIMENSIONS | (2) 5'' x 17'' Fences |
| MICRO FENCE | Micro Adjustment |
| FRAME CONSTRUCTION | Steel Construction |
| WORKTABLE DIMENSIONS | 35-1/2'' x 27-1/2'' |
| TABLE CONSTRUCTION MATERIAL | Machined Cast Iron |
| DECIBEL RATING | 70 dB |
| NET WEIGHT | 762 Lbs. |
| GROSS WEIGHT | 850 Lbs. |
| MACHINE DIMENSIONS | 36'' x 29'' x 43'' |
| PACKAGING DIMENSIONS | 51'' x 32'' x 49'' |
